The Gardner Denver ESG 355 kW Power Screw Air Compressor from the ESD/ESG series is engineered for continuous 24-hour use in critical industrial processes. With a capacity ranging from 36.3 to 73.6 m³/min and pressures up to 13 bar, this compressor is designed for utmost performance and efficiency. Features include versatile heat recovery systems, low energy consumption, compact design, advanced compressor control, and reliable electric motors, ensuring optimal operation and durability. Let Gardner Denver enhance your industrial air compression needs with this powerhouse compressor.
Product Specifications
Advanced Compressor Control The Advantages Of Digipilot Control
The DigiPilot compressor control ensures accurate and reliable control. DigiPilots sophisticated microprocessor controller facilitates efficient operation and pressure control through its simple user-interface and interactive instrument panel. Warning lights indicate when the oil inlet filters, oil separation elements or cooling system require service operations - enabling proactive service planning.Full load/off load control with automatic start and stop.Possibility for stepless throttle control from 0 to 100%Easy to adapt into a multi-compressor system.Multi-lingual user interface.
Auxiliary Equipment
Multiport multi-compressor - controller for several compressorsAir dryersCompressed air after treatment line
Build For Continuous Use In Demanding Applications
The ESD/ESG series compressors are designed for continuous operation and applications that require absolute performance and reliabilityContinuous 24-hour use and absolute uptime are critical factors in heavy industry applications.In Finland alone, Gardner Denver™ supplies the compressed air for paper mills that produce millions of tons of paper and board annually.Following the example set by the Finnish paper industry, many paper mills and process plants in Europe and in other areas use the Gardner Denver™ ESD series compressorsMany European ski resorts have chosen Gardner Denver™'s proven reliability in harsh conditionsThe ESD compressors are a key part of processes worldwide in automotive and safety glass manufacturing, bottle manufacturing, steel mills etc.Oil and gas industry in the Middle East depends in the dependable Gardner Denver™ ESD compressors.
Compact Design
Gardner Denver's ESD and ESG series compressors are designed to save space. The 200-500 kW compressors are available either with the standard enclosure or as an open frame model.
Easy Installation
The compact and powerful ESD/ESG series is easy to install on level surfaces and does not require extra foundations or supports.
Efficient Oil Separation Cleaner Air
For years Gardner Denver™ has set the standards in clean air and oil separation efficiency. Its innovative oil separation system is based on a multi-stage process of thorough cyclone separation followed by oil removal in separation elements.Superior separation efficiencies with residual oil content as low as 2 mg/m³.

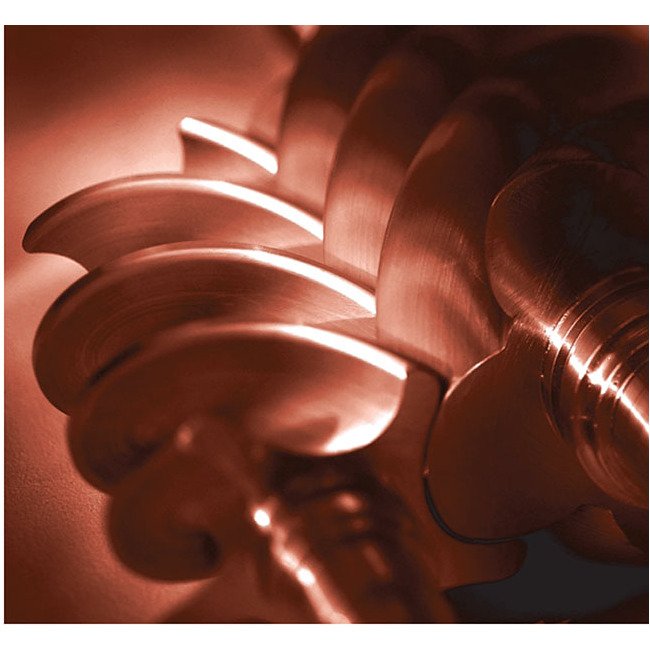

Gardner Denver Screw Element
The ESD/ESG series features a large screw element that improves efficiency, maximizes reliability, saves energy and reduces wear and tear by operating at low RPMs.
Heavy Duty Construction
Designed for maximum efficiency and reliability.Gardner Denver™ uses advanced technology to carefully construct industrial compressors to withstand the most demanding industrial applications.Each screw element is carefully tested during manufacturing.Each unit is test run simulating real life conditions.Electric motors and other components meet the highest European and other standards.

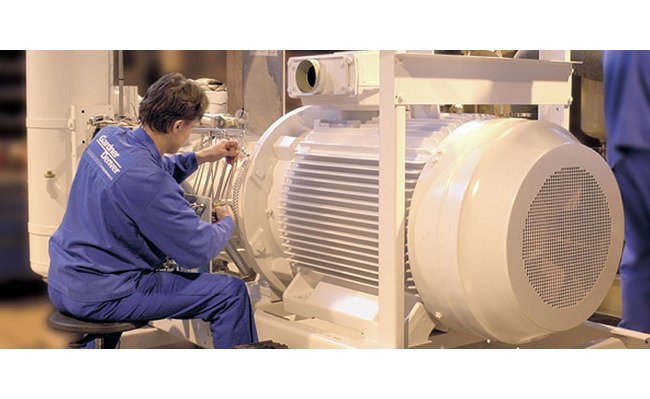

High Quality Electric Motors
Gardner Denver™ uses the highest quality electric motors available, to ensure high quality and premium efficiency.
Low Energy Consumption
Gardner Denver™ strives to maintain high performance levels while minimizing energy usage through:Large air endsPremium-efficiency electric motorsAccurate and reliable DigiPilot control systemVersatile heat recovery
Low Noise Construction
Compressor noise is reduced through low rotation speed, an effectively muffled air cooling fan and sophisticated design.
More Weight On Your Benefits
Heavy-duty constructionClean air and efficient oil separation
Optional Extras
Additional inlet silencersLow pressure models (down to 3 bar)Vacuum pump modelsSpecial voltages
Reliable And Energy Efficient
The ESD series models are direct driven, without gearing, available for applications with specific capacities and pressures, where even minimal energy losses caused by gearbox or belt transmissions want to be avoided. The ESG models feature a gearbox transmission to cover wider pressure and capacity ranges.
Simple Maintenance
The ESD/ESG series is easy to service. Large double doors provide easy access to all service points. All maintenance can be completed from the front of the compressor.

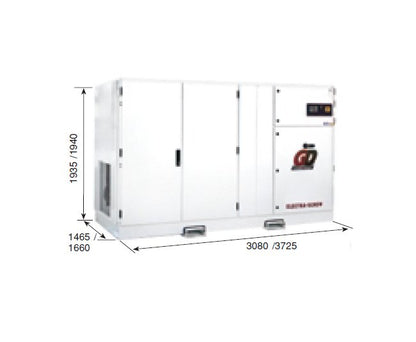

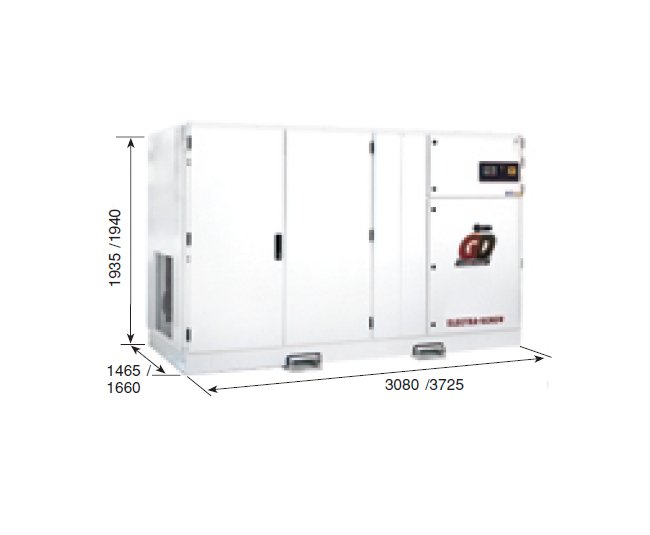

Specifications Frequency
50 Hz
Specifications Height
1940 mm
Specifications Length
3725 mm
Specifications Series
ESG
Specifications Width
1660 mm
Standard Equipment
Air-cooled (200-315 kW) or water-cooled (all models) versionsAir inlet filterFully automatic capacity control: full load, off-load, idle run and start/stop.DigiPilot microprocessor controller: interactive instrument panel with multi-language information systemY/D starterMain switchTEFC electric motors: IP55, F-class insulation, thermistor protectionModulating control with the inlet valveStop/start buttonsEmergency stopSafety devices for:High motor temperatureFan motor overloadHigh compressor temperatureHigh compressor pressureAlarms for:Oil filterOil changeInlet filterOil separator elementWeek clockRemote controlRS-485 communication lineAutomatic re-start after power failureControl for oil separator-pressure differenceRunning condition indicators:PressureTemperatureHour meter: total running hours, full loadSafety valveFan motor and cooling fan (air cooled models)Sound absorbing enclosureAfter-coolerWater trapAutomatic timer-controlled water drainLarge and efficient air end
Technical Data Capacity At Nominal Pressure And 10 Bar Maximum P
51.2 m³/min | 1808 ft³/min
Technical Data Capacity At Nominal Pressure And 13 Bar Maximum P
44.8 m³/min | 1582 ft³/min
Technical Data Capacity At Nominal Pressure And 8 Bar Maximum Pr
56.8 m³/min | 2006 ft³/min
Technical Data Compressed Air Outlet
DN 150 (DN 200)
Technical Data Maximum Pressure
8 bar | 10 bar | 13 bar | 115 psig | 145 psig | 190 psig
Technical Data Motor Power At 50 Hz
355 kW | 475 hp
Technical Data Net Weight
5000 kg
The Advantages Of Versatile Heat Recovery Air Cooling Power
0 to 315 kW
The Advantages Of Versatile Heat Recovery Heat Recovery Systems
Gardner Denver™ offers a wide range of heat recovery systems to meet your application needs :EWNAGardner Denver™'s standard water cooling systemAn after cooler and oil cooler connected in series as a standard.EANAStandard air-cooled compressor with separate air moduleAll ducts required for efficient heat recovery and utilization are easy to arrange.Flexible air module placement, 1 m from the compressor or further with an additional pump.The PRE systemDesigned for water-cooled compressorsCooling water is initially directed through the after-cooler and then it absorbs thermal energy from a large oil/water heat exchanger.The DIR SystemIdeal for closed systems with inlet water temperatures up to +50 ºCSeparate water-cooling supply is required for the after-cooler.The +W SystemHeat recovery system for air-cooled compressors.Transfers the heat produced in compression into water.
The Advantages Of Versatile Heat Recovery Ideal Inlet Water Temp
0 to +50 ºC
The Advantages Of Versatile Heat Recovery Maximum Outlet Tempera
+75 ºC
The Advantages Of Versatile Heat Recovery Standard Maximum Outle
70 ºC
The Advantages Of Versatile Heat Recovery Water Inlet Te
15 to 35 ºC
The Advantages Of Versatile Heat Recovery Water Outlet T
65 to 75 ºC
The Advantages Of Versatile Heat Recovery Versatile Heat Recover
Gardner Denver™ utilizes heat recovery systems to maximize efficiency by recovering energy generated during compressed air production.As much as 90% of all energy used can be recovered and utilized.Thermostatic control maintains desired temperature in the compressor.Heat exchangers are available in different materials for difficult conditions.Cooling water circuit can be designed specifically to customers needs.
The Advantages Of Versatile Heat Recovery Water Cooling Power
0 to 500 kW
