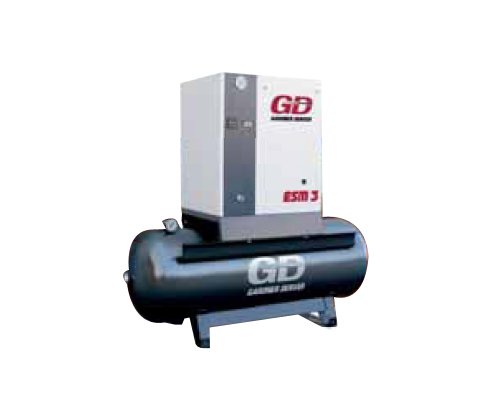

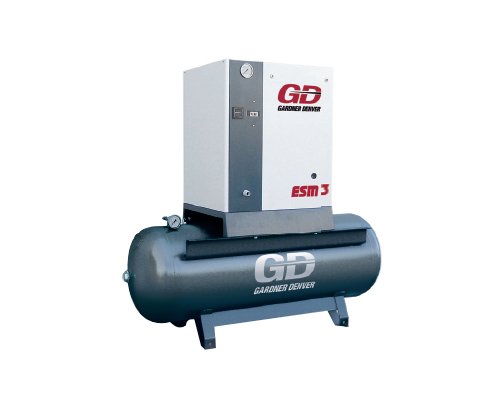

Gardner Denver ESM 3 Screw Air Compressor
Gardner Denver ESM 3 Screw Air Compressor
SKU:NEW-189ae4
Enhance operations with Gardner Denver's ESM 3 Screw Air Compressor, offering flexibility, efficiency, and reliable performance. ISO-certified with low noise levels.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Gardner Denver ESM 3 Screw Air Compressor
$4,999.99
Quantity: 1
Claim Your Seller Account
Gardner Denver ESM 3 Screw Air Compressor
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gardner Denver ESM 3 Screw Air Compressor from the ESM 2-5 Series offers maximum flexibility and efficiency for diverse installation needs. With a compact design and user-friendly features, this compressor ensures quick setup and easy operation, minimizing maintenance costs. Equipped with industry-leading standards such as ISO certifications and environmentally friendly refrigerants, it meets the stringent requirements of government and institutional buyers, providing reliable performance and low noise levels. Enhance your operations with Gardner Denver's ESM 3 Screw Air Compressor.
Product Specifications
Easy To Use
Thanks to user-friendly design of the ESM 2 - 5 range, the compressors are ready for plug & play operation. Maintenance is made easy by the removable side doors providing you with quick and easy access to all service points. The simple design minimizes the number of moving parts and as a result reliability is increased and maintenance costs reduced.The compressors are belt driven, designed for the highest performance - providing hours of reliable operation.Thanks to the low noise level of the ESM 2 - 5 range, the compressor can be installed at the point of use - requiring no additional cost for a separate compressor room or expensive pipework.
Note
For additional information please contact Gardner Denver™ or your local representative.
Optional Equipment
Prefilter and micro filter combinationTimed or float drains for receiver mounted unitsRefrigerant dryer ESM 2-5Guaranteed best performance combined with low pressure lossesDigital controller displaying:Dew point indicationAdditional energy saving modeMaintenance displayFault memory
Optional Maximum Flexibility
Compressor base mountedCompressor mounted on a tankComplete compressor station includes compressor and refrigerant dryer, both mounted on a tank
Specifications Dew Point Temperature At 25 C Ambient Temperature
3 ºC
Specifications Environmentally Friendly Refrigerant
R134a
Specifications Industry Standardscertifications
ISO 1217 | ISO 2151 | ISO 7183
Specifications Series
ESM
Standard Equipment
DOL startingOverload relay motor protectionStart/Stop control with pressure switchMain On/Off switchElectric motors, IP55, F-class insulationOil level monitoring, sight glassBelt transmissionSafety devices for:Motor over temperatureCompressor over temperature, trip at 110 ºCCompressor over pressure (safety valve)Running condition indicators:PressureHour-meterEpoxy powder coated enclosureOil thermostatFactory filled with AEON® lubricant
Technical Data Esm 2 5 Maximum Pressure
10 bar | 145 psig
Technical Data Esm 2 5 Motor Power
3 kW | 4 hp
Technical Data Esm 2 5 Net Weight
100 kg
Technical Data Esm 2 5 Noise Level
61 dBA
Technical Data Esm 2 5 Standard Compressor Height
840 mm
Technical Data Esm 2 5 Standard Compressor Length
620 mm
Technical Data Esm 2 5 Standard Compressor Width
600 mm
Technical Data Esm 2 5 Tolerance
±3 dBA
Technical Data Esm 2 5 Volume Flow
0.36 m³/min | 13 ft³/min

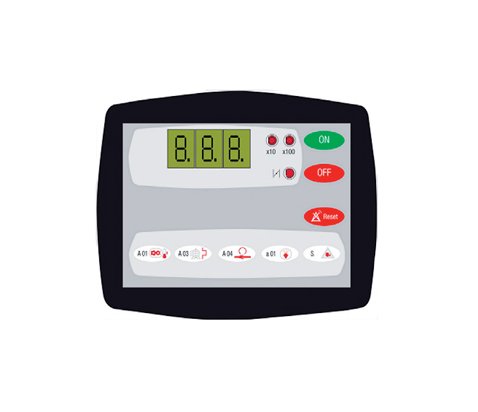

User Friendly Control System
The Start/Stop operation ensures no idling time and no idling energy costs. The ESM 2-5 as standard are equipped with Start/Stop control and direct online starting. Hour meter and pressure gage are also included.With star delta the compressors can be set to unloaded running with timed stop adjustable between 0 and 3 minutes.
