Experience unmatched efficiency and reliability with the Gardner Denver ESM 37 F Fixed Speed Screw Air Compressor. Designed to meet the rigorous demands of continuous industrial use, this compressor features Gardner Denver's advanced technology and engineering. With precise control, optimum cooling, and easy maintenance, the ESM 37 F ensures maximum productivity and energy savings, all while meeting CE and ISO 7183 standards.
Product Specifications
Additional Information
Rely on GD to provide the perfect fit.The ESM 30-132 series of air compressors features the latest in technology, innovation and engineering.Low dBA level, small footprint, high efficiency and easy service are standard benefits with the ESM Series.Designed and manufactured in accordance with ISO standards, the VS series meets the industry's expectations of the highest quality standards.
Advanced Design
The ESM 30-132 series is specifically designed to meet the demands for continuous 24-hour use and absolute uptime, as required in critical industrial processes.Innovative design delivers great benefits:EfficiencyLow Noise OperationAdvanced Control SystemModern Cooling SystemEasy MaintenanceThousands of our air-ends are in operation world-wide, proving that the heart of the ESM 30-132 series can stand the test of time.

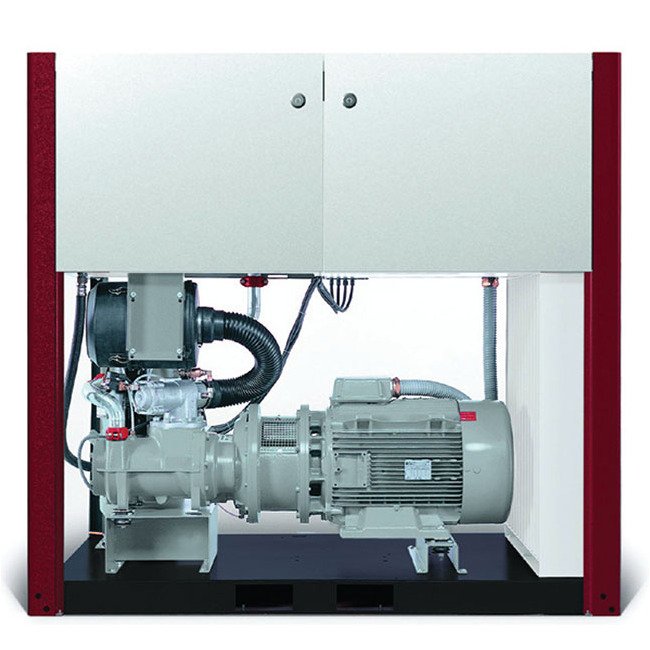

A Perfectly Matched Design Of Motor Direct Drive And Air End
The efficient motor/drive/air-end combination are designed to reduce the specific power, which benefits you in the form of energy cost savings. Additionally, Gardner Denver™ is using TEFC IP55, high efficiency motors.

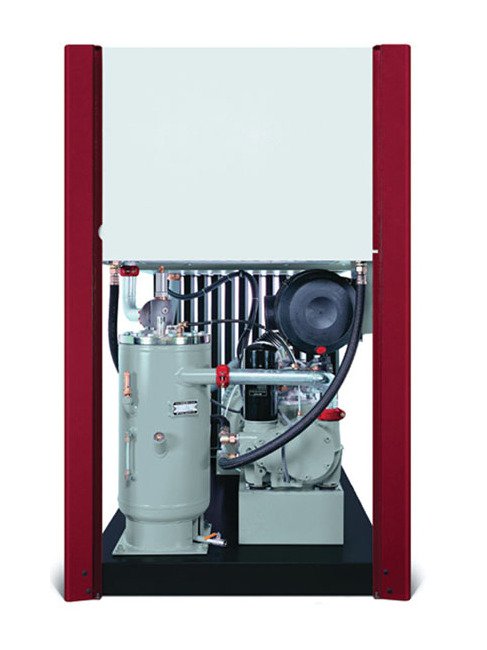

Easy Servicing
The design of these packages assures the service points are readily accessible. The enclosure side doors are hinged and removable to allow complete access to all service points. The reduced number of moving parts also lowers maintenance costs."The use of genuine GD parts and lubricants will maximize your compress or's life and efficiency."

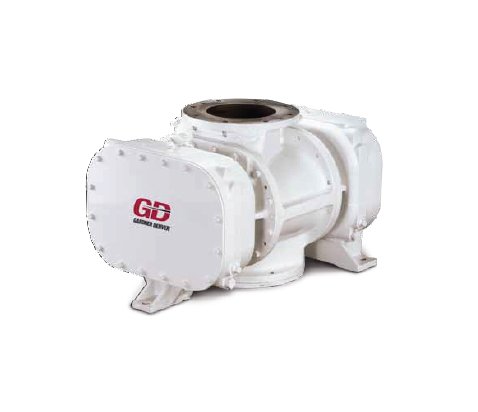

Efficient Gardner Denver Air Ends
Without an efficient, durable air-end, a unique compressor design means nothing. That's why Gardner Denver™ designs and manufactures this critical component to exacting standards.
Everything Under Control Gd Pilot Ts Touch Screen Controller
The "GD Pilot TS" with its high resolution touch screen display is extremely user friendly and self-explanatory. All functions are clearly structured in five main menus and are intuitively visual.The multilingual "GD Pilot TS" control system ensures reliable operation and protects your investment by continuously monitoring the operational parameters, which is essential for reducing your running costs.With the ability to display detailed system analysis in the form of trend diagrams and graphs, operating parameters can be precisely set to maximize efficiency.Line/network pressureMotor speed (variable speed)On load hours/total hours run & average volume flowWeekly average volume flow
Features And Functions
Home page-instant overview of the compressor statusReal time clock-allows pre-setting of compressor starting/stoppingSecond pressure settingIntegrated cooling and dryer controlFault history log-for in-depth analysisRemote control via programmable inputsAuto restart after power failureOptional base load sequencingOptional SD Card-stores several run characteristics
Genuine Gd Parts The Perfect Fit For Maximum Performance And Bes
The vast experience and knowledge of GD's highly qualified air specialists, coupled with the use of genuine GD parts and quality consumables that are guaranteed to perform, ensures the best possible efficiency from your GD air system.Through our global network of authorized distributors, Gardner Denver™ provides world class maintenance and service support with a team of highly trained and skilled compressor service technicians. From emergency call outs to scheduled preventative maintenance and remote monitoring of compressed air operating parameters, we can tailor a compressed air service package to meet the needs of any application - ensuring our customers have the best possible support around the clock, seven days a week.
Note
For additional information please contact Gardner Denver™ or your local representative.
Optimized Cooling System
High efficiency radial fanThe radial fan concept represents quiet and efficient operation. Additionally, peripheral speed means low noise and the power consumption is up to 50 percent lower than a comparable axial fan. Another advantage is the high residual thrust (stable curve) that allows the use of exhaust ducting with a pressure drop of up to 130 Pa. Also, the oversized after coolers used in the ESM 30-132 series ensure an optimum cooling and discharge temperature.
Reduced Wear And Tear Thanks To Wide Regulation Range
Superb flexibility comes as standard with the VS series.With a wide capacity range, the VS series features the market's quickest and widest response to air demand changes.Your benefits during varying air demand:Reduced wear and tear on inlet and discharge valve componentsNo shock bearing loads for the air-endMinimized pulsating load (full load pressure/off load pressure) for all pressurized components within compressor package (oil receiver, hoses etc.)Tried and tested inverter conceptIntegrated in the electric cabinetProtected from dust by replaceable inlet filtersMaximum reliability by optimized cooling systemEnsures high availability and long life time
Reduce Your Carbon Footprint And Save Even More Money With Our O

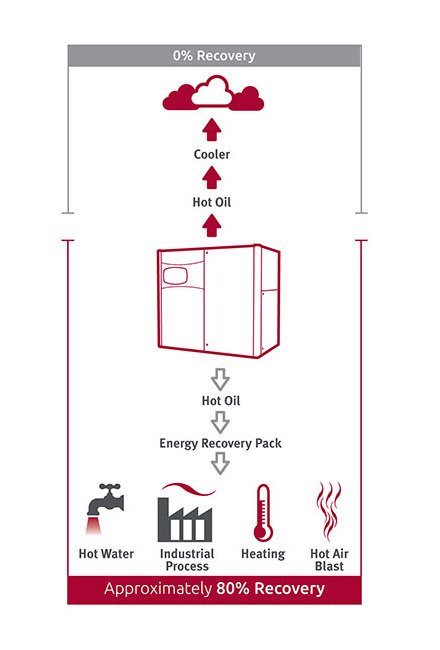

Re-use heat for industrial processes, heating systems, hot water and hot air!Gardner Denver™ utilizes heat recovery systems to maximize efficiency by recovering energy generated during compressed air production.As much as 90% of all energy used can be recovered and utilizedThermostatic control maintains desired temperature in the compressorAvailable factory fitted or as a retrofit kit
Save Even More Energy With Our Unique Compressed Air Management
GD Connect 12 sequencer with up to 35% energy savings!Easy to installImproved performance and efficiencySimple to operateDetailed management reportsCompressor systems are typically comprised of multiple compressors delivering air to a common header. The combined capacity of these machines is generally greater than the maximum site demand. To ensure the system is operated to the highest levels of efficiency, the "GD Connect 12" management system is essential.The GD Connect 12 can intelligently control up to 12 fixed speed or variable speed compressors.Intelligently selecting the right combination of compressorsIt reduces energy consumption by tightening the network pressure to the smallest possible bandEach 1 bar decrease potentially results in a 6% reduction in energy consumption and as much as 25% decrease in air leakage losses.Keeping off load running to the absolute minimum
Small Installation Footprint And Integrated Dryer Concept
Thanks to the advanced compressor concept, the required footprint is reduced to a minimum.The optional integrated refrigerant dryer reduces both extra installations and the required floor space, making the compressor easier to install.Optimized coolingLow installation costsSame dimensions withintegrated dryer option
Specifications Industry Standardscertifications
CE | ISO 7183
Specifications Series
ESM
Technical Data Ambient Temperature
25 ºC
Technical Data Height
1659 mm
Technical Data Inlet Temperature
35 ºC
Technical Data Length
1722 mm
Technical Data Nominal Pressure
7.5 bar | 10 bar | 13 bar
Technical Data Pressure Dew Point
3 ºC
Technical Data Weight
1086 kg
Technical Data Width
920 mm
Technical Data Working Pressure
7 bar
The Perfect Fit To Variable Air Demand
The right variable speed compressor in the right application delivers significant energy savings and a stable consistent air supply
The Synthetic Efficiency Advantage
The synthetic efficiency advantage with Gardner Denver™r AEON™ 9000 SP lubricant as a standard.A unique synthetic lubricant designed specifically to maximize compressor efficiency and provide optimum lubricity.A proven track record of service-life up to 6,000 hours in the most rugged operating environments.Extended life timeMaximum protection for internal components.Protect your investmentGardner Denver™ recommends regular oil sampling and analysis provided by GD to ensure the highest level of protection against component failure."Green" AdvantageExtended drain intervalsEnergy Savings as a result of optimum operation under demanding temperature conditionsMake considerable savings on your energy bill
Warranty
GD 5 Years Extended Warranty Protect 5 - Our total commitment to quality and worry free ownershipGD 5 Years Warranty - a simple and free of charge extended warranty scheme from GD - once again, taking the industry standard and making it better."GD Distributors provide world class maintenance and service support with a team of highly trained and skilled compressor service technicians"GD provides Protect 5 - an extended warranty cover on your compressor for 5 years with GD's authorized service providers delivering a guaranteed quality service (Terms and conditions apply. Contact your nearest authorized service provider for full details.).We believe that the GD Protect 5 will become a way of life "working when you need it" to provide maximum uptime and peace of mind.Protect 5 - a simple and free of charge extended warranty scheme from GD.
Whatever Your Request Gd Has The Smart Solution
The GD rotary screw compressor range from 2.2 - 500 kW, are designed to meet the highest requirements which the modern work environment and machine operators place on them. As a result, the GD compressors are extremely energy efficient, quiet and reliable. These compressors continue to further strengthen Gardner Denver™'s success story - variable and fixed speed compressor technologies available.The OIL FREE GD EnviroAire range from 15 - 110 kW provides high quality and energy efficient compressed air for use in a wide range of applications. The totally oil-free design eliminates the issue of contaminated air, reducing the risk and associated cost of product spoilage and rework, particularly for those customers operating in sterile environments - variable and fixed speed compressor technologies available.A modern production system and process demands increasing levels of air quality. Our complete Air Treatment Range ensures the highest product quality and efficient operation.Our product range's consist of:Refrigerant Dryers.Desiccant Dryers.Condensate Management.Oil/Water Separation Systems.Compressors systems are typically comprised of multiple compressors delivering air to a common header. The combined capacity of these machines is generally greater than the maximum site demand. To ensure the system is operated to the highest levels of efficiency, the GD Connect air management system is essential.The modern GD Connect 12 air management system can intelligently control up to 12 fixed speed or variable speed compressors.The simple GD Connect 4 air system is the ideal control solution for smaller compressed air stations, and will intelligently control up to 4 fixed speed compressors.
