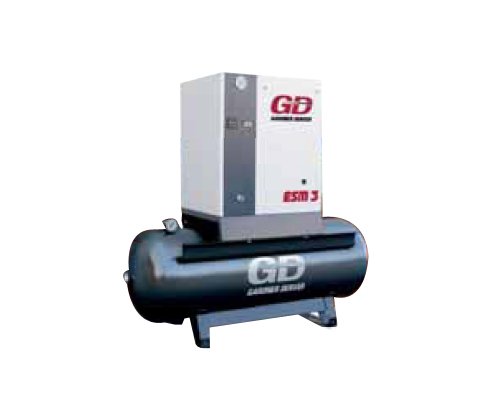

The Gardner Denver ESM 4-200 Screw Air Compressor, part of the ESM 2-5 Series, offers maximum flexibility and ease of installation. With a compact design, it can be customized to meet specific customer requirements, from standalone use to complete compressor stations. Featuring a user-friendly plug & play operation, low noise level, and high reliability, this compressor ensures efficient and cost-effective performance. Equipped with advanced control systems and optional features for enhanced functionality, the Gardner Denver ESM 4-200 is designed for optimal productivity and durability.
Product Specifications
Easy To Use
Thanks to user-friendly design of the ESM 2 - 5 range, the compressors are ready for plug & play operation. Maintenance is made easy by the removable side doors providing you with quick and easy access to all service points. The simple design minimizes the number of moving parts and as a result reliability is increased and maintenance costs reduced.The compressors are belt driven, designed for the highest performance - providing hours of reliable operation.Thanks to the low noise level of the ESM 2 - 5 range, the compressor can be installed at the point of use - requiring no additional cost for a separate compressor room or expensive pipework.
Note
For additional information please contact Gardner Denver™ or your local representative.
Optional Equipment
ESM 4 available with Start/Delta starting and AirBasic controllerESM 4 with a larger 500 ltr receiverPrefilter and micro filter combinationTimed or float drains for receiver mounted unitsRefrigerant dryer ESM 2-5Guaranteed best performance combined with low pressure lossesDigital controller displaying:Dew point indicationAdditional energy saving modeMaintenance displayFault memory
Optional Maximum Flexibility
Compressor base mountedCompressor mounted on a tankComplete compressor station includes compressor and refrigerant dryer, both mounted on a tank
Specifications Dew Point Temperature At 25 C Ambient Temperature
3 ºC
Specifications Environmentally Friendly Refrigerant
R134a
Specifications Industry Standardscertifications
ISO 1217 | ISO 2151 | ISO 7183
Specifications Receiver Capacity Complete Compressor Station
200 L
Specifications Series
ESM
Standard Equipment
DOL startingOverload relay motor protectionStart/Stop control with pressure switchMain On/Off switchElectric motors, IP55, F-class insulationOil level monitoring, sight glassBelt transmissionSafety devices for:Motor over temperatureCompressor over temperature, trip at 110 ºCCompressor over pressure (safety valve)Running condition indicators:PressureHour-meterEpoxy powder coated enclosureOil thermostatFactory filled with AEON® lubricant
Technical Data Esm 2 5 Complete Compressor Station Height
1355 mm
Technical Data Esm 2 5 Complete Compressor Station Length
1450 mm
Technical Data Esm 2 5 Complete Compressor Station Width
600 mm
Technical Data Esm 2 5 Maximum Pressure
10 bar | 145 psig
Technical Data Esm 2 5 Motor Power
4 kW | 5.5 hp
Technical Data Esm 2 5 Net Weight
170 kg
Technical Data Esm 2 5 Noise Level
62 dBA
Technical Data Esm 2 5 Tolerance
±3 dBA
Technical Data Esm 2 5 Total Weight Of Complete Compressor Stati
213 kg
Technical Data Esm 2 5 Volume Flow
0.53 m³/min | 19 ft³/min

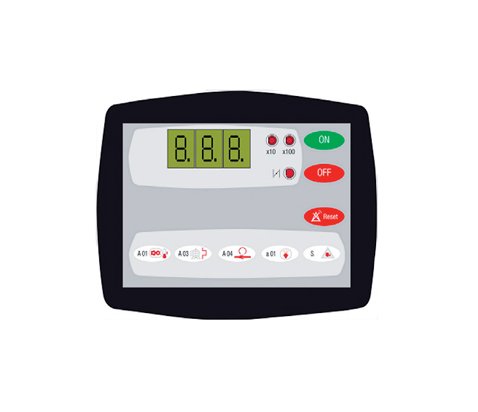

User Friendly Control System
The Start/Stop operation ensures no idling time and no idling energy costs. The ESM 2-5 as standard are equipped with Start/Stop control and direct online starting. Hour meter and pressure gage are also included.The ESM 4-5 compressors as a premium option are equipped with Star/Delta starting and the electronic Air Basic controller, which provides the user with data on total hours of operation, operating temperature and additional information such as:Air filter replacementOil filter replacementSeparator filter replacementOil changeRegular maintenance adviceWith star delta the compressors can be set to unloaded running with timed stop adjustable between 0 and 3 minutes.
