The Gardner Denver ESM 5 Screw Air Compressor from the ESM 2-5 Series offers maximum flexibility and efficiency. With a maximum pressure of 10 bar, volume flow of 0.67 m³/min, and noise level as low as 66 dBA, this compressor is designed for user convenience and reliability. Easy to install and operate, it features a user-friendly design, high-performance belt-driven system, and low maintenance costs. Equipped with standard and optional features including DOL starting, overload relay motor protection, and user-friendly control systems, the ESM 5 ensures seamless operation and energy efficiency. This compressor meets ISO industry standards and is ideal for institutional buyers seeking reliable and compliant equipment.
Product Specifications
Easy To Use
Thanks to user-friendly design of the ESM 2 - 5 range, the compressors are ready for plug & play operation. Maintenance is made easy by the removable side doors providing you with quick and easy access to all service points. The simple design minimizes the number of moving parts and as a result reliability is increased and maintenance costs reduced.The compressors are belt driven, designed for the highest performance - providing hours of reliable operation.Thanks to the low noise level of the ESM 2 - 5 range, the compressor can be installed at the point of use - requiring no additional cost for a separate compressor room or expensive pipework.
Note
For additional information please contact Gardner Denver™ or your local representative.
Optional Equipment
ESM 5 available with Start/Delta starting and AirBasic controllerESM 5 with a larger 500 ltr receiverPrefilter and micro filter combinationTimed or float drains for receiver mounted unitsRefrigerant dryer ESM 2-5Guaranteed best performance combined with low pressure lossesDigital controller displaying:Dew point indicationAdditional energy saving modeMaintenance displayFault memory
Optional Maximum Flexibility

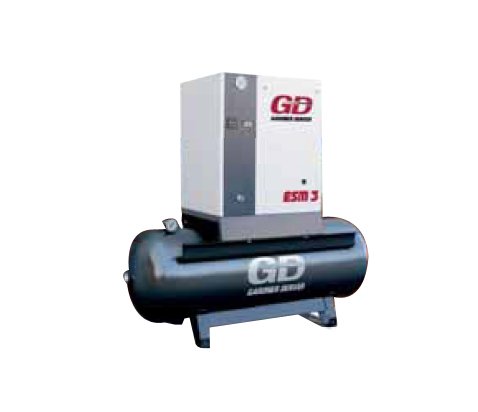

Compressor base mountedCompressor mounted on a tankComplete compressor station includes compressor and refrigerant dryer, both mounted on a tank
Specifications Dew Point Temperature At 25 C Ambient Temperature
3 ºC
Specifications Environmentally Friendly Refrigerant
R134a
Specifications Industry Standardscertifications
ISO 1217 | ISO 2151 | ISO 7183
Specifications Series
ESM
Standard Equipment
DOL startingOverload relay motor protectionStart/Stop control with pressure switchMain On/Off switchElectric motors, IP55, F-class insulationOil level monitoring, sight glassBelt transmissionSafety devices for:Motor over temperatureCompressor over temperature, trip at 110 ºCCompressor over pressure (safety valve)Running condition indicators:PressureHour-meterEpoxy powder coated enclosureOil thermostatFactory filled with AEON® lubricant
Technical Data Esm 2 5 Maximum Pressure
10 bar | 145 psig
Technical Data Esm 2 5 Motor Power
5.5 kW | 7 hp
Technical Data Esm 2 5 Net Weight
105 kg
Technical Data Esm 2 5 Noise Level
66 dBA
Technical Data Esm 2 5 Standard Compressor Height
840 mm
Technical Data Esm 2 5 Standard Compressor Length
620 mm
Technical Data Esm 2 5 Standard Compressor Width
600 mm
Technical Data Esm 2 5 Tolerance
±3 dBA
Technical Data Esm 2 5 Volume Flow
0.67 m³/min | 24 ft³/min

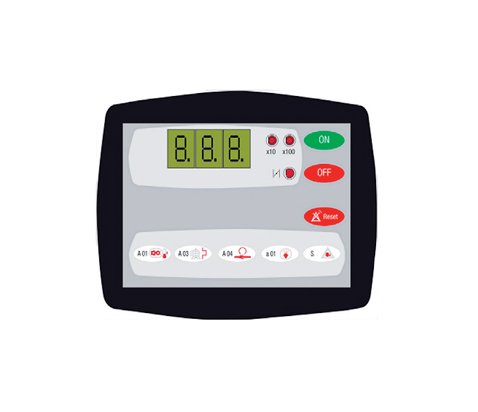

User Friendly Control System
The Start/Stop operation ensures no idling time and no idling energy costs. The ESM 2-5 as standard are equipped with Start/Stop control and direct online starting. Hour meter and pressure gage are also included.The ESM 4-5 compressors as a premium option are equipped with Star/Delta starting and the electronic Air Basic controller, which provides the user with data on total hours of operation, operating temperature and additional information such as:Air filter replacementOil filter replacementSeparator filter replacementOil changeRegular maintenance adviceWith star delta the compressors can be set to unloaded running with timed stop adjustable between 0 and 3 minutes.
