The Gardner Denver ESM22TK Fixed Speed Turnkey Screw Air Compressor, part of the ESM 7-22 series, offers absolute reliability, energy efficiency, and versatility in a compact design. Meeting industry standards like ISO 9001:2008 and ISO 14001, this compressor features innovative control systems, customizable options for flexible installation, and a reliable air-end designed for long-term performance. With benefits like easy servicing, high-quality air production, and energy savings, Gardner Denver ensures top performance and efficiency for institutional and government buyers.
Product Specifications
Additional Information

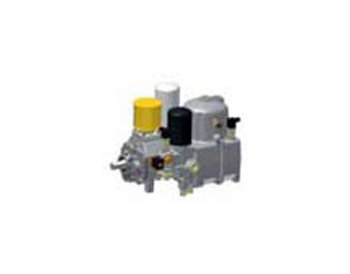

Without an efficient, durable air-end, a unique compressor design means nothing. That's why Gardner Denver™ designs and manufactures this critical component to exacting standards. Tens of thousands of our air-ends are in operation world-wide, proving that the heart of the ESM 7-22 Series can stand the test of time.Rely on GD to provide the perfect fit.Designed and manufactured in accordance with ISO 9001 and ISO 14001 certification, the ESM series meets the industry's expectations of the highest quality standards.Proven results even in the toughest conditions.Gardner Denver™ product development is a balance of technology, efficiency and performance - all focused on meeting your demand for compressed air.Also in smaller business applications you can measure efficiency, and see the value of year on year saving!All components are ready to "Plug & Play"Ideal where a smaller footprint is requiredSave even more energy with our unique compressed air management systemsGenuine GD Parts-The perfect fit for maximum performance and best efficiencyThe vast experience and knowledge of GD's highly qualified air specialists, coupled with the use of genuine GD parts and quality consumables that are guaranteed to perform, ensures the best possible efficiency from your GD air system."The use of genuine GD parts and lubricants will maximize your compressor's life and efficiency".
Advanced Design
The ESM 7-22 fixed speed screw compressors are designed to meet the high requirements which the modern work environment and machine operators place on them. As a result, our belt driven ESM 7-22 compressors are extremely energy efficient, quiet, reliable and easy to use, ensuring long operating life and delivery of optimal air quality.The number of special options available makes the ESM 7-22 compressors the right choice for producing high quality compressed air for a wide range of needs.These compressors continue to further strengthen Gardner Denver™'s success story as a world leader in compressors.
Customized For Flexibility

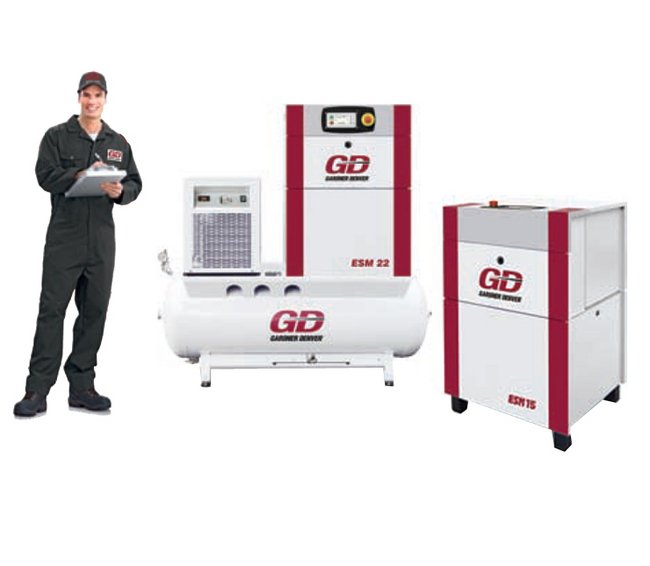

The basic ESM 7-22 compressors can be equipped with useful options to meet even the toughest demands for building up a flexible compressor station. As a result, you will get a compact air solution which can be installed quickly and efficiently wherever the need for high quality compressed air exists.Complete compressor stationincludes compressor and refrigerant dryer, both mounted on a tank.Reliable add-on refrigerant dryerMinimum power consumption.Digital dew point indicator.Condensate drain incorporated.Environmentally friendly refrigerant.Ensuring top performance and reliability with minimum pressure losses.High quality air receiverBuilt to the highest standard EN 87/404.With pre dried high quality air, no condensate collects in the receiver.
Easy Servicing Combined Airoil Cooler
Low air discharge temperatureNo unnecessary wear or condensate in the system
Easy Servicing Easy Service Items
Spin on/off separator cartridge gives residual oil carryover of less than 3 mg/m³Quick oil change via external drainEasy access suction filter element
Easy Servicing Easy Servicing Information

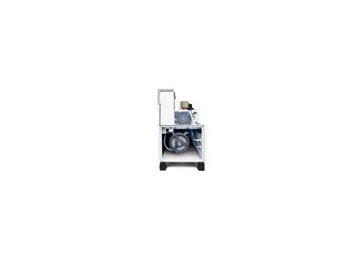

The design of these packages assures the service points are readily accessible. The enclosure side doors are hinged and removable to allow complete access to all service points. The reduced number of moving parts also lowers maintenance costs.
Easy Servicing First Class Accessibility
Panels and covers easily removable with quick release catches
Easy Servicing Minimum Space Requirements
Small footprint saves space, allowing installation even in restricted areas
Easy Servicing Service Friendly Design
Short servicing timesLong service intervalsReduced service costs

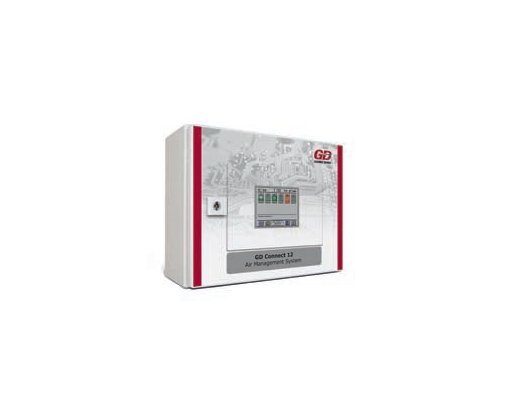

Gd Connect 12
Sequencer with up to 35% energy savings!Easy to installImproved performance and efficiencySimple to operateDetailed management reportsUnique compressed air management systemCompressor systems are typically comprised of multiple compressors delivering air to a common header.The combined capacity of these machines is generally greater than the maximum site demand. To ensure the system is operated to the highest levels of efficiency, the "GD Connect 12" management system is essential.The GD Connect 12 can intelligently control up to 12 fixed speed or variable speed compressors.Intelligently selecting the right combination of compressorsIt reduces energy consumption by tightening the network pressure to the smallest possible bandEach 1 bar decrease potentially results in a 6% reduction in energy consumption and as much as 25% decrease in air leakage losses.Keeping off load running to the absolute minimum

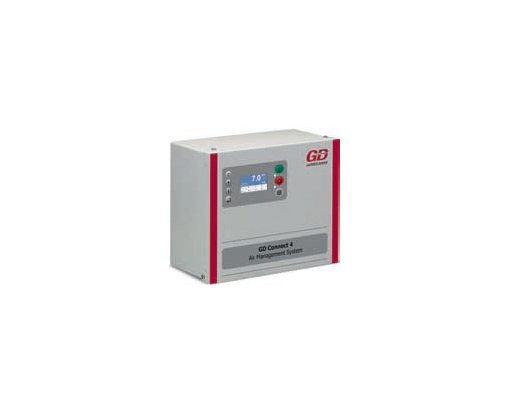

Gd Connect 4
Air management systemToday no modern energy efficient compressed air system is complete without the installation of an intelligent master control system.The new GD Connect 4 is the ideal control solution for smaller compressed air stations, and will intelligently control up to 4 fixed speed compressors.
Innovative Control System
GD PILOT Control System for reliability and simplicity of operationThe new control system ensures reliable operation and protects your investment by continuously monitoring the operational parameters.The "GD PILOT" controller also has the capability to have programmable inputs and outputs, control additional equipment as well as providing the following features with clear readable text.Discharge/line pressure displayAir/oil temperature displayTotal hours run and loaded hoursService due indicatorEnhanced fault log monitorReal time clockTimer controlled stop/startRemote stop/startAuto restart on power failureSecond pressure settingStatus indicationRS485 - Modbus RTUMore benefitsThree line LCD interfaceDryer controlProgrammable input and outputsDual position abilityFlexibility for tank mounted versionUser-friendly design
Note
Including Add-on dryer and Tank Mounted.For additional information please contact Gardner Denver™ or your local representative.The refrigerant dryer requires a separate electric supply. Data refer to DIN ISO 7183(class 4, pressure dew point 3° C). For further specifications please refer to refrigerant dryer documentation.
Specifications Industry Standardscertifications
CE | DIN ISO 7183 | EN 87/404 | ISO 1217 | ISO 14001 | ISO 2151 | ISO 9001:2008
Specifications Series
ESM
Technical Data Air Receiver
500 L
Technical Data Dryer Frequency
50 Hz
Technical Data Dryer Phase
1
Technical Data Dryer Voltage
230 V
Technical Data Height
1825 mm
Technical Data Length
1883 mm
Technical Data Nominal Pressure
7.5 bar | 10 bar
Technical Data Refrigeration Dryer
GDD36
Technical Data Weight
620 kg
Technical Data Width
867 mm
Warranty
GD 5 Years Extended Warranty Protect 5 - Our total commitment to quality and worry free ownershipGD 5 Years Warranty - a simple and free of charge extended warranty scheme from GD - once again, taking the industry standard and making it better."GD Distributors provide world class maintenance and service support with a team of highly trained and skilled compressor service technicians"GD provides Protect 5 - an extended warranty cover on your compressor for 5 years with GD's authorized service providers delivering a guaranteed quality service (Terms and conditions apply. Contact your nearest authorized service provider for full details.).We believe that the GD Protect 5 will become a way of life "working when you need it" to provide maximum uptime and peace of mind.Protect 5 - a simple and free of charge extended warranty scheme from GD.
Whatever Your Request Gd Has The Smart Solution
The GD rotary screw compressor range from 2.2 - 500 kW, are designed to meet the highest requirements which the modern work environment and machine operators place on them. As a result, the GD compressors are extremely energy efficient, quiet and reliable. These compressors continue to further strengthen Gardner Denver™'s success story - variable and fixed speed compressor technologies available.The OIL FREE GD EnviroAire range from 15 - 110 kW provides high quality and energy efficient compressed air for use in a wide range of applications. The totally oil-free design eliminates the issue of contaminated air, reducing the risk and associated cost of product spoilage and rework, particularly for those customers operating in sterile environments - variable and fixed speed compressor technologies available.A modern production system and process demands increasing levels of air quality. Our complete Air Treatment Range ensures the highest product quality and efficient operation.Our product range's consist of:Refrigerant Dryers.Desiccant Dryers.Condensate Management.Oil/Water Separation Systems.Compressors systems are typically comprised of multiple compressors delivering air to a common header. The combined capacity of these machines is generally greater than the maximum site demand. To ensure the system is operated to the highest levels of efficiency, the GD Connect air management system is essential.The modern GD Connect 12 air management system can intelligently control up to 12 fixed speed or variable speed compressors.The simple GD Connect 4 air system is the ideal control solution for smaller compressed air stations, and will intelligently control up to 4 fixed speed compressors.
Your Benefits At A Glance Quality From A To Z
For these fixed and variable speed compressors, we have generated easy-to-use and accurate drive systems and greatly invested on developing optimal cooling and ventilation. All these features are of direct benefit to the users.Maintenance of these compressors is facilitated by having a user-friendly enclosure.Low noise level is ensured.Very small installation footprintThanks to advanced compressor conceptPasses through a standard doorwaySimplifies installation workCan be installed where it is neededExpensive pipework can be eliminatedHigh efficiency motorIP 55 motorThe drive/motor/compressor combination and the controller are designed to meet the demands of your system at the lowest possible specific power.High ambient temperature as a standard (45 ºC)Ensures continuous operation even under harshest conditionsEnsure stress-free operation through efficient heat dissipationFully integrated air-end designWell proven air-endsThe innovative integrated design, with oil separation, oil filter, thermostatic bypass valve, reduces the number of external hoses and components resulting in increased reliability.Automatic belt tensioningMaintenance-freeProvides correct belt tensionEnsures long belt life
