Experience unparalleled performance and serviceability with the Gardner Denver™ LRS-Series 215 HP Variable-Speed Rotary Screw Compressor. With cutting-edge design and compact footprint, this compressor offers whisper-quiet operation, high energy efficiency, and advanced Governor™ touchscreen controller features for utmost user convenience. Benefit from total system protection, energy savings, and industry-leading warranty programs, making it an ideal choice for institutional and government procurement needs.
Product Specifications
Additional Information
The Total PackageGardner Denver™ has the total package-extensive compressor and air treatment product lines, sales and service support through our extensive network of authorized local distributors, and industry leading warranty programs. Because we offer more than just compressed air equipment, we can provide solutions that keep you running, protect your production objectives, and save you money.Get in Touch with the Next Generation of Compressor ControllersState-of-the-ArtGardner Denver™ completes its industry leading compressor packages with state-of-the-art touch screen controllers: the GD Pilot and Governor™. Featuring cutting edge graphics that provide necessary compressor data and full color schematics in seconds, the Governor™ is now available on select LRS-Series compressors models.

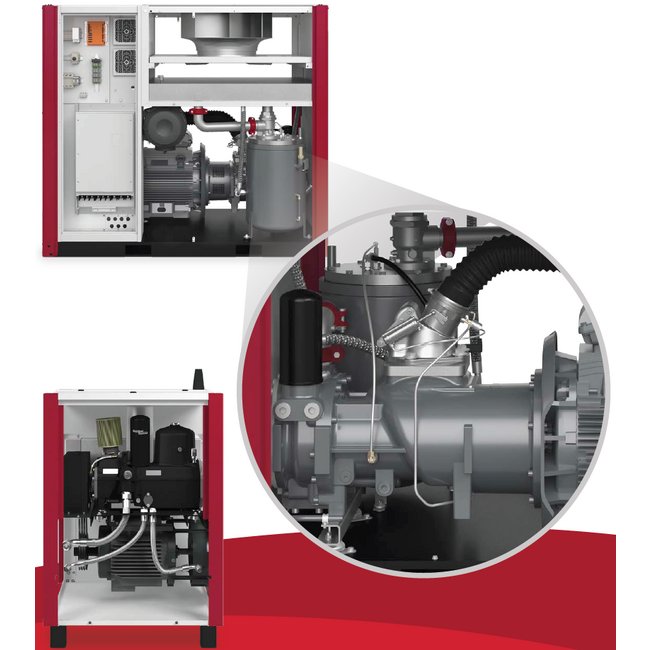

Compact Design
Compact, Quiet CompressorsNearly Silent Noise LevelsThe Gardner Denver™ LRS-Series compressor designs feature high-quality, sound-insulating enclosure panels and a low-noise, thermostatically controlled, motor-driven fan. These components reduce the noise to whisper-quiet levels and eliminate the need for a separate compressor room, saving money on installation costs.
Dimensions Height
86 in | 2193 mm
Dimensions Length
115 in | 2907 mm
Dimensions Width
82 in | 2071 mm
Energy Saving
Reduce EnergyMaximize EfficiencySave MoneyPerfect Response to Your Individual Air DemandVariable speed compressors from Gardner Denver™ can efficiently and reliably handle the varying air demand. The right variable speed compressor in the right application delivers significant energy savings and a stable air supply at constant pressure.Minimize Your Energy ConsumptionThe largest cost component of a compressor during its lifetime is the power required to operate it. Maximum efficiency at any level of demand cuts energy costs and saves money.
Features
Without sacrificing serviceability, the LRS-Series compressor packages feature some of the smallest footprints in the industry.Lower Installation CostsIncreased Flexibility when Determining Installation LocationAbility to More Easily Handle and Move Machines
Gd Pilot Controller Features
Real time clockSecond pressure settingDischarge/line/network pressure data displayedAdvanced fault history logProgrammable inputs and outputsAuto restart after power failureRS485-Modbus RTU standard
Governor Touchscreen Controller Features
Available on L15RS-L290RS compressor modelsUser-friendly navigation with state-of-the-art graphics and designMachine status available on a 7-inch, full color touchscreen display for L30RS-L290RS and a 4.3-inch display for L15RS-L290RSDetailed schematics at your fingertipsAdvanced machine diagnosticsData logging and iConn connectionWeb server to allow access to the Governor™ from your desktop
Specifications Drive Motor Power
215 hp | 160 kW
Specifications Free Air Delivery Fad At 131 Bar Nominal Pressure
819.7 acfm | 23.21 m³/min
Specifications Free Air Delivery Fad At 69 Bar Nominal Pressure
1119.2 acfm | 31.69 m³/min
Specifications Free Air Delivery Fad At 86 Bar Nominal Pressure
1049.8 acfm | 29.73 m³/min
Specifications Noise Level
76 dBA
Specifications Nominal Pressure At 50 Hertz Hz Frequency
100 psig | 125 psig | 190 psig | 6.9 bar | 8.6 bar | 13.1 bar
Specifications Nominal Pressure At 60 Hertz Hz Frequency
100 psig | 125 psig | 190 psig | 6.9 bar | 8.6 bar | 13.1 bar
Specifications Note For 69 To 131 Bar Nominal Pressure And 60 He
Data measured and stated in accordance with ISO1217, Ed. 4, Annex C & Annex E at the following conditions:Air Intake Pressure 1 bar A, Air Intake Temperature 20ºC, Humidity 0% (Dry).
Specifications Weight
9652 lb | 4378 kg
Total System Protection
Ensure your compressed air system remains a total packageSince 1859, Gardner Denver™ has been supporting the compressed air industry with high quality, long-lasting compressor and air treatment solutions. Carrying on that legacy, our robust line of parts, lubricant and downstream accessories ensure your system stays healthy.The focus on total system protection by Gardner Denver™ not only includes OEM parts and fluid solutions, but a commitment to the longevity of your equipment through our industry leading warranty programs.Protect your investment.
Value
Using a variable speed compressor can easily save 25% energy by using just the right amount of energy required to do the job and no more.
Warranty
The engineering philosophy of Gardner Denver™ is to design high quality, reliable equipment and help you protect your new equipment to give you peace of mind. We offer a good, better, and best approach to warranty programs.Standard WarrantyProtects your newly purchased equipment if you encounter defects in materials or workmanship for 1 year and provides 2 years of parts and labor coverage for most major components.Platinum 10-Year Extended WarrantyThe Platinum 10-Year Extended Warranty covers everything in the Standard Warranty as well as defects in materials or workmanship of the airend parts for 10 years and provides 5 years coverage on major components. The equipment must be maintained on-schedule in accordance with the requirements of the warranty statement and the operations manual.Platinum+ Full Package WarrantyAdds to the coverage of the Platinum 10-Year Extended Warranty and changes to a 5-year renewable service agreement with one of our factory trained distributors. By paying for the additional protection, you gain peace of mind, a partnership with your trusted distributor, and the added coverage of wear items and other package components.
