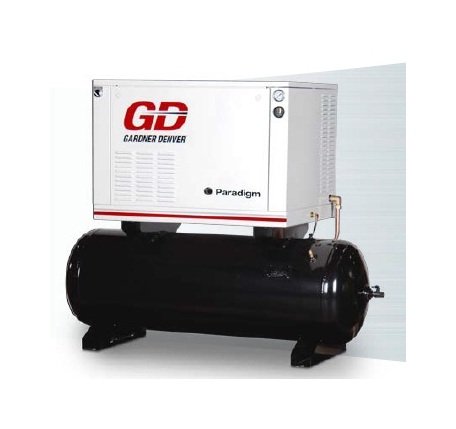

Gardner Denver Paradigm - Low Noise Reciprocating Air Compressors
Gardner Denver Paradigm - Low Noise Reciprocating Air Compressors
SKU:REC-5c453e
Maximize performance and minimize noise with Gardner Denver Paradigm Air Compressors.
Regular price
$3,899.99
Regular price
Sale price
$3,899.99
Unit price
per
Initiate Order
Gardner Denver Paradigm - Low Noise Reciprocating Air Compressors
$3,899.99
Quantity: 1
Claim Your Seller Account
Gardner Denver Paradigm - Low Noise Reciprocating Air Compressors
$3,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched performance with the Gardner Denver Paradigm Low Noise Reciprocating Air Compressors. Designed for quiet operation in environments with noise restrictions, this compressor features a unique heat control solution and vibration minimization for enhanced reliability and longevity. With a focus on customer satisfaction, the Paradigm delivers powerful performance, easy maintenance, and exceptionally low noise levels, making it an ideal choice for applications requiring intermittent duty and low noise requirements.
Product Specifications
Acoustic Enclosure 0
Standard enclosure provides a low 67 dBA (5 hp) & 68 dBA (7.5 hp) noise level to ensure quiet operation at any facility. Easy access to all service areas provided by latched panels, which could be easily removed.
Complete Aftermarket Support 0
A complete line of Gardner Denver™ aftermarket products is available to ensure the long life of each compressor.
Compressor Features For Superior Value 0
Industrial grade compressor with unique features including gasketless cylinder/head design, stainless steel valve disks and tapered roller main bearings for superior dependability. Unique domed piston design for maximum air delivery and efficiency.
Optional Accessories 0
NEMA 4 Starter/Pressure switch Moisture Separator Dual Control Low Oil Level Shutdown High Temperature Shut Down Electric Tank Drain TEFC Motors Premium Efficiency Motors Vibration Isolators

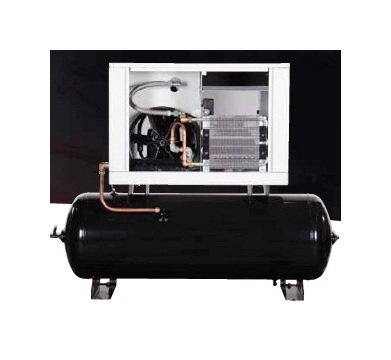

Quality Package Design 0
Separate compressor and motor chambers with dedicated cooling circuits for cooler operation and longer life. Oil site gauge for ease of monitoring and service. Integrated heavy-duty air cooled aftercooler for up to 65% moisture removal. Filter maintenance indicator, showing a need for a filter change, for userfriendly monitoring. Rubber vibration isolators, separating inner base from the enclosure, for maximum noise and vibration control. Innovative belt tensioning system for easy service.

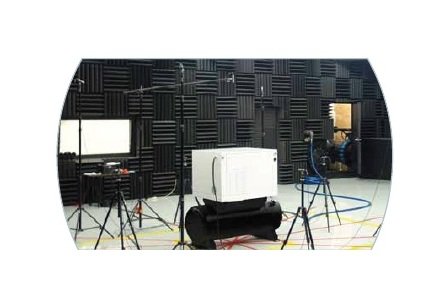

Sound Testing 0
With a commitment to research and development, Gardner Denver provides our customers with products which uphold our tradition of quality and proven results. As part of the new product development process, the Paradigm has passed extensive design reviews as well as performance, endurance and sound testing requirements.
Specifications 175 Psi Rating
734 rpm
Specifications 175 Psi Rating Cfm Delivery
16.8 cfm
Specifications 175 Psi Rating Displ
21.3 cfm
Specifications Approximate Shipping Weight
505 lb
Specifications Height
31 in
Specifications Length
40 1/2 in
Specifications Motor Power
5 hp
Specifications Pump Comp Model
RP15B
Specifications Sound Level
67 dBA
Specifications Type
Base Mounted Units
Specifications Width
31 1/2 in
Standard Features 0
Multi-finned cylinders for cooler operating temperatures resulting in long life and consistent performance. Two compression rings and one oil control ring to ensure low oil carry-over and provide efficient air delivery. Large-diameter finned tubing with the greatest cooling effect between stages for maximum compressor efficiency. Pressure relief valves located in inter-stage intercooler and discharge line for safe compressor operation. Precision balanced flywheel with cast fan blades for optimum compressor cooling and longer life. Removable manifolds for easy serviceability. Balanced rugged ductile iron crankshaft with large diameter throws for minimum bearing loads and counterweights to minimize vibration. Rugged cast iron oil reservoir with convenient sight gauge glass, corner oil fill boss and large oil drain for user-friendly serviceability. A pressure switch allows the compressor to start unloaded every time. This ensures the lowest amount of starting torque is required by the electric motor Magnetic starter for thermal overload protection Manual tank drain Standard start/stop control Sound attenuating enclosure for low noise operation Front and back panels can be easily removed for fast and easy service access Ball valve on crankcase drain for easy maintenance of lubricant. Package easily fits through a standard 36" door 80/20 duty cycle
