Gardner Denver PL Series Bare Air Compressor Pump
Gardner Denver PL Series Bare Air Compressor Pump
SKU:NEW-b44039
Experience industrial-grade performance with the Gardner Denver PL Series Bare Air Compressor Pump. Proven reliability and efficiency for your compressed air needs.
Regular price
$3,199.99
Regular price
Sale price
$3,199.99
Unit price
per
Initiate Order
Gardner Denver PL Series Bare Air Compressor Pump
$3,199.99
Quantity: 1
Claim Your Seller Account
Gardner Denver PL Series Bare Air Compressor Pump
$3,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

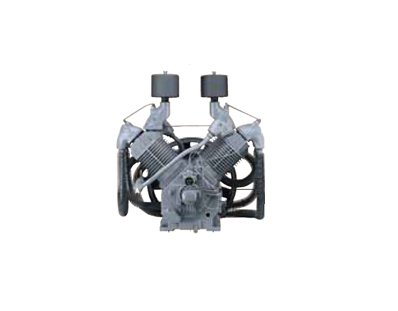

The Gardner Denver PL Series Bare Air Compressor Pump is a high-performance, long-lasting solution designed for industrial applications. With a 25 HP motor power, ASME approval, and adherence to ISO 9001:2008 standards, this compressor pump offers proven dependability and user-friendly design. Featuring slow speed operation, corrosion-resistant steel valves, and a variety of optional configurations, Gardner Denver sets the benchmark for compressor reliability and efficiency. Trust in Gardner Denver for durable, efficient, and tailored compressor solutions.
Product Specifications
Additional Information
Because compressed air is an essential utility, dependability is an essential compressor quality. If your compressor goes down, it can hurt your reputation-and your bottom line. Gardner Denver™ reciprocating compressors are proven units, known for their reliability over decades of use. In addition to dependability, you want a compressor that is user-friendly. Gardner Denver™ comes through again, with a wide selection of configurations and options designed for trouble-free operation.You can’t beat a Gardner Denver™ compressor!
Bare Compressor Pumps
Gardner Denver™ pumps provide dependable service for industrial applications, OEM applications, and pump replacement. The rugged pump design assures reliability and long maintenance intervals.
Base Mounted Air Compressors
Designed for installations where air tanks are remotely located.

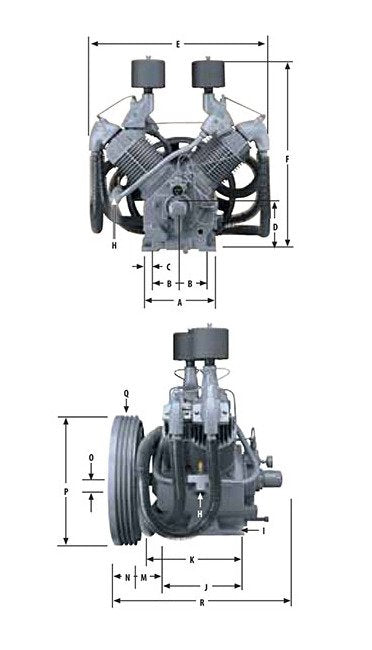

Dimensions Base Depth
13 1/4 in
Dimensions Base To Crank Ctr
7 7/8 in
Dimensions Base Width
12 7/8 in
Dimensions Bolt Down Depth
11 1/4 in
Dimensions Bolt Down Hole Diameter
9/16 in
Dimensions Bolt Down To Edge Depth
1 in
Dimensions Bolt Down To Edge Width
3/4 in
Dimensions Bolt Down Width
5 11/16 in
Dimensions Crank Diameter
2 1/4 in
Dimensions Flywheel Diameter
22 3/16 in
Dimensions Flywheel Grooves
3 in
Dimensions Flywheel Width
3 1/2 in
Dimensions Hp Exhaust Opening Manifold
1 1/4 in
Dimensions Maximum Bolt Hole To Wheel
5 3/4 in
Dimensions Overall Depth
28 33/64 in
Dimensions Overall Height
33 9/16 in
Dimensions Overall Width
33 1/2 in
Duplex Air Compressors
For extra air delivery when you need it without wasted space. Plus the flexibility of single operation, alternating between compressors, or duplex operation to meet high air demand.
Gasoline Or Diesel Engine Powered Air Compressors
Truck and utility bed mounting design makes these compressors ideal for fleet and field service. Ideal for applications where electricity is not available.
High Performance
R & PL Series compressors are loaded with features designed for day-in, day-out performance. For example, Gardner Denver™’s unique automotive-type domed piston design allows the use of large diameter, low lift valves, while minimizing clearance volume for maximum air delivery.
Long Life
Features such as slow speed operation, rugged cast iron crankcase construction, corrosion resistant steel valves and tapered roller-type main bearings, all contribute to long life.
Note
All units are built to ISO 9001 standards.
Proven Dependability
You rely on compressed air to perform many tasks efficiently. Gardner Denver™ knows that reliability is one of the main reasons for a purchase. Our slow speed, built-in efficiency through design, and the longest compressor warranty in the industry make Gardner Denver™ compressors the proven choice!
Proven Design
Today’s Gardner Denver™ Reciprocating Compressors are the product of decades of design and development. In fact, we introduced the first single-stage compressor in 1919 and have continuously improved its design through innovations in material, production techniques and quality control.
Receivers
Receivers are ASME approved and include a pressure gauge, pressure relief valve, drain valve and service valve.
Select The Configuration That Matches Your Application
With many models from which to choose in both single-stage and two-stage compressors, we can match your exact needs. These configurations, combined with a wide choice of options, provide all the components for a customized installation. They are available in both R-Series splash-lubricated and PL Series pressure-lubricated models.
Select The Options That Match Your Needs

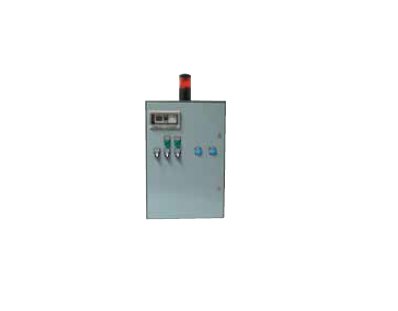

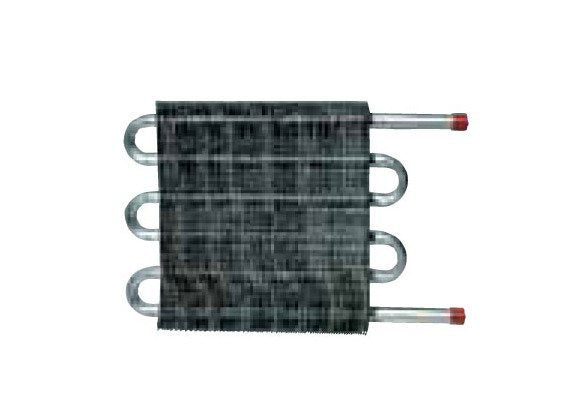

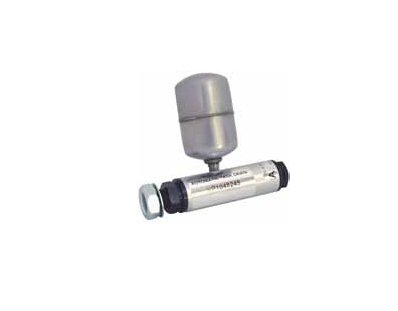

Many options are available to help you develop a Gardner Denver™ compressor package that exactly matches your specific operating requirements.Magnetic StarterFor thermal overload protection, a starter is required for units 3 horsepower and above. Starters available as mounted or unmounted. (Included as standard on most models.)Air-Cooled or Water-Cooled AftercoolerThe factory mounted, heavy-duty, air-cooled aftercooler effectively reduces up to 65% of the moisture from discharged compressed air.Automatic Tank Drain (Pneumatic)Automatically removes water from air receiver upon demand. Eliminates the need for manual purging.Vibration IsolatorsIsolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from any out-of-level floor situation that could cause vibration and damage.Low Oil Level MonitorLow Oil Level Monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.Refrigerated DryerCools compressed air to a 33 ºF - 39 ºF dew point, eliminating additional downstream condensation in the air line. Normally, a dryer should be used in conjunction with an aftercooler.DPR Control PanelThe Microprocessed Duplex Relay Panel was created for controlling a duplex air compressor package. The controller includes visual maintenance and shut down alarms.Gardner Denver™ Compressor LubricantsAEON™ lubricants are blended specifically for Gardner Denver™ compressors for use in harsh compressor environments. They are sourced from extremely stable base stocks and enhanced with carefully selected additive packages to provide long life and superior protection. AEON™ lubricants are suitable for a variety of applications and are available as a mineral oil, synthetic or food-grade synthetic. Available in 55-gallon drums, five-gallon pails, one-gallon bottles and one-quart bottles.
Specifications Airflow Delivery At 125 Psi Pressure Rating
102.1 ft³/min
Specifications Airflow Delivery At 175 Psi Pressure Rating
90.1 ft³/min
Specifications Airflow Delivery At 250 Psi Pressure Rating
76.8 ft³/min
Specifications Approximate Shipping Weight
570 lb
Specifications Belt Type
V-Type
Specifications Bore Diameter
3 1/4 in | 6 1/4 in
Specifications Displacement
0.142 ft³/rev
Specifications Motor Power
25 hp
Specifications Oil Capacity Quarts
6 1/2
