Gardner Denver PL Series Horizontal Tank Air Compressor
Gardner Denver PL Series Horizontal Tank Air Compressor
SKU:NEW-8d0936
Powerful 20 HP PL Series Horizontal Tank Air Compressor - Ideal for extreme duty applications with 250 PSI. 5-year warranty on compressor pump.
Regular price
$5,299.99
Regular price
Sale price
$5,299.99
Unit price
per
Initiate Order
Gardner Denver PL Series Horizontal Tank Air Compressor
$5,299.99
Quantity: 1
Claim Your Seller Account
Gardner Denver PL Series Horizontal Tank Air Compressor
$5,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gardner Denver PL Series CBSPLA Model Horizontal Tank Mounted Pressure Lubricated Air Compressor is a powerhouse designed for extreme duty applications, offering a reliable alternative to the R-Series unit. Operating at up to 250 PSI, this industrial-grade compressor boasts a 20 HP gas engine driven power source. With a tank capacity of 80 gallons and ASME approval, it ensures consistent high performance and durability, backed by a 5-year warranty on the compressor pump. Featuring advanced design elements such as domed pistons, an integral cylinder head, and a positive displacement oil pump, this compressor delivers exceptional airflow displacement for reliable, long-lasting operation.
Product Specifications
Additional Information
Gardner Denver™ is so confident in the way it has engineered and built its products, it offers a 5-year warranty on the compressor pump. The PL Series features domed pistons, integral cylinder head, disc valves and an oil pump that provides lubricant to all crucial parts of the compressor. From its extra heavy-duty design to its ease of maintenance, the Gardner Denver™ PL Series exemplifies reliability, durability and quality.Because compressed air is an essential utility, dependability is an essential compressor quality. If your compressor goes down, it can hurt your reputation-and your bottom line. Gardner Denver™ reciprocating compressors are proven units, known for their reliability over decades of use. In addition to dependability, you want a compressor that is user-friendly. Gardner Denver™ comes through again, with a wide selection of configurations and options designed for trouble-free operation.You can’t beat a Gardner Denver™ compressor!
Bare Compressor Pumps
Gardner Denver™ pumps provide dependable service for industrial applications, OEM applications, and pump replacement. The rugged pump design assures reliability and long maintenance intervals.
Base Mounted Air Compressors
Designed for installations where air tanks are remotely located.
Duplex Air Compressors
For extra air delivery when you need it without wasted space. Plus the flexibility of single operation, alternating between compressors, or duplex operation to meet high air demand.

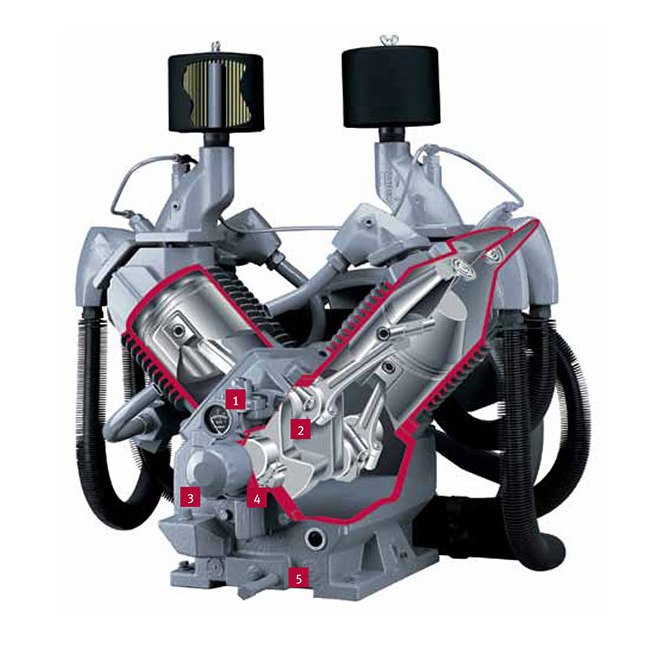

Features Internal Filtration
An oil inlet screen is located in the center of the crankcase to protect bearings from larger debris.
Features Oil Pressure Gauge
Mounted on the front of the compressor for an excellent view and easy pressure monitoring.
Features Positive Displacement Oil Pump
Provides lubricant to all critical areas of the compressor pump that require lubrication.
Features Pressure Lubrication
Crankshaft and connecting rod bearings are pressure lubricated for extended life.
Features Tapered Roller Bearing
Insures long operating life of the crankshaft.
Gasoline Or Diesel Engine Powered Air Compressors
Truck and utility bed mounting design makes these compressors ideal for fleet and field service. Ideal for applications where electricity is not available.
High Performance
R & PL Series compressors are loaded with features designed for day-in, day-out performance. For example, Gardner Denver™’s unique automotive-type domed piston design allows the use of large diameter, low lift valves, while minimizing clearance volume for maximum air delivery.
Long Life
Features such as slow speed operation, rugged cast iron crankcase construction, corrosion resistant steel valves and tapered roller-type main bearings, all contribute to long life.
Note
H - Honda, B - Briggs and Stratton, K - Kohler.Only pressure lubricated units are capable of 250 psig operation. Units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC3.All units are built to ISO 9001 standards.
Other Options

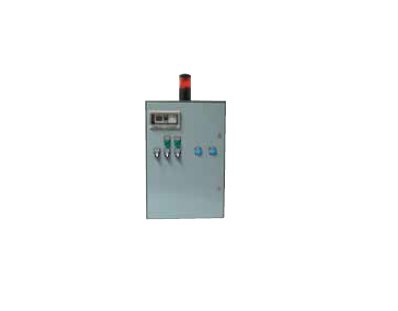

Power Monitor that shuts down unit in the event of single phasing, low voltage or phase reversalConstant Speed Control which prevents excessive motor start/stop cycles while saving energyDual Control will allow the compressor to run either in start/stop or constant speed modeNEMA 4 rated parts availableAlternate voltages and TEFC, ODPHE, TEFCHE Electric Motors
Proven Dependability
You rely on compressed air to perform many tasks efficiently. Gardner Denver™ knows that reliability is one of the main reasons for a purchase. Our slow speed, built-in efficiency through design, and the longest compressor warranty in the industry make Gardner Denver™ compressors the proven choice!
Proven Design
Today’s Gardner Denver™ Reciprocating Compressors are the product of decades of design and development. In fact, we introduced the first single-stage compressor in 1919 and have continuously improved its design through innovations in material, production techniques and quality control.
Receivers
Receivers are ASME approved and include a pressure gauge, pressure relief valve, drain valve and service valve.
Select The Configuration That Matches Your Application
With many models from which to choose in both single-stage and two-stage compressors, we can match your exact needs. These configurations, combined with a wide choice of options, provide all the components for a customized installation. They are available in both R-Series splash-lubricated and PL Series pressure-lubricated models.
Select The Options That Match Your Needs

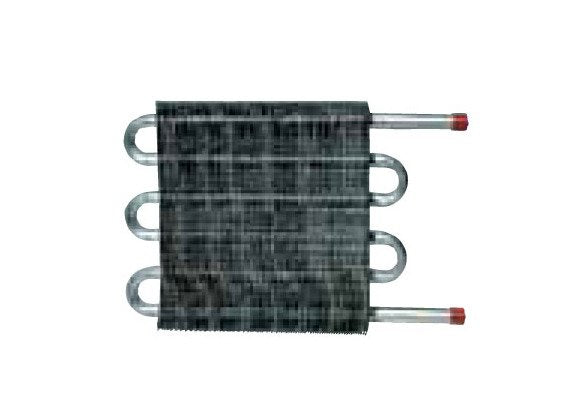

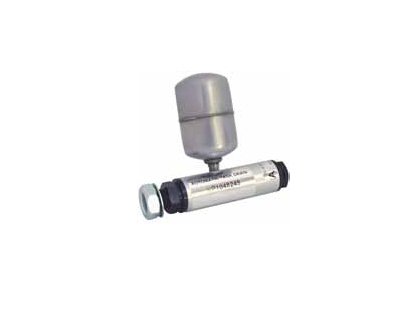

Many options are available to help you develop a Gardner Denver™ compressor package that exactly matches your specific operating requirements.Magnetic StarterFor thermal overload protection, a starter is required for units 3 horsepower and above. Starters available as mounted or unmounted. (Included as standard on most models.)Air-Cooled or Water-Cooled AftercoolerThe factory mounted, heavy-duty, air-cooled aftercooler effectively reduces up to 65% of the moisture from discharged compressed air.Automatic Tank Drain (Pneumatic)Automatically removes water from air receiver upon demand. Eliminates the need for manual purging.Vibration IsolatorsIsolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from any out-of-level floor situation that could cause vibration and damage.Low Oil Level MonitorLow Oil Level Monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.Refrigerated DryerCools compressed air to a 33 ºF - 39 ºF dew point, eliminating additional downstream condensation in the air line. Normally, a dryer should be used in conjunction with an aftercooler.DPR Control PanelThe Microprocessed Duplex Relay Panel was created for controlling a duplex air compressor package. The controller includes visual maintenance and shut down alarms.Gardner Denver™ Compressor LubricantsAEON™ lubricants are blended specifically for Gardner Denver™ compressors for use in harsh compressor environments. They are sourced from extremely stable base stocks and enhanced with carefully selected additive packages to provide long life and superior protection. AEON™ lubricants are suitable for a variety of applications and are available as a mineral oil, synthetic or food-grade synthetic. Available in 55-gallon drums, five-gallon pails, one-gallon bottles and one-quart bottles.
Specifications Airflow Delivery At 175 Psi Pressure Rating
36.2 ft³/min
Specifications Airflow Delivery At 250 Psi Pressure Rating
31.2 ft³/min
Specifications Airflow Displacement At 175 Psi Pressure Rating
44.6 ft³/min
Specifications Airflow Displacement At 250 Psi Pressure Rating
39.6 ft³/min
Specifications Approximate Shipping Weight
715 lb
Specifications Compressor Features
Bare Pump
Specifications Height
29 in
Specifications Industry Standardscertifications
ASME Approved | Compressed Air and Gas Institute (CAGI) | Compressed Air Challenge™ | Energy Star Partner | ISO 9001:2008 | NEMA 4
Specifications Length
34 in
Specifications Motor Power
20 hp
Specifications Power Source
Gas Engine Driven
Specifications Pump Model
PL30A
Specifications Series
PL
Specifications Speed At 175 Psi Pressure Rating
765 rpm
Specifications Speed At 250 Psi Pressure Rating
680 rpm
Specifications Tank Capacity
80 gal
Specifications Width
22 in
Tank Mounted Air Compressors
Available with horizontal or space-saving vertical tanks, two-stage air compressors compress air to a higher pressure than single-stage compressors.
User Friendly Design
A wide selection of configurations and available options, coupled with serviceability features, make it easy to operate and maintain a Gardner Denver™ compressor. Compare all the features on the pages that follow. You’ll discover why Gardner Denver™ is the value leader in reciprocating compressors for a broad range of automotive and industrial applications.
Warranty 5 Year Electric Motor
Electric motor is warranted for 60 months from start-up or 63 months from shipment. Other manufacturer's motors furnished due to customer request or special requirements carry the motor manufacturer's warranty.
