Gardner Denver R Series CASRSA 3 hp 80 gal Vertical Tank Air Compressor
Gardner Denver R Series CASRSA 3 hp 80 gal Vertical Tank Air Compressor
SKU:REC-7427a6
Powerful 3 hp air compressor with 80-gal tank. High performance, longevity, and reliability. ASME Approved & ISO 9001:2008.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Gardner Denver R Series CASRSA 3 hp 80 gal Vertical Tank Air Compressor
$1,599.99
Quantity: 1
Claim Your Seller Account
Gardner Denver R Series CASRSA 3 hp 80 gal Vertical Tank Air Compressor
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gardner Denver R Series CASRSA Model Vertical Tank Mounted Splash Lubricated Air Compressor is a powerhouse of performance and durability. With a 3 hp motor, 80-gallon tank, and a pump model R-15B, this compressor delivers 14.1 ft³/min airflow displacement at 125 psi pressure rating and meets ASME Approved, CAGI, Energy Star, and ISO 9001:2008 standards. Its proven design ensures reliability over decades of use, high performance, long life, and user-friendly operation, making it an ideal choice for industrial and institutional applications.
Product Specifications
Additional Information
Because compressed air is an essential utility, dependability is an essential compressor quality. If your compressor goes down, it can hurt your reputation-and your bottom line. Gardner Denver™ reciprocating compressors are proven units, known for their reliability over decades of use. In addition to dependability, you want a compressor that is user-friendly. Gardner Denver™ comes through again, with a wide selection of configurations and options designed for trouble-free operation.You can’t beat a Gardner Denver™ compressor!
Bare Compressor Pumps
Gardner Denver™ pumps provide dependable service for industrial applications, OEM applications, and pump replacement. The rugged pump design assures reliability and long maintenance intervals.
Base Mounted Air Compressors
Designed for installations where air tanks are remotely located.
Duplex Air Compressors
For extra air delivery when you need it without wasted space. Plus the flexibility of single operation, alternating between compressors, or duplex operation to meet high air demand.

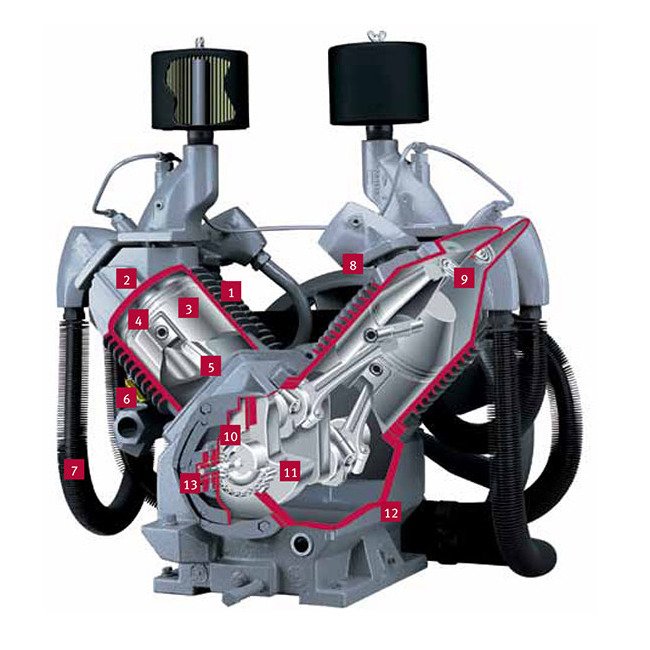

Features Balanced Crankshaft
Constructed of rugged ductile iron with large diameter throws for minimum bearing loads and counterweights to minimize vibration.
Features Balanced Pistons
Aluminum alloy first-stage piston is weight matched to the cast iron second-stage piston, ensuring proper balance.
Features Integral Cylinderhead
Gasketless design eliminates the possibility of blown head gaskets for leak-free operation.
Features Intercoolers
Large-diameter finned tubing is positioned to obtain the greatest cooling effect between stages for maximum compressor efficiency.
Features Large Capacity Crankcase
Rugged cast iron oil reservoir has convenient sight gauge glass, corner oil fill boss and large oil drain.
Features Lightweight Connection Rods
High-density, die-cast aluminum alloy rods minimize reciprocating weight. An integral, precision-bored crankpin bearing and a needle bearing for the piston pin properly distribute bearing loads for longer bearing life than bushings.
Features Loadless Starting
Positive acting, governor-type centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
Features Multi Finned Cylinders
Cooler operating temperatures result in longer life and consistent performance over time.
Features Optimized Cooling Fanflywheel
Precision balanced flywheel has fan blades for optimum compressor cooling and life.
Features Oversized Main Bearings
Tapered roller-type main bearings provide full contact and support of the crank plus delivers the longest possible life.
Features Piston Rings
Three compression rings and one oil control ring provide excellent oil control, minimum blow-by and high efficiency air delivery.
Features Pressure Relief Valves
Located in interstage and discharge.
Features Reliable High Flow Valves
Single-unit, disc-type valves provide low lift and long life. Discs are made of corrosion resistant swedish steel. Valves are easily serviced by removing the manifolds only.
Gasoline Or Diesel Engine Powered Air Compressors
Truck and utility bed mounting design makes these compressors ideal for fleet and field service. Ideal for applications where electricity is not available.
High Performance
R & PL Series compressors are loaded with features designed for day-in, day-out performance. For example, Gardner Denver™’s unique automotive-type domed piston design allows the use of large diameter, low lift valves, while minimizing clearance volume for maximum air delivery.
Long Life
Features such as slow speed operation, rugged cast iron crankcase construction, corrosion resistant steel valves and tapered roller-type main bearings, all contribute to long life.
Note
Pressure Lubricated units are capable of 250 psig operation; units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC2.All units are built to ISO 9001 standards.
Other Options

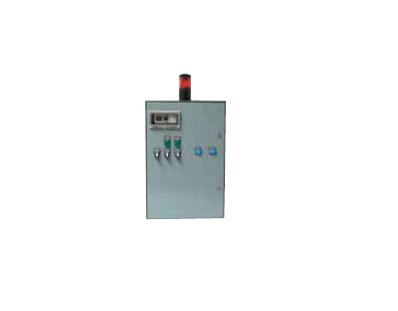

Power Monitor that shuts down unit in the event of single phasing, low voltage or phase reversalConstant Speed Control which prevents excessive motor start/stop cycles while saving energyDual Control will allow the compressor to run either in start/stop or constant speed modeNEMA 4 rated parts availableAlternate voltages and TEFC, ODPHE, TEFCHE Electric Motors
Proven Dependability
You rely on compressed air to perform many tasks efficiently. Gardner Denver™ knows that reliability is one of the main reasons for a purchase. Our slow speed, built-in efficiency through design, and the longest compressor warranty in the industry make Gardner Denver™ compressors the proven choice!
Proven Design
Today’s Gardner Denver™ Reciprocating Compressors are the product of decades of design and development. In fact, we introduced the first single-stage compressor in 1919 and have continuously improved its design through innovations in material, production techniques and quality control.
Receivers
Receivers are ASME approved and include a pressure gauge, pressure relief valve, drain valve and service valve.
Select The Configuration That Matches Your Application
With many models from which to choose in both single-stage and two-stage compressors, we can match your exact needs. These configurations, combined with a wide choice of options, provide all the components for a customized installation. They are available in both R-Series splash-lubricated and PL Series pressure-lubricated models.
Select The Options That Match Your Needs

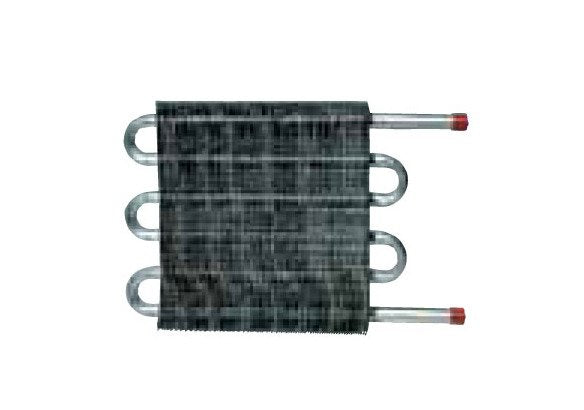

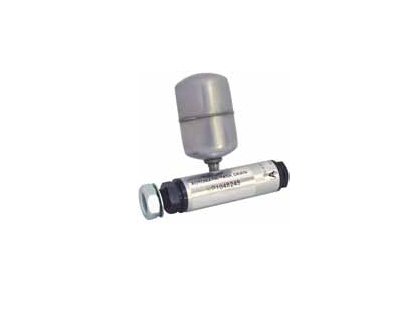

Many options are available to help you develop a Gardner Denver™ compressor package that exactly matches your specific operating requirements.Magnetic StarterFor thermal overload protection, a starter is required for units 3 horsepower and above. Starters available as mounted or unmounted. (Included as standard on most models.)Air-Cooled or Water-Cooled AftercoolerThe factory mounted, heavy-duty, air-cooled aftercooler effectively reduces up to 65% of the moisture from discharged compressed air.Automatic Tank Drain (Pneumatic)Automatically removes water from air receiver upon demand. Eliminates the need for manual purging.Vibration IsolatorsIsolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from any out-of-level floor situation that could cause vibration and damage.Low Oil Level MonitorLow Oil Level Monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.Refrigerated DryerCools compressed air to a 33 ºF - 39 ºF dew point, eliminating additional downstream condensation in the air line. Normally, a dryer should be used in conjunction with an aftercooler.DPR Control PanelThe Microprocessed Duplex Relay Panel was created for controlling a duplex air compressor package. The controller includes visual maintenance and shut down alarms.Gardner Denver™ Compressor LubricantsAEON™ lubricants are blended specifically for Gardner Denver™ compressors for use in harsh compressor environments. They are sourced from extremely stable base stocks and enhanced with carefully selected additive packages to provide long life and superior protection. AEON™ lubricants are suitable for a variety of applications and are available as a mineral oil, synthetic or food-grade synthetic. Available in 55-gallon drums, five-gallon pails, one-gallon bottles and one-quart bottles.
Specifications Airflow Delivery At 125 Psi Pressure Rating
10.9 ft³/min
Specifications Airflow Delivery At 175 Psi Pressure Rating
9.7 ft³/min
Specifications Airflow Delivery At 250 Psi Pressure Rating
8.0 ft³/min
Specifications Airflow Displacement At 125 Psi Pressure Rating
14.1 ft³/min
Specifications Airflow Displacement At 175 Psi Pressure Rating
12.8 ft³/min
Specifications Airflow Displacement At 250 Psi Pressure Rating
11.0 ft³/min
Specifications Approximate Shipping Weight
485 lb
Specifications Height
75 in
Specifications Motor Power
3 hp
Specifications Power Source
Electrical Driven
Specifications Tank Capacity
80 gal
Specifications Width
24 in
