Gardner Denver Simplex Tank Mounted Air Compressor
Gardner Denver Simplex Tank Mounted Air Compressor
SKU:REC-d16442
Powerful Gardner Denver Simplex Tank Mounted Air Compressor for industrial use. 15 hp, 175 PSI, 120H gal tank, 5-year warranty.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Gardner Denver Simplex Tank Mounted Air Compressor
$5,999.99
Quantity: 1
Claim Your Seller Account
Gardner Denver Simplex Tank Mounted Air Compressor
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

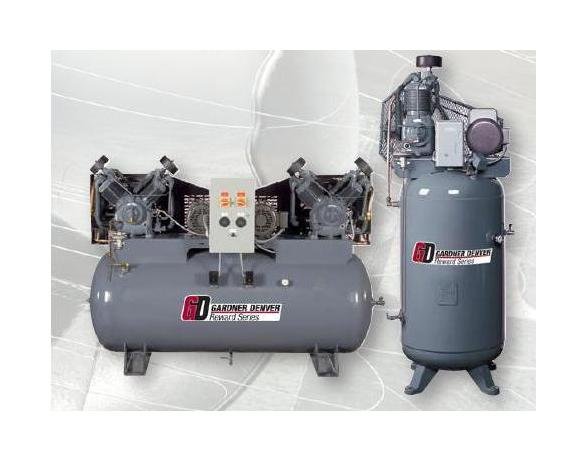

The Gardner Denver Simplex Tank Mounted Air Compressor from the Reward Series™ is a robust solution for industrial applications. This compressor features a 15 hp power, 120H gal tank capacity, and a reliable R40A pump model, ensuring superior performance and durability. Equipped with heavy-duty two-stage pumps, integral cylinder head intercoolers, and high flow disc valves, this compressor delivers consistent airflow at 175 PSI. With a comprehensive five-year warranty on the compressor pump and motors, along with U.L. listed electrical components, this compressor guarantees reliability and longevity for your operations.
Product Specifications
Compressor Pump Warranty 0
Each new Gardner Denver Assembled Unit has a five (5) year warranty on the compressor pump only, against defects in materials or workmanship under normal use and service, from the date of installation or sixty-six (66) months from the date of shipment by Gardner Denver or a Gardner Denver distributor, whichever may occur first. The five-year extended warranty covers parts and labor and is prorated over the five years as follows: Year One — 100% coverage Year Two — 90% coverage Year Three — 80% coverage Year Four — 70% coverage Year Five — 60% coverage Head valves are warranted for Year One only. Gardner Denver makes no warranty on components and/or accessories furnished to Gardner Denver by third parties, such as electric motors, gasoline engines and controls. These are warranted only to the extent of the original manufacturer’s warranty to Gardner Denver. Includes a five-year warranty on the air receiver, pump and motors.
Specifications 175 Psi Rating Cfm Delivery
53.7
Specifications Approximate Weight
1110 lb
Specifications Configuration
Horizontal
Specifications Height
62 in
Specifications Length
74 in
Specifications Power
15 hp
Specifications Pump Model
R40A
Specifications Speed
770 rpm
Specifications Tank Capacity
120H gal
Specifications Variants Ca
CASRSA69
Specifications Variants Std
CASRSA34
Specifications Voltage Vph
208/3
Specifications Width
28 in
Standard Equipment Features 0
Heavy Duty Two Stage, Splash Lubricated Air Compressor Pump(s) Multi-Finned Cylinders Integral Cylinder Head Intercoolers for Cooling Between Stages Reliable High Flow Disc Valves Oversized Main Bearings Balanced Crankshaft Oil Level Site Glass Centrifugal Unloader for Loadless Starting 0-300 PSIG Air Pressure Gauge Bucket High Drain Valve Factory Fill with AEON™ Lubricants OSHA Approved Belt Guard ASME Code Air Receiver – Pressure Relief Valve – Service Valve – Drain Valve – Pressure Gauge U.L. Listed Electrical Components Vertical or Horizontal Configurations Oversize Inlet Filter – Silencers Mounted Magnetic Starter Vibration Isolator Pads Automatic Tank Drain Low Oil Level Monitor Air Cooled Aftercooler Dual Control on 10 HP Simplex and Above
U L Standards 0
Gardner Denver, in common with other major, industrial compressor manufacturers, does not market compressors which are U.L. listed. In general, U.L. is concerned with electrical components that may be utilized on compressor units, rather than a complete compressor package or system. All electrical components used on Gardner Denver compressors are U.L. listed. Each component – motor, starter, pressure switch, control panel – carries a U.L. identification mark on the nameplate or inside the electrical enclosure cover. The mark will be the letters “UR” reversed (as if held up to a mirror), indicating the item is “recognized” by U.L.
