Gardner Denver Simplex Tank Mounted PureAir II Oil-less Compressor
Gardner Denver Simplex Tank Mounted PureAir II Oil-less Compressor
SKU:REC-d02a7b
Experience the pinnacle of oil-less compressed air with the Gardner Denver Simplex Tank Mounted PureAir II.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Gardner Denver Simplex Tank Mounted PureAir II Oil-less Compressor
$3,499.99
Quantity: 1
Claim Your Seller Account
Gardner Denver Simplex Tank Mounted PureAir II Oil-less Compressor
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

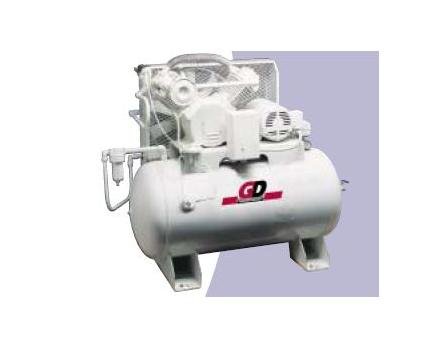

The Gardner Denver Simplex Tank Mounted PureAir II Oil-less Compressor revolutionizes oil-free compressed air technology. With a robust 5 hp motor power and CVE50 pump, this compressor delivers 18.2 cfm at 50 psig for consistent, clean air in healthcare, laboratory, and instrumentation applications. Featuring durable cast iron components, sealed anti-friction bearings, and a 100% duty cycle design, the PureAir II offers unparalleled reliability. Maintenance is a breeze with no oil changes required, backed by a one-year warranty and global parts distribution network for seamless support.

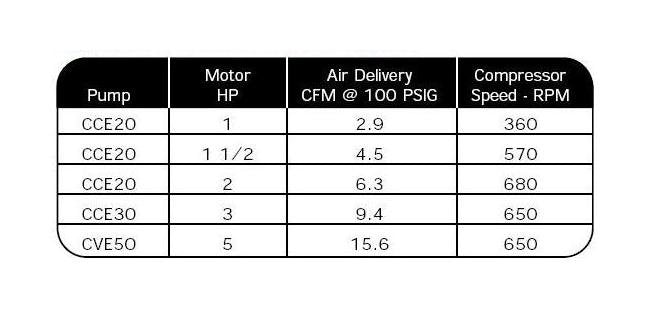

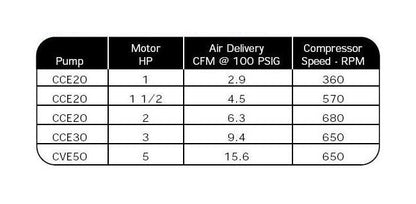

Product Specifications
Specifications Bore Diameter
3.94 in
Specifications Cfm Delivery At 100 Psig
15.6 cfm
Specifications Cfm Delivery At 50 Psig
18.2 cfm
Specifications Height
45 in
Specifications Length
48 in
Specifications Motor Power
5 hp
Specifications Pump
CVE50
Specifications Pump Speed
650 rpm
Specifications Stroke
2.95 in
Specifications Weight
507 lb
Specifications Width
25.5 in
Technical Information 0
Long lasting cast iron, hard chrome plated cylinders. PTFE guide rings prevent the pistons from contact, raising efficiency. Sealed anti-friction bearings in the upper and lower connecting rod ends for increased life. Strong ductile iron crankshafts are mounted with sealed anti-friction bearings in a rugged cast iron crankcase. Cast iron heads and spring-loaded valves with stainless steel cages, phosphoric bronze seats and Swedish steel discs keep your compressor running cool and offer a longer operating life. Large aluminum cooling fan and low compressor speeds keep the PureAir II crankcase, cylinders and heads running cool, reducing wear and increasing the life of the unit. All PureAir II compressors are 100% duty cycle, V-belt-driven packaged units with: Inlet Air Filter Silencers Enclosed Belt Guards Electric Motor Discharge Line Unloader Solenoid Valves Pressure Relief Valves Automatic Start-Stop Controls Check Valves Interconnecting Wiring and Piping Structural Steel Frames Tank-mounted models include horizontal air receivers that are ASME coded MAINTENANCE. Keeping the PureAir II up and running is as simple as checking the machine periodically. And, with no oil or fluids to change, there’s little need for costly maintenance. DURABILITY. With the highest reliability in the business, you can be assured that your PureAir II will always be up and running, 24 hours a day. SERVICE. Should you need help with your PureAir II or have any questions about operation or maintenance, your Gardner Denver Service Representative stands ready to serve you. WARRANTY. All PureAir II units are guaranteed with a one year warranty on the compressor pump and all other parts and components. PARTS. The 24-hour Gardner Denver worldwide parts distribution network can deliver parts and accessories quickly, wherever and whenever they are needed. EXPANDABILITY. Whether you just need a compressor or a complete compressed air system, Gardner Denver has the products, service and expertise to get your system designed, fabricated and shipped directly to you.
