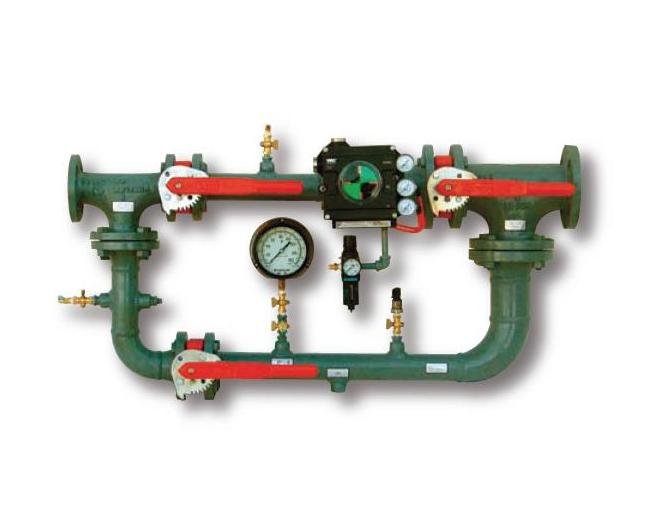

Gardner Denver XMX Series Demand Expander Control System
Gardner Denver XMX Series Demand Expander Control System
SKU:DEM-ae0f05
Optimize your compressed air system with Gardner Denver's XMX Series Demand Expander Control for efficient, precise, and fail-safe performance.
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
Gardner Denver XMX Series Demand Expander Control System
$7,899.99
Quantity: 1
Claim Your Seller Account
Gardner Denver XMX Series Demand Expander Control System
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your compressed air system with the Gardner Denver XMX Series Demand Expander Control System. This system optimizes compressed air storage, reduces pressure demands, and enhances system efficiency. With a Single Valve design for superior flow control, precise demand-flow regulation, and fail-safe operation, this control system ensures consistent pressure levels, maximized compressor efficiency, and reduced air wastage through leaks and unregulated applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
6500 scfm
Specifications Height
38 in
Specifications Inlet Connection
6" FLG.
Specifications Length
65 in
Specifications Outlet Connection
8" FLG.
Specifications Weight
1060 lb
Specifications Width
24 in
Technical Information 0
Storage Management In conventional system designs, the storage (if it exists at all) is merely an extension of the piping and distribution system. When the Supply and the Demand are separated, storage can be reserved to handle instantaneous system events or compressor failures. The compressor automation system control is enhanced with the advantage of real storage when a Demand Expander is added to the system. Artificial Demand is reduced because lower system pressures equate to lower system flows. Leaks will waste less air volume when pressure is reduced. Leaks will also be slower to expand under lower controlled pressure. Unregulated flows will also consume less air as a result of the Demand Expander. System Security The plant can now operate at pressure never before believed achievable due to the security provided by stored upstream volume in the air receivers. System events are not seen by the process. System Stability Most compressed air systems experience pressure fluctuations of 10% to 20%. As compressed air is an ingredient in the plant process, this inconsistency will have a negative impact on production. With Demand Expansion, the process sees only a constant pressure regardless of demand or coincidental system events. Maximizes Compressor Efficiency The use of storage provides the compressor control the ability to make a measured response to a fall or rise in the storage receivers. With an ESP 20/20 compressor controller, the Rate of Pressure Change in the storage receivers is calculated by the unique Bullseye algorithm and intelligent, energy efficient loading and operational decisions will be made. Fail-Safe Operation The XMX Series Demand Expander is provided with a fail open valve both electronically and pneumatically. Should the air signal or the control signal fail, the valve will open 100%. A manual three valve by-pass is included on the assembly to provide for continued air flow during valve maintenance periods. Demand Expander Control The Demand Expander can receiver its control from the Gardner Denver ESP 20/20 Compressed Air Management System or from a stand-alone electronic controller. Both methods provide equal control accuracy. Combining both compressor and Demand Expander control through the ESP 20/20 provides for the coordination of all setpoints to assure maximum system efficiency. Optional Features Optional Inlet Check Valve Optional Inlet “Y” Strainer Optional Control Air Filter and Dryer
