Garvey Gap Transporters
Garvey Gap Transporters
SKU:MAC-f8ce46
Maximize productivity with Garvey Gap Transporters, enhancing material handling efficiency with adjustable features and durable design.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Garvey Gap Transporters
$4,999.99
Quantity: 1
Claim Your Seller Account
Garvey Gap Transporters
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

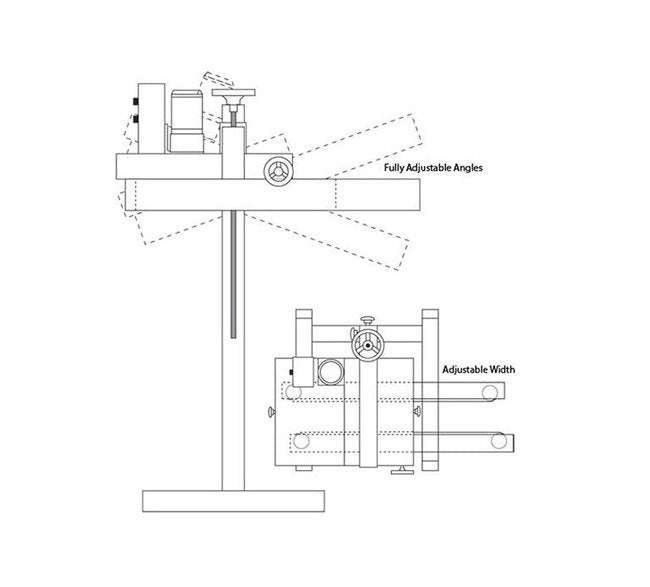

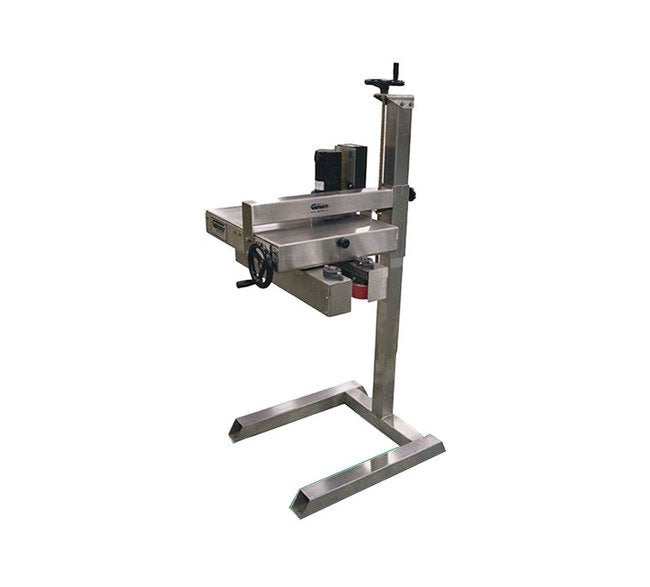

Enhance productivity with Garvey Gap Transporters, a versatile solution for maximizing production throughput by 30%. With adjustable features such as head tilts up to 20°, variable width and elevation settings, and speeds up to 120 ft/min, this portable transporter offers seamless gap transporting, conveying, depucking, elevating, spacing, label inspecting, and coding capabilities. Designed with precision and durability, it features a red alpha tex belt, spring-loaded belt tracks, DC speed control, heavy-duty components, and options for customization, making it ideal for various material handling applications in industrial settings.
Product Specifications
Additional Information Additional Information
Transportation of standing products, eliminating downed product and any debris (before reaching star wheels, screws, fillers, cappers, etc.)Transporting unstable product across a dead plate. Transporting freshly decorated or printed products that must not touch each other between printing and drying conveyors.Re-orienting cylindrical objects from lay-down to up-right, or vice versa.Removal of products from pucks or work holders.Inspection of product bottoms, markings and codings.
Features Features
Red alpha tex beltSingle fileSpring loaded belt tracksD.C. speed control1/4 H.P. D.C. gearmotor 0-120 F.P.M. with output torque of 90 lb./inchPlated steel drive sprocketsAll sprockets are keyed and setscrewedHeavy duty cast relube bearingsHeavy duty automatic drive chain tensioner
Options Options
Long arm 36" centerline to centerline of pulleysShort arm 24"Stainless steel casters1/4 H.P. D.C. gearmotor 0-60 F.P.M. with output torque of 90 lb./inchStainless steel drive sprockets and roller chain
Specifications Adjustable Elevation
24 to 44 in
Specifications Adjustable Width
0 to 6 in
Specifications Brand
Garvey®
Specifications Head Tilts
20 º
Specifications Output Torque
90 lb·in
Specifications Speed
0 to 120 ft/min
