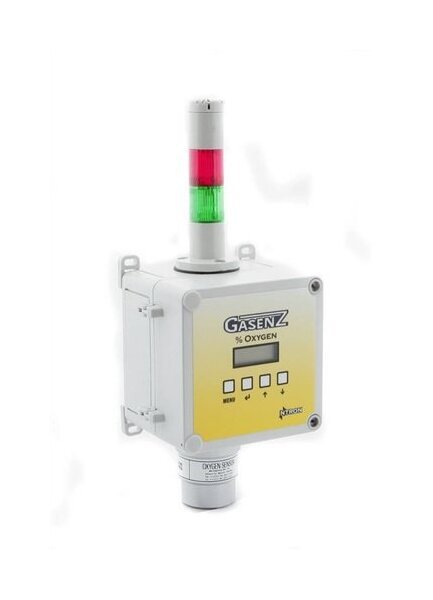

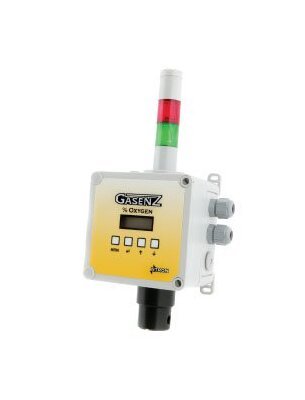

Gasenz 112/100 Ambient Oxygen Analyzer

Name: Gasenz 112/100 Ambient Oxygen Analyzer
Brand: Cleatech LLC
SKU: GAS-83a9d9
Price: 599.99 USD
Availability: OutOfStock

SKU:GAS-83a9d9

Ensure workplace safety with the Gasenz 112/100 Ambient Oxygen Analyzer. Accurate readings, alarm notifications, and versatile applications.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Gasenz 112/100 Ambient Oxygen Analyzer is a high-quality solution specifically crafted for the precise monitoring of Oxygen Deficient Environments, crucial for ensuring safety in various industries such as Gas Generation, Pharmaceutical, and Petrochemical. This analyzer features a Long Life Zirconia sensor and Electrochemical oxygen sensor, allowing for accurate readings with a measurement range of 0 to 25%. Its compact design, LCD display, and 4-button keypad make it user-friendly. With built-in audible and visual alarms, this analyzer provides immediate notification in case of oxygen level deviations. The optional alarm relay contact outputs add an extra layer of safety and versatility, making it an ideal choice for institutional buyers with stringent safety regulations.

Product Specifications

Applications 0

Gas GenerationPharmaceuticalFood and Beverage IndustriesProcess IndustriesPetrochemical industriesChemical StorageWater and WastewaterLPG StoragePaint BoothsSteel Mills

Specifications Alternating Current Ac Voltage Power Requirements

85 to 264 V

Specifications Gas Type Measured

Oxygen

Specifications Maximum Load Current

160 mA

Specifications Measurement Range

0 to 25 %

Specifications Overall Depth

93 mm

Specifications Overall Height

145 mm

Specifications Overall Width

110 mm

Specifications Resolution

0.1% Oxygen

Specifications Response Time T 90

12 sec

Specifications Weight

250 g

Standard Features 0

Low-cost compact ambient oxygen monitorLong life, low maintenance Zirconia sensor optionElectrochemical oxygen sensorLow-cost compact ambient oxygen monitorLCD display and 4 button multifunction keypadAnalogue 4-20 mA output for retransmission of measured signalBuilt-in audible and visual alarms70-230 VAC operating power options24 VDC operating power optionsOptional alarm relay contact outputs

Gasenz 112/100 Ambient Oxygen Analyzer
