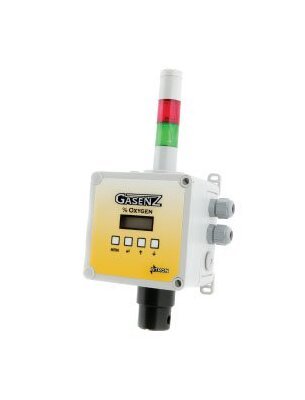

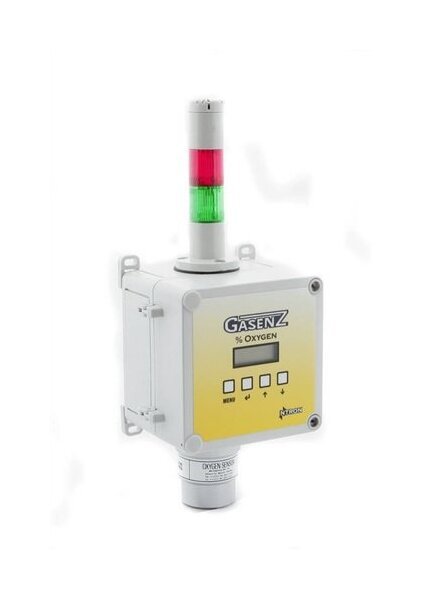

The Gasenz 212/101 Ambient Oxygen Analyzer is a reliable solution designed for monitoring Oxygen Deficient Atmospheres in various work environments, safeguarding against asphyxiation risks posed by inert gases like Nitrogen or CO2. This surface-mountable monitor offers exceptional flexibility to meet diverse oxygen monitoring needs. Equipped with an integrally mounted Oxygen Sensor, alarm indication, and annunciation features, it ensures accurate and timely alerts. With a measurement range of 0 to 25% and a rapid response time of less than 2 seconds, this analyzer guarantees precise oxygen level monitoring. Ideal for industries like Gas Generation, Pharmaceutical, Food and Beverage, Petrochemical, and more.
Product Specifications
Applications 0
Gas GenerationPharmaceuticalFood and Beverage IndustriesProcess IndustriesPetrochemical industriesChemical StorageWater and WastewaterLPG StoragePaint BoothsSteel Mills
Specifications Alternating Current Ac Voltage Power Requirements
85 to 264 V
Specifications Gas Type Measured
Oxygen
Specifications Maximum Load Current
160 mA
Specifications Measurement Range
0 to 25 %
Specifications Overall Depth
93 mm
Specifications Overall Height
145 mm
Specifications Overall Width
110 mm
Specifications Resolution
±0.01% for 0 to 25% range
Specifications Response Time T 90
< 2 sec
Specifications Weight
250 g
Standard Features 0
Low-cost compact ambient oxygen monitorLong life, low maintenance Zirconia sensor optionElectrochemical oxygen sensorLow-cost compact ambient oxygen monitorLCD display and 4 button multifunction keypadAnalogue 4-20 mA output for retransmission of measured signalBuilt-in audible and visual alarms70-230 VAC operating power options24 VDC operating power optionsOptional alarm relay contact outputs
