Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

VAL-a4db1a

Reliable Gate Class 150 Bronze Valve for high-pressure fluid and steam applications. Made of durable cast bronze materials for long-lasting performance.

$49.99
$49.99
Sale

Initiate Order

Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

$49.99

Quantity: 1

Claim Your Seller Account

Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Gate Class 150 Bronze Valve is engineered with a Screw-In-Bonnet design, Rising Stem, and Solid Wedge Disc, ensuring reliable performance in high-pressure applications. With a maximum pressure rating of 150 PSI for fluid up to 406°F and 150 PSI for saturated steam up to 366°F, this valve is designed for durability and precision. Made of high-quality cast bronze materials, this valve meets stringent industry standards and is ideal for hose bed applications.

Product Specifications

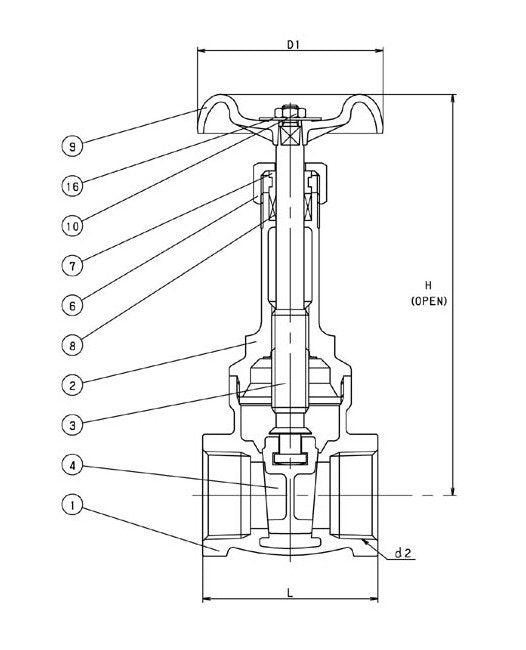

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 – 1) Zinc Die-Cast (B86) (11/4 – 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
1.72
Specifications Carton Qty
24
Specifications Class
AK150L
Specifications Dimension D1
2.76
Specifications Dimension D1 Max
1.132
Specifications Dimension D1 Min
1.128
Specifications Dimension D2
1 inches
Specifications Dimension H
7.09
Specifications Dimension L
2.60
Specifications Dimension L1
1.17
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
