Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

VAL-71561d

Reliable Gate Class 150 Bronze Valve for versatile applications, offering durability and performance.

$99.99
$99.99
Sale

Initiate Order

Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

$99.99

Quantity: 1

Claim Your Seller Account

Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Gate Class 150 Bronze Valve is engineered with precision, featuring a Screw-In-Bonnet design, Rising Stem, and Solid Wedge Disc for optimal performance. With a Class AK150L rating and threaded end size, this valve is built to withstand pressures of up to 150 PSI, making it suitable for a variety of applications including fluid, steam, cold water, oil, and gas. Constructed with high-quality Bronze material, this valve ensures durability and reliability in critical operations. Compliant with ANSI, MSS, and military standards, this valve is a dependable choice for both consumer and institutional buyers.

Product Specifications

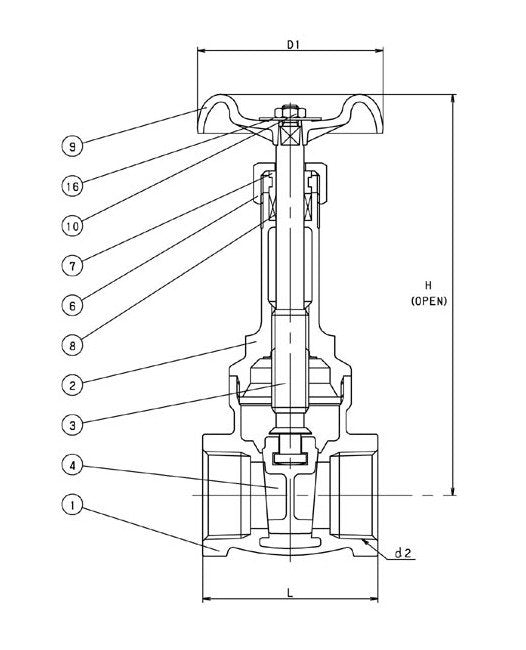

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 – 1) Zinc Die-Cast (B86) (11/4 – 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
6.38
Specifications Carton Qty
8
Specifications Class
AK150L
Specifications Dimension D1
3.94
Specifications Dimension D1 Max
2.133
Specifications Dimension D1 Min
2.128
Specifications Dimension D2
2 inches
Specifications Dimension H
11.65
Specifications Dimension L
3.31
Specifications Dimension L1
1.61
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
