Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

VAL-0f6c6c

Premium Gate Valve - Bronze, C150L, Solder End, 150 PSI, MSS SP-80 Type 2 Design

$79.99
$79.99
Sale

Initiate Order

Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

$79.99

Quantity: 1

Claim Your Seller Account

Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Gate Class 150 Bronze Valve is a high-quality, precision-engineered valve suitable for a wide range of applications. Designed with a Screw-In-Bonnet and Rising Stem for superior control, it features a Solid Wedge Disc for reliable shut-off. Made from durable cast bronze material with solder end size and pressure ratings up to 150 PSI for fluids and saturated steam. Its dimensions and construction meet stringent industry standards for performance and longevity.

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 – 1) Zinc Die-Cast (B86) (11/4 – 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
1.00
Specifications Carton Qty
48
Specifications Class
C150L

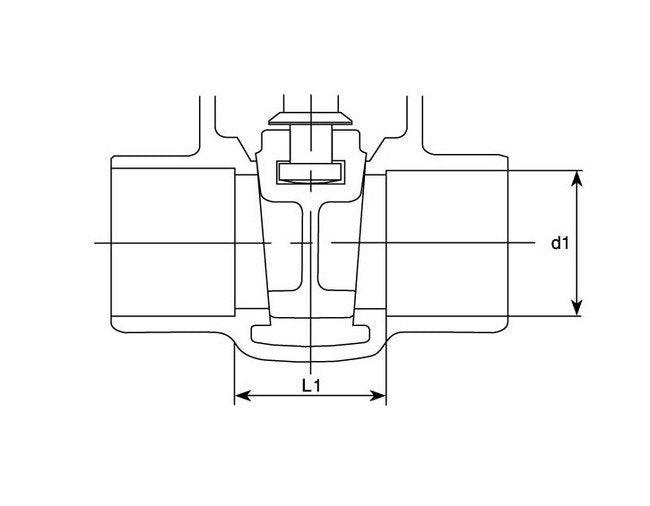

Specifications Dimension D1
2.17
Specifications Dimension D1 Max
0.631
Specifications Dimension D1 Min
0.627
Specifications Dimension D2
1/2 inches
Specifications Dimension H
5.39
Specifications Dimension L
2.01
Specifications Dimension L1
0.93
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
