Gate Class 150 Bronze Valve
Gate Class 150 Bronze Valve
SKU:VAL-fb6b52
High-performance Gate Class 150 Bronze Valve for reliable fluid control in industrial applications.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Gate Class 150 Bronze Valve
$259.99
Quantity: 1
Claim Your Seller Account
Gate Class 150 Bronze Valve
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gate Class 150 Bronze Valve is designed for superior performance and durability. Featuring a Screw-In Bonnet, Rising Stem, and Solid Wedge Disc, this valve ensures secure fluid control. Crafted with high-quality Cast Bronze material, it meets stringent ASTM B62 standards. With a pressure rating of 150 PSI - Fluid to 406°F, this valve is ideal for various applications. Compliant with ANSI and MSS SP-80 Type 2 standards, it guarantees reliability in industrial settings.
Product Specifications

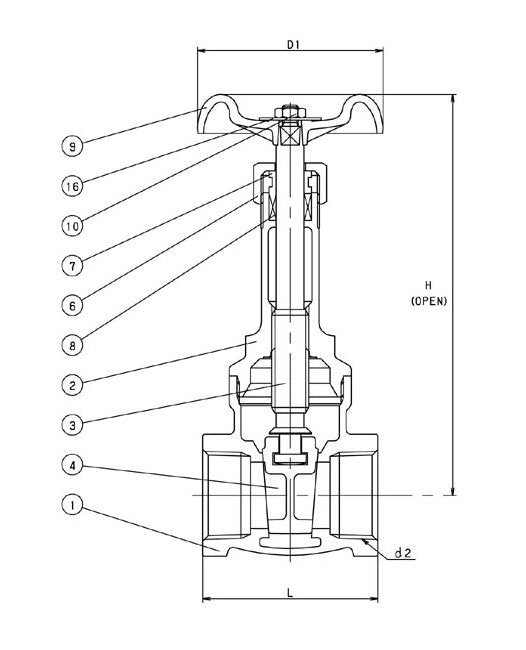

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 â 1) Zinc Die-Cast (B86) (11/4 â 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
20.33
Specifications Carton Qty
3
Specifications Class
AK150L
Specifications Dimension D1
6.10
Specifications Dimension D2
3 inches
Specifications Dimension H
17.01
Specifications Dimension L
5.51
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
