The Gate Class 150 Bronze Valve is a versatile and reliable valve designed for high-pressure applications. Featuring a Screw-In-Bonnet design with a Rising Stem and Solid Wedge Disc, this valve ensures secure shut-off and smooth flow control. Made of high-quality cast bronze material, it meets Class C150L standards and can handle pressures up to 150 PSI, making it suitable for various fluids, steam, water, oil, and gas. With precise dimensions and durable construction, this valve is ideal for Hose Beds applications, providing long-lasting performance and efficient operation.
Product Specifications
Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 â 1) Zinc Die-Cast (B86) (11/4 â 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
20.33
Specifications Carton Qty
3
Specifications Class
C150L

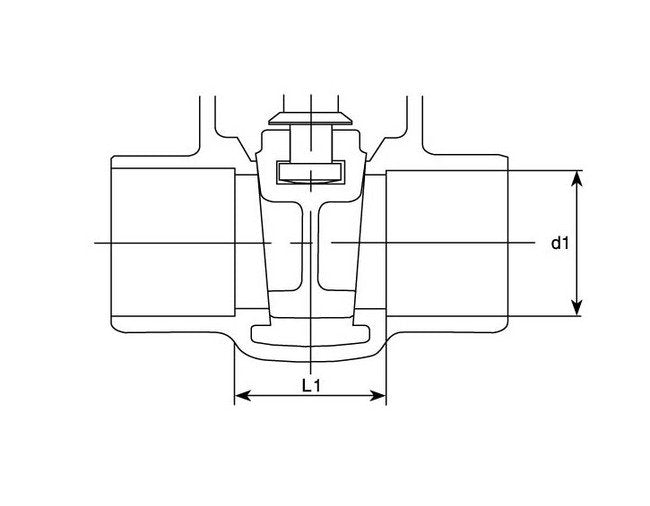

Specifications Dimension D1
6.10
Specifications Dimension D2
3 inches
Specifications Dimension H
17.01
Specifications Dimension L
5.51
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
