Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

VAL-c02f11

High-quality Gate Class 150 Bronze Valve with Screw-In-Bonnet design and Solid Wedge Disc. Meets ANSI and Military Standards.

$64.99
$64.99
Sale

Initiate Order

Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

$64.99

Quantity: 1

Claim Your Seller Account

Gate Class 150 Bronze Valve

Gate Class 150 Bronze Valve

$64.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Gate Class 150 Bronze Valve is a high-quality valve suitable for various applications, featuring a Screw-In-Bonnet design with a Rising Stem and Solid Wedge Disc. Constructed with precision from ASTM B62 Bronze material, this valve ensures reliability and durability. With a pressure rating of 150 PSI for fluids up to 406°F, 150 PSI for saturated steam up to 366°F, and 300 PSI for non-shock cold water, oil, or gas, this valve meets rigorous industry standards such as ANSI B1.20.1, ANSI B16.18, MSS SP-80 Type 2, and Military Standards. Whether for consumer or institutional use, this valve delivers exceptional performance and longevity.

Product Specifications

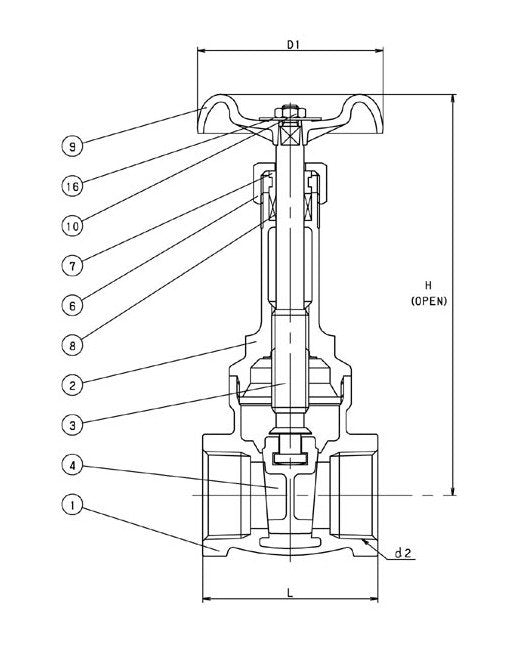

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 – 1) Zinc Die-Cast (B86) (11/4 – 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
4.33
Specifications Carton Qty
12
Specifications Class
AK150L
Specifications Dimension D1
3.54
Specifications Dimension D1 Max
1.633
Specifications Dimension D1 Min
1.628
Specifications Dimension D2
1 1/2 inches
Specifications Dimension H
10.12
Specifications Dimension L
2.91
Specifications Dimension L1
1.21
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
