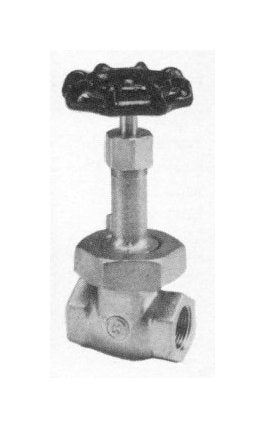

Gate IB652 - Bronze Globe & Gate Valve
Gate IB652 - Bronze Globe & Gate Valve
SKU:VAL-539d0b
Heavy-duty Gate IB652 Bronze Globe & Gate Valve for high-pressure applications. Conforms to MSS SP-80 Type 2 Class 300 standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Gate IB652 - Bronze Globe & Gate Valve
$129.99
Quantity: 1
Claim Your Seller Account
Gate IB652 - Bronze Globe & Gate Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gate IB652 Bronze Globe & Gate Valve is a heavy-duty valve designed for 300 lb. SWP, 1000 lb. WOG (Non-Shock) applications. Featuring a solid wedge disc, rising stem, Cu-Ni seat, and union bonnet, this valve ensures reliable performance. The bronze construction, conforming to MSS SP-80 Type 2 Class 300 standards, offers durability and corrosion resistance for long-term use in various industrial settings.
Product Specifications
Material List 0

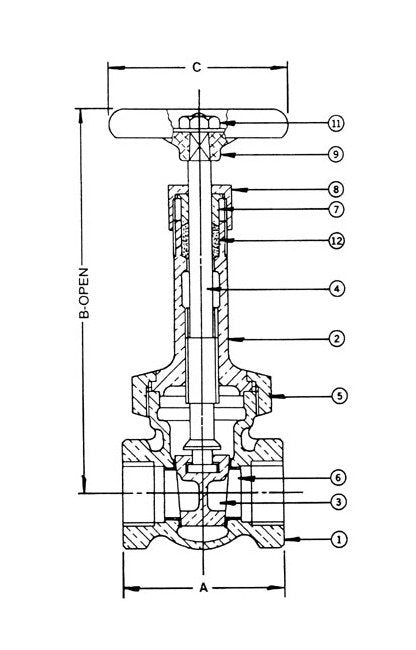

MATERIAL LIST No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Wedge Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Seat Ring Cu-Ni 90-10 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 283 C37700 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Packing Non-Asbestos Commercial
Specifications Dimension A
47.63 mm
Specifications Dimension B
130.18 mm
Specifications Dimension C
57.15 mm
Specifications Material
Bronze
Specifications Size
9.53 mm
