Gate IB652 Bronze Globe & Gate Valve 300 lb.
Gate IB652 Bronze Globe & Gate Valve 300 lb.
SKU:VAL-3afb3c
Heavy-duty Gate Valve with solid bronze construction, Threaded Ends, Conforms to MSS SP-80 Type 2, Class 300 standards
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Gate IB652 Bronze Globe & Gate Valve 300 lb.
$69.99
Quantity: 1
Claim Your Seller Account
Gate IB652 Bronze Globe & Gate Valve 300 lb.
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

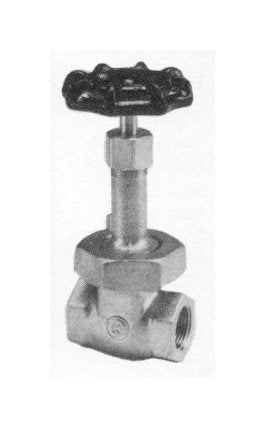

The Gate IB652 Bronze Globe & Gate Valve is engineered for heavy-duty service, boasting a solid wedge disc and rising stem for reliable performance. With threaded ends and a union bonnet, this valve conforms to MSS SP-80 Type 2, Class 300 standards. Made of high-quality bronze with Cu-Ni seat ring and brass components, it ensures durability and corrosion resistance in diverse applications.
Product Specifications
Material List 0

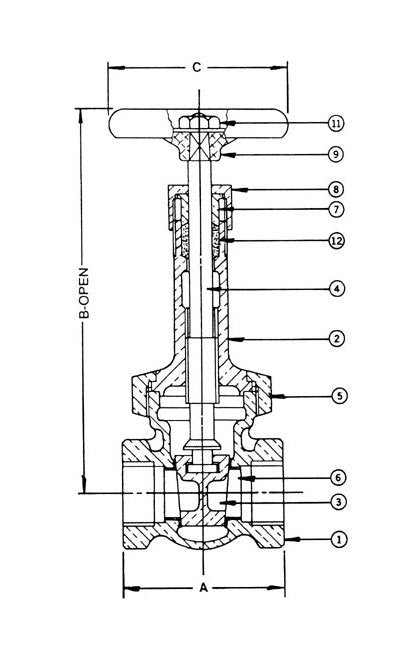

MATERIAL LIST No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Wedge Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Seat Ring Cu-Ni 90-10 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 283 C37700 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Packing Non-Asbestos Commercial
Specifications Dimension A
63.50 mm
Specifications Dimension B
158.75 mm
Specifications Dimension C
69.85 mm
Specifications Material
Bronze
Specifications Size
19.05 mm
