Gate IB652 Bronze Globe & Gate Valve, 300 lb. SWP, 1000 lb. WOG
Gate IB652 Bronze Globe & Gate Valve, 300 lb. SWP, 1000 lb. WOG
SKU:VAL-9ebbf0
High-performance Gate IB652 Bronze Globe & Gate Valve for heavy-duty industrial applications. Conforms to MSS SP-80 Type 2, Class 300 standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Gate IB652 Bronze Globe & Gate Valve, 300 lb. SWP, 1000 lb. WOG
$299.99
Quantity: 1
Claim Your Seller Account
Gate IB652 Bronze Globe & Gate Valve, 300 lb. SWP, 1000 lb. WOG
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

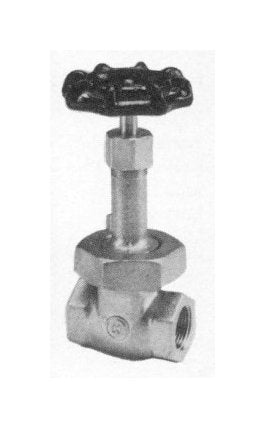

The Gate IB652 Bronze Valve is designed for heavy-duty service with a solid wedge disc and rising stem, ensuring reliable performance. Made of high-quality Bronze material, this valve features a Cu-Ni seat, gland packed union bonnet, and threaded ends for secure installation. Conforming to MSS SP-80 Type 2, Class 300 standards, this valve offers exceptional durability and functionality, ideal for industrial applications requiring robust valves.
Product Specifications
Material List 0

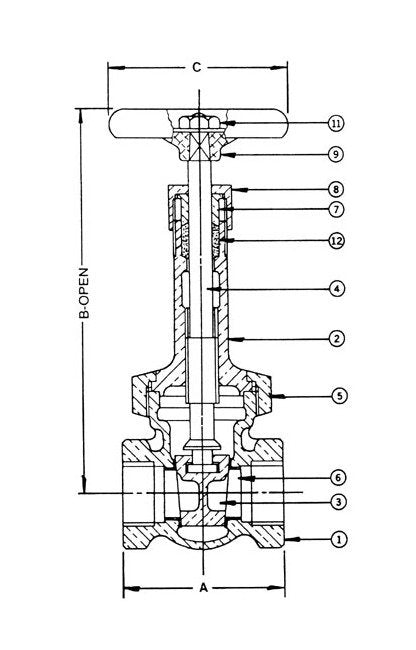

MATERIAL LIST No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Wedge Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Seat Ring Cu-Ni 90-10 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 283 C37700 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Packing Non-Asbestos Commercial
Specifications Dimension A
57.15 mm
Specifications Dimension B
139.70 mm
Specifications Dimension C
63.50 mm
Specifications Material
Bronze
Specifications Size
12.70 mm
