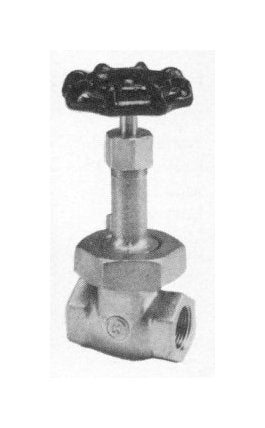

Gate IB652 Bronze Globe & Gate Valve 300lb SWP, 1000lb WOG
Gate IB652 Bronze Globe & Gate Valve 300lb SWP, 1000lb WOG
SKU:VAL-143fb7
Durable Gate IB652 Bronze Valve for heavy-duty use with solid wedge disc and rising stem. Conforms to MSS SP-80 Class 300 standards.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
Gate IB652 Bronze Globe & Gate Valve 300lb SWP, 1000lb WOG
$169.99
Quantity: 1
Claim Your Seller Account
Gate IB652 Bronze Globe & Gate Valve 300lb SWP, 1000lb WOG
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gate IB652 Bronze Valve is engineered for heavy-duty service in industrial applications, featuring a solid wedge disc and rising stem for superior performance. With Cu-Ni seat and gland packing, this valve ensures reliable sealing. Conforming to MSS SP-80 Type 2, Class 300 standards with threaded ends, it offers durability and efficiency for various industrial processes.
Product Specifications

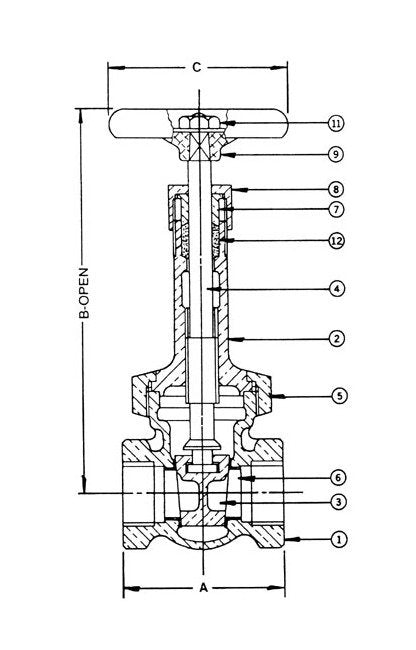

Material List 0
MATERIAL LIST No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Wedge Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Seat Ring Cu-Ni 90-10 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 283 C37700 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Packing Non-Asbestos Commercial
Specifications Dimension A
95.25 mm
Specifications Dimension B
298.45 mm
Specifications Dimension C
107.95 mm
Specifications Material
Bronze
Specifications Size
50.80 mm
