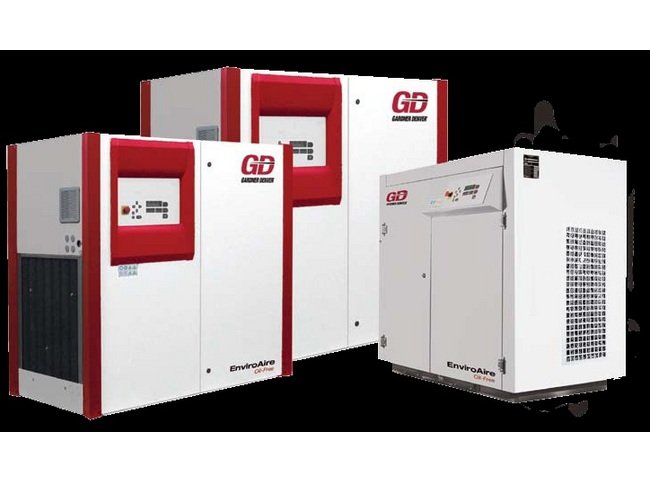

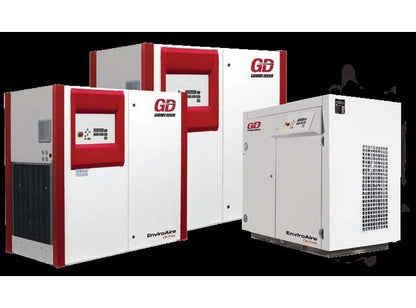

GD EnviroAire Oil-Free Variable Speed Rotary Screw Compressors
GD EnviroAire Oil-Free Variable Speed Rotary Screw Compressors
SKU:ROT-34e48e
Get peace of mind with GD EnviroAire Oil-Free Variable Speed Rotary Screw Compressors - the reliable choice for high-quality compressed air.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
GD EnviroAire Oil-Free Variable Speed Rotary Screw Compressors
$18,999.00
Quantity: 1
Claim Your Seller Account
GD EnviroAire Oil-Free Variable Speed Rotary Screw Compressors
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GD EnviroAire Oil-Free Variable Speed Rotary Screw Compressors ensure peace of mind by eliminating oil-carryover in compressed air supply. With a diverse range of industries relying on Gardner Denver for high-quality clean compressed air, including automotive, aviation, and pharmaceuticals, these compressors guarantee top-notch environmental efficiency. Featuring a high output single screw compression element, simplified construction, and a microprocessor-based control system, these compressors offer reduced downtime, easy servicing, and high-quality air output, making them a reliable and energy-efficient choice for institutional buyers.
Product Specifications
Easy Installation 0
Fully silenced package for low noise levels Free standing package
High Quality Air Output 0
100% Oil-Free construction No oil in compressor = no oil in air Clean, cool oil-free air guaranteed
Leading Edge Technologies 0
The EnviroAire Series combines leading-edge technologies of SR drives and water injected Oil-Free screws for maximum efficiency. New 3-phase motor with increased performance TEFC construction IP55 affects High reliability High energy efficiency Nominal max. power is continuously available The water-injected screw is better suited for VSD application than a dry screw.
Monitoring And Control 0
Microprocessor based compressor control system Machine status display Remote control Accurate pressure transducer control
Reduced Downtime And Easy Servicing 0
No oil or oil filter maintenance required No oil related waste disposal costs 4000 hour service interval Large doors provide easy access to all components
Reduce Operating Costs 0

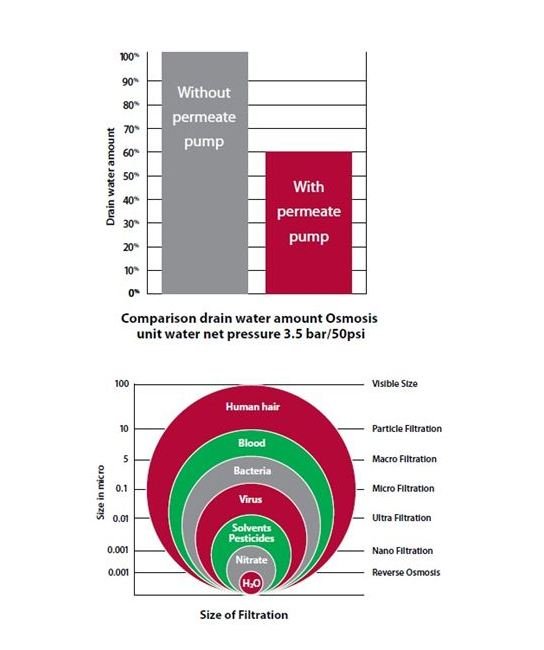

The water purification system using a reverse osmosis membrane filtration system provides the high quality injection water. By the employment of a permeate pump Gardner Denver reduces the necessary water requirement and thus the operating costs.
Simplicity And Reliability 0
Established and proven single stage compression element Simplified construction with no interstage or final air coolers Dependable direct drive system Reduced component count enhances reliability
Specifications Air Cooled Weight
1631 lb
Specifications Height
59.5 in
Specifications Length
66.0 in
Specifications Maximum Free Air Delivered At 100 Psig
120 cfm
Specifications Maximum Working Pressure
145 psig
Specifications Minimum Working Pressure
73 psig
Specifications Min Free Air Delivered At 100 Psig
38 cfm
Specifications Motor
30 hp
Specifications Noise Level
75 dBA
Specifications Water Cooled Weight
1433 lb
Specifications Width
34.2 in

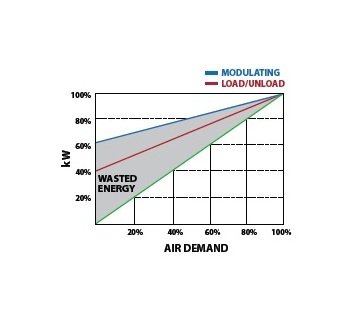

Variable Speed Saves Energy 0
High output single screw compression element Water injected for near isothermal compression Efficient direct drive arrangement Variable speed, high efficiency IP55 drive motor
