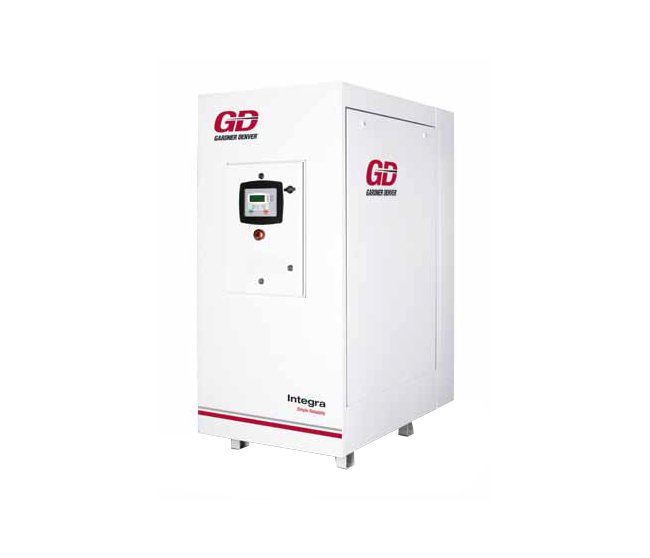

GD Integra® 25 HP Rotary Screw Air Compressor
GD Integra® 25 HP Rotary Screw Air Compressor
SKU:NEW-c2f9c5
Experience peak performance with the GD Integra® 25 HP Rotary Screw Air Compressor - compact, powerful, and reliable for industrial applications.
Regular price
$9,750.00
Regular price
Sale price
$9,750.00
Unit price
per
Initiate Order
GD Integra® 25 HP Rotary Screw Air Compressor
$9,750.00
Quantity: 1
Claim Your Seller Account
GD Integra® 25 HP Rotary Screw Air Compressor
$9,750.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GD Integra® 25 HP Rotary Screw Air Compressor combines cutting-edge technology and engineering excellence to deliver unparalleled performance. With a compact footprint, low noise level, and high efficiency, this compressor is designed to meet the stringent demands of both industrial and institutional settings. Its state-of-the-art integrated compressor air end and flexible package design ensure maximum reliability, while the minimum energy use rotor design guarantees optimal energy efficiency. Backed by a 5-year warranty and complete aftermarket support, the GD Integra® 25 HP Rotary Screw Air Compressor is the ideal choice for efficiency-conscious buyers.
Product Specifications
Acoustic Enclosure
Standard enclosure offers low 75 dBA noise level to ensure quiet operation at any facility.Easy lift-off panels offer fast and convenient access to air end and motor.
Complete Aftermarket Support
Complete line of Gardner Denver™ consumables available to ensure the long life of each compressor!
Flexible Quality Package Design
Non-corrosive control line tubing maximizes reliability - minimizes downtime.Tactfully located controller on the end of each machine for easy multiple unit installation and sequencing.
Integrated Compressor Air End
State-of-the art, Integrated design with 25% fewer parts and connection points than conventional designs delivers maximum reliability.Modular air end design offers a readily accessible bolt-on configuration unlike encapsulated designs that require total replacement.Internal 3-way thermal mixing valve minimizes leak points.Three-stage air/oil separation involving mechanical redirection, cyclone centrifugal type air flow and a pleated filter with inside out final separation to offer less than 2 ppm carryover before the aftercooler.
Minimum Energy Use Rotor Design
Manufactured in one of the most automated, capital intensive rotor cutting plants worldwide. Several thousands of these proven airends are in operation worldwide.Rotor profile with a short seal line saves you money in electrical costs by offering high efficiency through reduced opportunities for air leaks.Precise bearing size that prohibits misalignment. This handles up to 3 times more load capacity than conventional designs to offer you a savings in service costs and extends operation life.
Note
With optional communications/sequencing module.
Optional Equipment
AEON® 9000SP Rotary Screw LubricantAEON® 9000TH High Temperature LubricantAEON® 6000FG Food Grade LubricantAEON® 6000FG-68 High Temperature Food Grade LubricantTEFC Drive MotorODP or TEFC Premium Efficiency Drive MotorWye Delta Motor/StarterCommunication/Sequencing Module
Performance Data Air Delivery At 100 Psig Working Pressure
106 acfm | 3.00 m³/min
Performance Data Air Delivery At 125 Psig Working Pressure
96 acfm | 2.72 m³/min
Performance Data Air Delivery At 150 Psig Working Pressure
79 acfm | 2.23 m³/min
Performance Data Air Delivery At 175 Psig Working Pressure
67 acfm | 1.89 m³/min
Performance Data Frequency
60 Hz
Performance Data Model
EFC
Performance Data Motor Power
25 hp
Performance Data Note For Air Delivery
Capacity measured in accordance with CAGI/PNEUROP acceptance test code PN2CPTC2.
Performance Data Working Pressure
100 psig | 125 psig | 150 psig | 175 psig | 6.9 bar | 8.6 bar | 10.3 bar | 12.1 bar
Specifications Industry Standardscertifications
Compressed Air and Gas Institute (CAGI) | Energy Star Partner | ISO 9001:2008 | NEMA | OSHA
Specifications Operation Direct Current Dc Voltage
24 V
Specifications Phase
3
Specifications Series
GD Integra®
Specifications Service Factor
1.15
Specifications Warranty
5 years
Standard Equipment
Integrated, Single-Stage Rotary Screw Air Compressor with Load/No Load Control3 Phase, 60 Hertz, 1.15 Service Factor, EISA Energy Efficient, Open Drip Proof Drive Motor includes 5 year warranty-standardSmall, Compact FootprintStandard 75 dBA Quiet Sound EnclosureAdjustable Motor BasePackage Mounted Moisture Separator/TrapRadiator-Type Oil Cooler and AftercoolerOSHA Approved Drive GuardSpin-On Type Full Flow Oil FilterEasy Access Service Points Through Removable Door PanelsFactory Fill AEON® 4000 Rotary Screw LubricantHeavy-Duty Inlet Air FilterThermal Mixing Valve for Oil Temperature ControlCorrosion Resistant Control Line TubingAir/Oil Reservoir Pressure Relief ValveMinimum Discharge Pressure/Check ValveAutomatic Blowdown TimerNEMA 4 Control EnclosureMounted and Wired Full-Voltage Magnetic Motor StarterControl Voltage TransformerEmergency Stop ButtonControl Cable KitCSA Labeled and Approved Electrical Controls and WiringAirSmart™ microprocessor controllerLow voltage 24 VDC operationTwo pressure transducer inputsSequence capability for control of up to eight AirSmart™ controlled compressorsRS-232 Serial communications for local monitoring (With optional communications/sequencing module). Ethernet communications for remote monitoring (With optional communications/sequencing module).
Weightsdimensions Approximate Height
65 in | 1651 mm
Weightsdimensions Approximate Length
47.5 in | 1206 mm
Weightsdimensions Approximate Shipping Weight Enclosed
1200 lb | 544 kg
Weightsdimensions Approximate Width
29.5 in | 750 mm
Weightsdimensions Note For Approximate Dimensions
Dimensions shown are nominal for all enclosed models.
Weightsdimensions Sound Level With Quiet Enclosure
75 dBA
