GD Integra Rotary Screw Air Compressor - Efficient & Reliable
GD Integra Rotary Screw Air Compressor - Efficient & Reliable
SKU:ROT-d41d8c
Maximize efficiency and reliability with GD Integra Rotary Screw Air Compressor - perfect for institutional use.
Regular price
$6,799.99
Regular price
Sale price
$6,799.99
Unit price
per
Initiate Order
GD Integra Rotary Screw Air Compressor - Efficient & Reliable
$6,799.99
Quantity: 1
Claim Your Seller Account
GD Integra Rotary Screw Air Compressor - Efficient & Reliable
$6,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

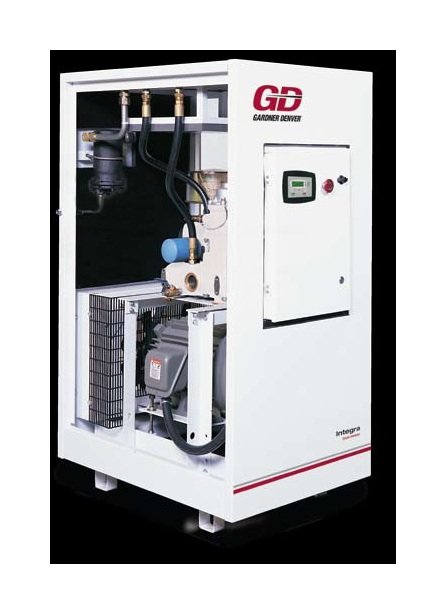

The GD Integra Rotary Screw Air Compressor offers absolute integration and maximum reliability for institutional and government needs. With Enduro airends that optimize air production efficiency, microprocessor-controlled AirSmart™ technology for easy operation and maintenance, and a compact design with low noise emissions, the Integra is a complete package for seamless air compression. Standard equipment includes a 5-year warranty, quiet sound enclosure, moisture separator/trap, and more. Optional equipment and additional lubricant options are available to customize to specific requirements.
Product Specifications

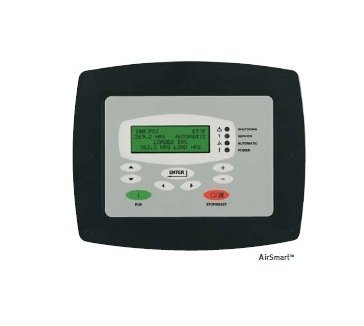

Airsmart Microprocessor Controller 0
Low voltage 24 VDC operation Two pressure transducer inputs Informative control panel – 4 line by 20 character LCD display – 4 status LEDs for “at a glance” compressor status – 9 buttons for easy control and menu navigation – Multiple language support The controller is feature rich with maintenance and error handling information including: – 29 different sources for advisories – 68 different sources for system shutdown – Advisory/shutdown history stored in non-volatile memory > Last 6 advisories > Last 6 shutdowns – Distributor contact information Part number is displayed when consumable item causes advisory or shutdown Sequence capability for control of up to eight AirSmart controlled compressors (With optional communications/sequencer module.) RS-232 serial communications for local monitoring (With optional communications/sequencer module.) Ethernet communications for remote monitoring (With optional communications/sequencer module.)

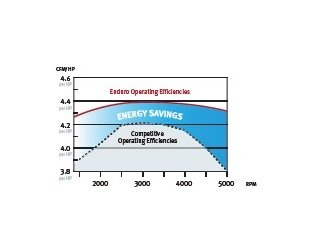

Efficient Airends 0
Enduro airends are more than reliable. Designed for efficiency over the widest speed range in the industry, Enduro airends make more air using less power than competitive offerings. Thus, with Integra compressors, you can be sure you have minimized the largest cost component of owning a compressor-electrical cost.
Never Out Of Control 0
Integra compressors use microprocessor control technology because it’s the simplest, yet most powerful compressor control design available. These controllers are built on the foundation of being easy to operate and read, so you just push a button and get back to work. Then if service is necessary or a problem exists with the compressor, the controller communicates the need. With the AirSmart™ controller, you don’t waste time troubleshooting or tracking service requirements. Integra controllers are designed to take control!
Optional Equipment 0
AEON® 9000SP Rotary Screw Lubricant AEON® 9000TH High Temperature Lubricant AEON® 6000FG Food Grade Lubricant AEON® 6000FG-68 High Temperature Food Grade Lubricant TEFC Drive Motor ODP or TEFC Premium Efficiency Drive Motor Wye Delta Motor/Starter Communication/Sequencing Module
Standard Equipment 0
Integra 20–50 HPIntegrated, Single-Stage Rotary Screw Air Compressor with Load/No Load Control 3 Phase, 60 Hertz, 1.15 Service Factor, EPAct Energy Efficient, Open Drip Proof Drive Motor includes 5 year warranty-standard Small, Compact Footprint Standard 75 dBA Quiet Sound Enclosure Adjustable Motor Base Package Mounted Moisture Separator/Trap Radiator-Type Oil Cooler and Aftercooler OSHA Approved Drive Guard Spin-On Type Full Flow Oil Filter Easy Access Service Points Through Removable Door Panels Factory Fill AEON® 4000 Rotary Screw Lubricant Heavy-Duty Inlet Air Filter Thermal Mixing Valve for Oil Temperature Control Corrosion Resistant Control Line Tubing Air/Oil Reservoir Pressure Relief Valve Minimum Discharge Pressure/Check Valve Automatic Blowdown Timer NEMA 4 Control Enclosure – Mounted and Wired Full-Voltage Magnetic Motor Starter – Control Voltage Transformer – Emergency Stop Button Control Cable Kit CSA Labeled and Approved Electrical Controls and Wiring AirSmart microprocessor controller – Low voltage 24 VDC operation – Two pressure transducer inputs – Sequence capability for control of up to eight AirSmart controlled compressors – RS-232 Serial communications for local monitoring (4) – Ethernet communications for remote monitoring (4)
