GE Electric Motor - End Mounted AC Motor | EPAct/General Purpose

Name: GE Electric Motor - End Mounted AC Motor | EPAct/General Purpose
Brand: Gainesville Industrial Electric Co.
SKU: ELE-f133dc
Price: 449.99 USD
Availability: OutOfStock

SKU:ELE-f133dc

Reliable GE Electric Motor with EPAct compliance for commercial and industrial use.

$449.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

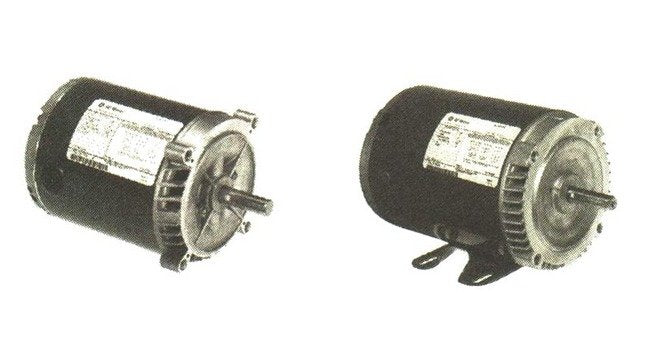

The GE Electric Motor - End Mounted AC Motor is a reliable solution for commercial and industrial applications. This motor boasts a cast iron frame compliant with MG1-31 standards, ball bearings, and EPAct efficiency levels for optimal performance. With an Open Dripproof (ODP) design and NEMA C-face mounting configuration, this motor is suitable for various equipment including pumps, machine tools, and speed reducers. It is designed for three-phase power and offers a Service Factor (SF) of 1.15, ensuring efficient operation. Whether for commercial pumps, industrial pumps, or other equipment requiring a NEMA C-face mount, this GE motor delivers high-quality performance and durability.

Product Specifications

Applications 0

Designed for use on commercial and industrial pumps, centrifugal and hydraulic pumps, machine tools, speed reducers, and other equipment requiring NEMA C-face mounting configuration, where three phase power is available.Commercial PumpsIndustrial PumpsCentrifugal PumpsHydraulic PumpsMachine ToolsSpeed ReducersOther equipments

Specifications Base

Specifications Category

EPACT/General Purpose

Specifications C Dimension

13.34

Specifications Full Load Ampere Fla Np

8.9-8.2 / 4.1 amps

Specifications Manufacturer

GE Motors and Controls

Specifications Motor Code

Specifications Motor Type

End Mounted

Specifications Multiplier Symbol

G2-1CAC

Specifications Nema Frame

145TC

Specifications Normally Stocked

Yes

Specifications Number Of Phase

Three Phase

Specifications Service Factor Sf

1.15

Specifications Style

Dripproof

Specifications Voltage

208-230 volts | 460 volts

Specifications Weight

44 lbs
