GE Electric Winch Series 200
GE Electric Winch Series 200
SKU:RIG-f3c02f
Powerful and durable electric winch designed for heavy-duty lifting and pulling applications. Features 20HP motor, 10,000 lbs capacity, and advanced safety features.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
GE Electric Winch Series 200
$6,999.99
Quantity: 1
Claim Your Seller Account
GE Electric Winch Series 200
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

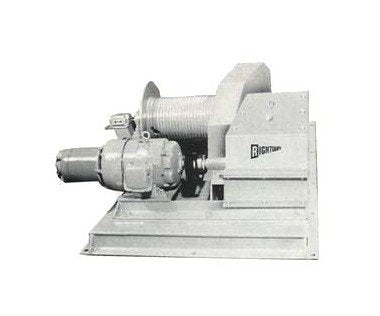

The Series 200 Model GE Electric Winch is a powerhouse designed for heavy-duty lifting and pulling applications. With a robust 20 HP motor, it delivers a full load capacity of 10,000 lbs. Features like an electric brake, overspeed automatic load holding brake, and torque limiter ensure safe and efficient operation. The winch is constructed with all-weather durability, large diameter drums for extended wire rope life, and a 5:1 structural safety factor, making it ideal for demanding industrial settings.
Product Specifications
Specifications Capacity Full Load Running
10000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
900 ft.
Specifications Drum Diameter
14 inches
Specifications Line Speed
60 FPM
Specifications Motor
20 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
5250 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
25 inches
Specifications Winch Length
61 inches
Specifications Winch Width
61 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
475 ft.
Specifications Wire Rope Size
5/8 inches
Standard Features 0

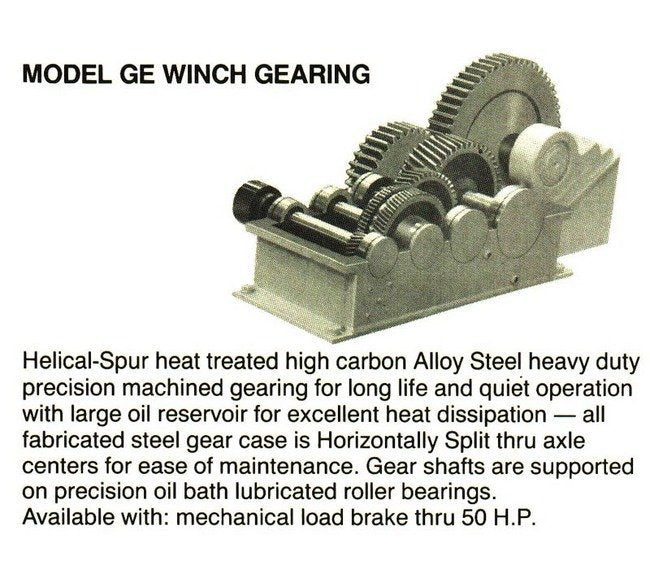

Total power train enclosed oil lubricatedHigh torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model GE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
