GE EPAct/General Purpose 3-Phase AC Motor, 230/460 Volts, 284T Frame

Name: GE EPAct/General Purpose 3-Phase AC Motor, 230/460 Volts, 284T Frame
Brand: Gainesville Industrial Electric Co.
SKU: ELE-d691d4
Price: 799.99 USD
Availability: OutOfStock

SKU:ELE-d691d4

High-efficiency GE Motors: GE EPAct/General Purpose 3-Phase AC Motor with cast iron construction, ball bearings, and EPAct efficiency levels for energy savings.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

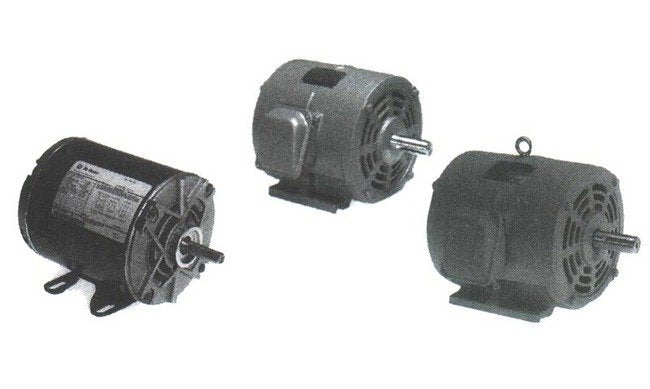

The GE Electric Motor - General Purpose AC Motor is a high-efficiency motor designed for general applications, offering reliability and performance. Featuring cast iron construction, ball bearings, and compliance with MG1-31 at 460 volts, this motor meets EPAct efficiency levels for energy savings. With options for Open Dripproof (ODP) or Totally Enclosed Fan Cooled (TEFC), including Severe Duty and Explosion Proof models, this motor is versatile for various environments. The three-phase motor is base-mounted with a 1.15 service factor, ensuring optimal performance under moderate to high starting torques.

Product Specifications

Applications 0

Designed for general purpose applications with moderate to high starting torques. Moderate to high starting torques.

Note 0

Data subject to change without notice. Calculated data only. Consult Elitenet

Specifications Base

Ftd

Specifications Category

EPACT/General Purpose

Specifications C Dimension

22.9

Specifications Full Load Ampere Fla Np

38.2 / 19.1 amps

Specifications Manufacturer

GE Motors and Controls

Specifications Motor Code

Specifications Motor Type

Base Mounted

Specifications Multiplier Symbol

G4-7DEZ

Specifications Nema Frame

284T

Specifications Nominal Efficiency

90.2

Specifications Normally Stocked

Specifications Number Of Phase

Three Phase

Specifications Service Factor Sf

1.15

Specifications Style

Dripproof

Specifications Voltage

230 volts | 460 volts

Specifications Weight

391 lbs

GE EPAct/General Purpose 3-Phase AC Motor, 230/460 Volts, 284T Frame
