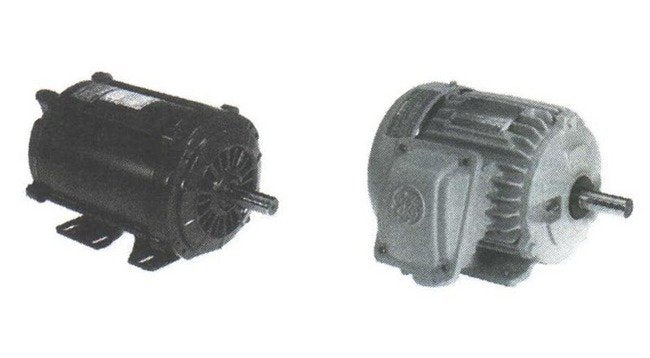

GE Explosion Proof Motor - Class I, Group D; Class II, Groups F and G
GE Explosion Proof Motor - Class I, Group D; Class II, Groups F and G
SKU:ELE-27155b
GE Explosion Proof Motor - Hazardous Location Motor with Ball Bearings & EPAct (KE) Design
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
GE Explosion Proof Motor - Class I, Group D; Class II, Groups F and G
$699.99
Quantity: 1
Claim Your Seller Account
GE Explosion Proof Motor - Class I, Group D; Class II, Groups F and G
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The General Electric Explosion Proof Motor is a top-tier solution designed for hazardous locations in industrial settings. With a motor type of Explosion Proof and base mounted style, it complies with Class I, Group D; Class II, Groups F and G standards. Featuring ball bearings and an EPAct (KE) design, this motor operates at 230 volts or 460 volts. It is ideal for applications in grain elevators, gasoline refineries, paint and varnish plants, flour and feed mills, and coal plants. Meeting stringent industry requirements, this GE motor ensures reliable performance in demanding environments.
Product Specifications
Applications 0
Explosion proof are designed for general use or fan duty in hazardous locations like grain elevators, gasoline refineries, paint and varnish plants, flour and feed mills, or coal plants.Grain ElevatorsGasoline RefineriesPaint and Varnish PlantsFlour and Feed MillsCoal Plants
Specifications Base
WB
Specifications Category
Explosion Proof
Specifications C Dimension
13.49
Specifications Full Load Ampere Fla Np
3.2 / 1.6 amps
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Code
KE
Specifications Motor Type
Explosion Proof
Specifications Multiplier Symbol
G2-1XP
Specifications Nema Frame
143T
Specifications Normally Stocked
No
Specifications Number Of Phase
Three Phase
Specifications Prot
Auto
Specifications Service Factor Sf
1
Specifications Style
Base Mounted - Class I, Group D; Class II, Groups F and G
Specifications Voltage
230 volts | 460 volts
Specifications Weight
36 lbs
