GE Explosion Proof Motor - Class I & II Groups D, F, G

Name: GE Explosion Proof Motor - Class I & II Groups D, F, G
Brand: Gainesville Industrial Electric Co.
SKU: ELE-c4be9c
Price: 2899.99 USD
Availability: OutOfStock

SKU:ELE-c4be9c

Reliable GE Explosion-Proof Motor for hazardous locations. Base mounted, meets Class I & II standards.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

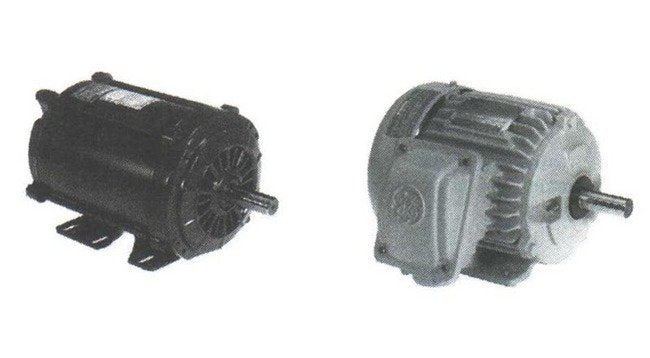

The GE Explosion Proof General Electric Motor is a robust solution designed for hazardous locations like grain elevators, refineries, and mills. With a base mounted design and ball bearings, it meets stringent standards for Class I (Group D) and Class II (Groups F, G) environments. Featuring a three-phase motor with voltages of 230 and 460, NEMA Frame 324T, and Service Factor 1.15, this motor ensures reliable operation in challenging industrial settings.

Product Specifications

Applications 0

Explosion proof are designed for general use or fan duty in hazardous locations like grain elevators, gasoline refineries, paint and varnish plants, flour and feed mills, or coal plants.Grain ElevatorsGasoline RefineriesPaint and Varnish PlantsFlour and Feed MillsCoal Plants

Specifications Base

Ftd

Specifications Category

Explosion Proof

Specifications C Dimension

29.93

Specifications Full Load Ampere Fla Np

90.5 / 45.2 amps

Specifications Manufacturer

GE Motors and Controls

Specifications Motor Code

Specifications Motor Type

Explosion Proof

Specifications Multiplier Symbol

G5-7XPZ

Specifications Nema Frame

324T

Specifications Normally Stocked

Yes

Specifications Number Of Phase

Three Phase

Specifications Prot

Tstat

Specifications Service Factor Sf

1.15

Specifications Style

Base Mounted - Class I, Group D; Class II, Groups F and G

Specifications Voltage

230 volts | 460 volts

Specifications Weight

717 lbs
