GE Flotrex AP Pleated Filter
GE Flotrex AP Pleated Filter
SKU:PLE-1b190d
GE Flotrex AP Pleated Filter with FDA-approved polypropylene microfiber media for precise and efficient air, gas, and liquid filtration.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
GE Flotrex AP Pleated Filter
$35.99
Quantity: 1
Claim Your Seller Account
GE Flotrex AP Pleated Filter
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GE Flotrex AP Pleated Filter features gradient density thermally-bonded polypropylene microfiber media that offers exceptional solids-holding capacity and precise micron retention ratings. Absolute-rated for air, gas, and liquid filtration with minimal pressure drop from 0.65 to 40 microns, these filters are constructed with high-purity polypropylene materials meeting FDA requirements for food contact. With a variety of elastomer material options, these filters provide reliable filtration for prefiltration, chemical filtration, pharmaceuticals, and biological fluids. Additionally, meeting USP class VI-121°C Plastics standards, these filters ensure chemical compatibility and low residue levels.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Flotrex AP filters may be autoclaved or in situ steam sterilized (up to 257ºF [125ºC], 30-minute cycles) for a maximum accumulated exposure of 10 hours. Alternately, the filters may be sanitized with compatible chemical agents.GE certifies that the material contained in its Flotrex AP pleated filters meet U.S. FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact GE technical services. Flotrex AP filters meet the test criteria for USP class VI-121ºC Plastics.Aqueous extracts from Flotrex AP filters contain less that 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues.GE filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility.
Dimensions Effective Filtration Area
4 ft² | 0 m²
Dimensions Filter Model
FAP01
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0

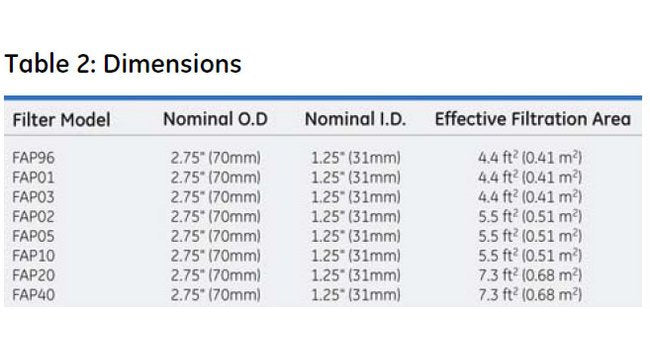

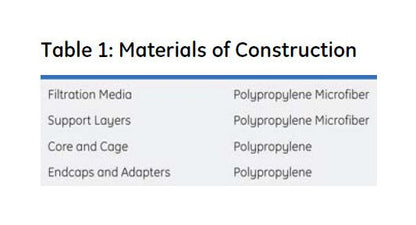

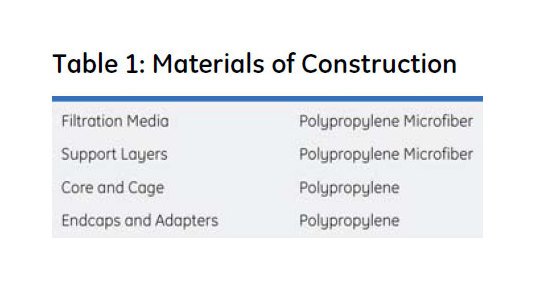

Flotrex AP filters are available the following absolute pore size micron ratings: 0.65, 1, 2, 3, 5, 10, 20 and 40 µm. Tables 1, 2, 3, 4 and 5 show further details on materials of construction, dimensions, operational limits and flow performance in air and water.
MATERIALS OF CONSTRUCTION CORE AND CAGE
Polypropylene
Materials Of Construction Endcaps And Adapters
Polypropylene
Materials Of Construction Filtration Media
Polypropylene Microfiber
Materials Of Construction Support Layers
Polypropylene Microfiber
Operational Limits Maximum Forward Differential Pressure 70f 21c
60 psi | 4.14 bar
Operational Limits Maximum Operating Temperature At 10 Psid 07 B
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure 70f 21c
30 psi | 2.07 bar
Specifications Absolute Micron Rating
1.0 µm
Specifications Elastomer Material
Buna-N | EPDM | PTFE Encapsulated Viton | Silicone | Viton
Specifications End 1 Adapter
226 O-Ring Stainless Steel Support Ring
Specifications End 2 Adapter
120 O-Ring | 213 O-Ring | Closed End Cap | Fin Adapter | Open End Gasket
Specifications Nominal Cartridge Length
40 in | 102 cm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries.
Specifications Type
FAP
Applications 0
Typical Flotrex AP filtration applications include:Prefiltration and Final Chemical Filtration - broad chemical compatibilityPrefiltration of Pharmaceuticals and Biological Fluids - dependable protection for final filtersHigh Throughput for Beer Filtration
