GE Flotrex AP Polypropylene Microfiber Capsule Filters
GE Flotrex AP Polypropylene Microfiber Capsule Filters
SKU:PLE-40ed07
GE Flotrex AP Capsule Filters - Exceptional particle retention, broad chemical compatibility, FDA-compliant.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
GE Flotrex AP Polypropylene Microfiber Capsule Filters
$79.99
Quantity: 1
Claim Your Seller Account
GE Flotrex AP Polypropylene Microfiber Capsule Filters
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

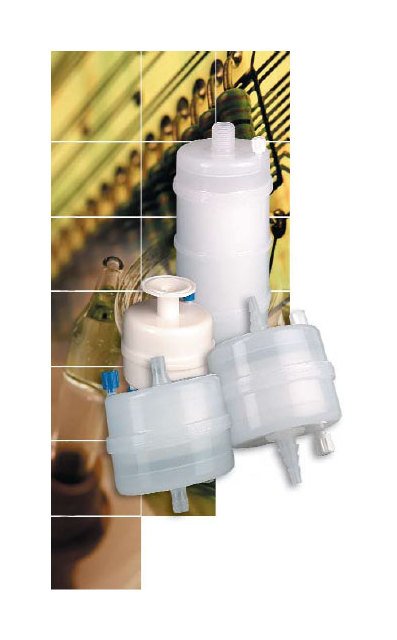

The GE Flotrex AP Capsule Filters with Polypropylene Microfiber Media offer exceptional particle retention and service life. With a 0.65 µm absolute micron rating and all-polypropylene construction, these filters provide cost-effective and reliable filtration for a wide range of applications. Featuring broad chemical compatibility, the CFAP filters are suitable for fine chemical filtration, pre-filtration of pharmaceuticals, and more. Certified to meet FDA food contact requirements and USP class VI-121ºC Plastics standards, these filters ensure quality and safety in diverse filtration needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Flotrex AP Capsule filters may be sanitized with a variety of commonly used chemical agents. The capsules may be repeatedly autoclaved (121ºC 30 min) for up to 5 cycles.GE certifies that the materials contained in its Flotrex AP Capsule filters meet U.S. FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact the GE Technical Services Department. Flotrex AP filters meet the test criteria for USP class VI-121ºC Plastics.GE filter capsules are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.
Applications 0
Filtration of fine chemicals used in electronics manufacturingFiltration of inks, dyes and coatingsPre-filtration of pharmaceuticals, biologicals and cosmeticsVent and process gas filtrationPoint-of-use water filtrationFiltration of eyeglass lens monomers
Dimensions Diameter
3.5 in | 9 cm
Dimensions Effective Filtration Area
5 ft² | 4831 cm²
Dimensions Length
11.5 - 13.0 in | 29 - 33 cm
Features And Benefits 0
Flotrex AP (CFAP) Capsules have 100% polypropylene constructionThermally bonded, gradient density polypropylene microfiber mediaBroad chemical compatibilitySuitable for both gas and liquid filtrationConsistent, precise particle retention combined with high loading capacityEconomic alternative to membrane filters in selected applicationsIdeal for batch or small volume processesOptionally available with opaque housings for use with light-sensitive materials
Materials Of Construction Filtration Media
Polypropylene Microfiber
Materials Of Construction Structural Components
Polypropylene
Materials Of Construction Support Layers
Polypropylene Microfiber
Operational Limits Maximum Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 30 Psi 21 Ba
110 ºF | 43 ºC
Operational Limits Maximum Operational Pressure 70f 21c In Gas
55 psi | 3.8 bar
Operational Limits Maximum Operational Pressure 70f 21c In Liqui
80 psi | 5.5 bar
Specifications Absolute Micron Rating
0.65 µm
Specifications Capsule Size
Large
Specifications Connections
1.5" (38.1 mm) Sanitary Flange
Specifications Housing Style
Natural Polypropylene
Specifications Note
All products mentioned are trademarks of the General Electric Company and may be registered in one or more countries.
Specifications Type
CFAP
