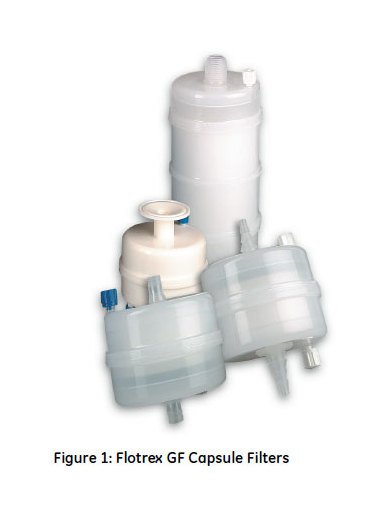

GE Flotrex GF Capsules with Glass Microfiber Media
GE Flotrex GF Capsules with Glass Microfiber Media
SKU:PLE-7b8010
Experience superior particle retention with GE Flotrex GF Capsules for efficient pre- and final filtration in various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
GE Flotrex GF Capsules with Glass Microfiber Media
$49.99
Quantity: 1
Claim Your Seller Account
GE Flotrex GF Capsules with Glass Microfiber Media
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GE Flotrex GF Capsules with Glass Microfiber Media are designed for exceptional particle retention and prolonged service life, perfect for applications with heavy particle loads. Constructed with acrylic resin-bonded glass microfiber media and a polypropylene structure, these filters offer reliable protection for final membrane filters. They excel in pre-filtration for pharmaceuticals, cosmetic filtration, protozoan reduction in water, and more. This product is autoclavable, complies with FDA food contact regulations, and meets USP class VI-121°C Plastics standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0

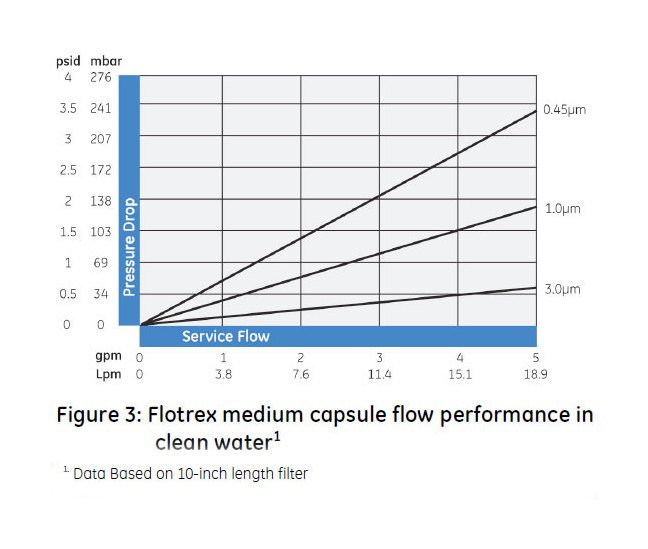

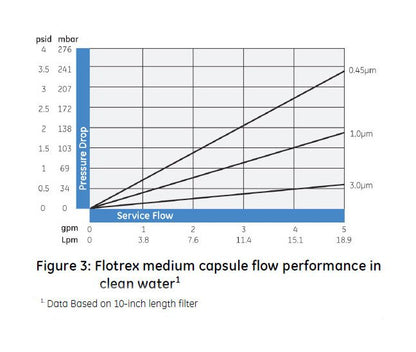

Flotrex GF filters may be autoclaved or in-situ steam sterilized (up to 257ºF [125ºC], 30 minute cycles) for a maximum accumulated exposure of 10 hours. Alternatively, the filters may be sanitized with compatible chemical agents.GE certifies that the materials contained in its Flotrex GF Capsule filters meet U.S. FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact the GE Technical Services Department. Flotrex GF filters meet the test criteria for USP class VI-121ºC Plastics.GE Water & Process Technologies filter capsules are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.Figures 2, 3 and 4 show the test data results of flow performance for the small, medium and large Flotrex GF Capsule Filters using a 10-inch length filter.
Filter Dimensions Capsule Size
Medium
Filter Dimensions Diameter
3.5 in | 9 mm
Filter Dimensions Effective Filtration Area
1.9 ft² | 1765 cm²
Filter Dimensions Length
7.6 - 9.1 in | 19 - 23 cm
Materials Of Construction Filtration Media
Acrylic Resin-Bonded Glass Microfiber
Materials Of Construction Structural Components
Polypropylene
Materials Of Construction Support Layers
Polypropylene Microfiber
Operational Limits Maximum Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 30 Psi 21 Ba
110 ºF | 43 ºC
Operational Limits Maximum Operational Pressure 70f 21c In Gas
55 psi | 3.8 bar
Operational Limits Maximum Operational Pressure 70f 21c In Liqui
80 psi | 5.5 bar
Specifications Absolute Micron Rating
1.0 µm
Specifications Connection
1.5" Sanitary Flange
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries
Specifications Type
CFGF
Applications 0
Pre-filtration for a wide variety of pharmaceuticals including serums, tissue culture media, and protein solutionsPre- and final filtration of cosmeticsPre-filtration of beveragesFinal filtration of beverages that do not require membrane filtrationFiltration of water for protozoan reductionFiltration of compatible paints and coatings
