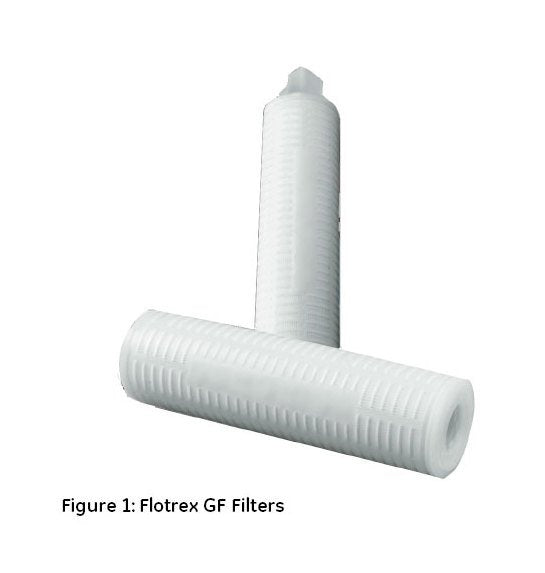

The GE Flotrex GF Pleated Filter Cartridge with Glass Microfiber Media is a highly efficient absolute rated filter designed for the removal of Cryptosporidium and Giardia cysts. With a 1.0-micron absolute rating certified by NSF International Standard 53, this filter is ideal for final filtration applications in bottled water, pharmaceuticals, cosmetics, beverages, paints, and coatings. The filter is constructed with high-quality materials, meeting US FDA requirements for food contact and USP Class VI-121C Plastics standards, ensuring safe and reliable filtration. GE's commitment to liquid, air, and gas treatment is exemplified in the Flotrex GF filter, offering long service life and high throughput for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Flotrex GF filters may be autoclaved or in situ steam sterilized (up to 257ºF [125ºC] 30-minute cycles) for a maximum accumulated exposure of 10 hours. Alternatively, the filters may be sanitized with compatible chemical agents.GE certifies that the materials contained in its Flotrex GF pleated filters meet US FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact GE technical services. Flotrex GF filters meet the test criteria for USP Class VI-121ºC Plastics.Aqueous extracts from Flotrex GF filters contain less than 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues.GE Filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.The Flotrex-GF 1.0 micron filter has been tested according to ANSI/NSF Standard 53 for reduction of the substances listed below. The concentration of the indicated substances entering the filter was reduced to a concentration less than or equal to the permissible limits for leaving the filter, as specified in ANSI/NSF Standard 53. Testing was performed under standard laboratory conditions. Actual performance may vary. Table 5 shows ANSI/NSF Standard 53 standards used in the performance testing.

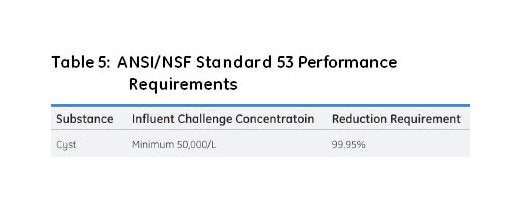

Ansinsf Standard 53 Performance Requirements Influent Challenge
Minimum 50000/L
Ansinsf Standard 53 Performance Requirements Reduction Requireme
99.95%
Ansinsf Standard 53 Performance Requirements Substance
Cyst
Applications 0
Flotrex GF filters are specifically designed for high throughput and long service life. Typical applications include:Final Filtration for Bottled WaterPrefiltration of Pharmaceuticals and BiologicalsCosmetic Oil, Gel and Shampoo FiltrationBeverage ClarificationPaints and CoatingsInk
Dimensions Effective Filtration Area
4 ft² | 0 m²
Dimensions Filter Model
FGF94
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0
Flotrex GF filters are available the following absolute pore size micron ratings: 0.45 and 3.0 µm and 1.0 um which is NSF Standard 53 certified. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, operational limits and flow performance in air and water.

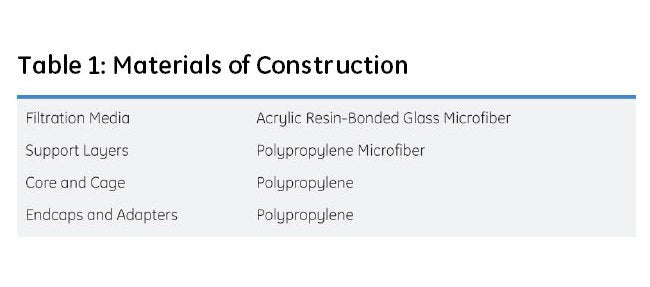

MATERIALS OF CONSTRUCTION CORE AND CAGE
Polypropylene
Materials Of Construction Endcaps And Adapters
Polypropylene
Materials Of Construction Filtration Media
Acrylic Resin-Bonded Glass Microfiber
Materials Of Construction Support Layers
Polypropylene Microfiber
Operational Limits Maximum Forward Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 10 Psid 069
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure 70f 21c
30 psi | 2.1 bar
Specifications Absolute Micron Rating
0.45 µm
Specifications Elastomer Material
Buna-N | EPDM | PTFE Encapsulated Viton | Silicone | Viton

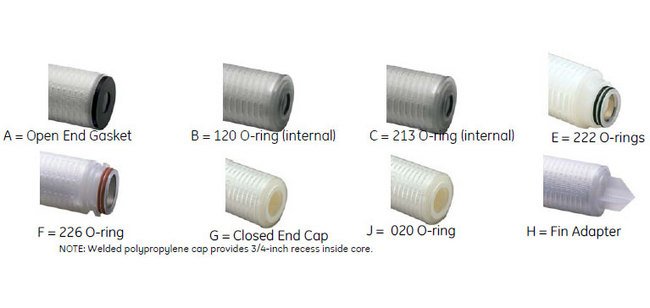

Specifications End 1 Adapter
222 O-Ring Stainless Steel Insert
Specifications End 2 Adapter
213 O-Ring
Specifications Nominal Cartridge Length
40 in | 102 cm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries
Specifications Type
FGF
