GE Flotrex GF Pleated Glass Microfiber Filters
GE Flotrex GF Pleated Glass Microfiber Filters
SKU:PLE-e25727
GE Flotrex GF Filters: Absolute-rated glass microfiber filters removing Cryptosporidium & Giardia cysts. NSF 53 certified & FDA compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
GE Flotrex GF Pleated Glass Microfiber Filters
$59.99
Quantity: 1
Claim Your Seller Account
GE Flotrex GF Pleated Glass Microfiber Filters
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

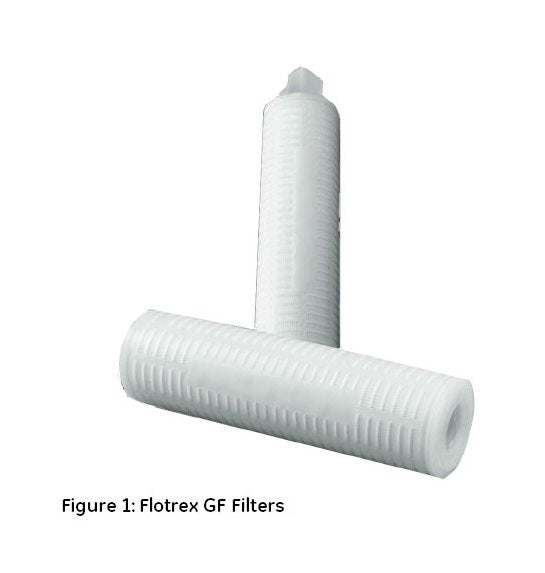

The GE Flotrex GF Pleated Glass Microfiber Filters are absolute rated filters designed for efficient removal of Cryptosporidium and Giardia cysts, meeting International Bottled Water Association standards. With a 1.0-micron absolute rating and NSF International Standard 53 certification, these filters offer dependable final filtration, making them ideal for various applications. They are constructed with materials meeting FDA requirements, ensuring food contact safety, and are autoclavable for sterilization needs. GE Flotrex GF filters are versatile and tailored for high throughput, offering long service life and exceptional performance for bottled water, pharmaceuticals, cosmetics, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Flotrex GF filters may be autoclaved or in situ steam sterilized (up to 257ºF [125ºC] 30-minute cycles) for a maximum accumulated exposure of 10 hours. Alternatively, the filters may be sanitized with compatible chemical agents.GE certifies that the materials contained in its Flotrex GF pleated filters meet US FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact GE technical services. Flotrex GF filters meet the test criteria for USP Class VI-121ºC Plastics.Aqueous extracts from Flotrex GF filters contain less than 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues.GE Filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.The Flotrex-GF 1.0 micron filter has been tested according to ANSI/NSF Standard 53 for reduction of the substances listed below. The concentration of the indicated substances entering the filter was reduced to a concentration less than or equal to the permissible limits for leaving the filter, as specified in ANSI/NSF Standard 53. Testing was performed under standard laboratory conditions. Actual performance may vary. Table 5 shows ANSI/NSF Standard 53 standards used in the performance testing.

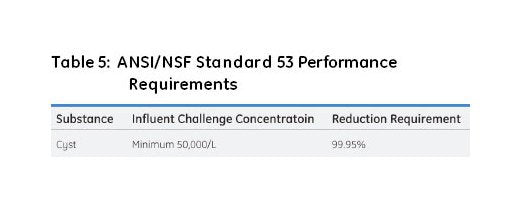

Ansinsf Standard 53 Performance Requirements Influent Challenge
Minimum 50000/L
Ansinsf Standard 53 Performance Requirements Reduction Requireme
99.95%
Ansinsf Standard 53 Performance Requirements Substance
Cyst
Applications 0
Flotrex GF filters are specifically designed for high throughput and long service life. Typical applications include:Final Filtration for Bottled WaterPrefiltration of Pharmaceuticals and BiologicalsCosmetic Oil, Gel and Shampoo FiltrationBeverage ClarificationPaints and CoatingsInk
Dimensions Effective Filtration Area
4 ft² | 0 m²
Dimensions Filter Model
FGF94
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0
Flotrex GF filters are available the following absolute pore size micron ratings: 0.45 and 3.0 µm and 1.0 um which is NSF Standard 53 certified. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, operational limits and flow performance in air and water.

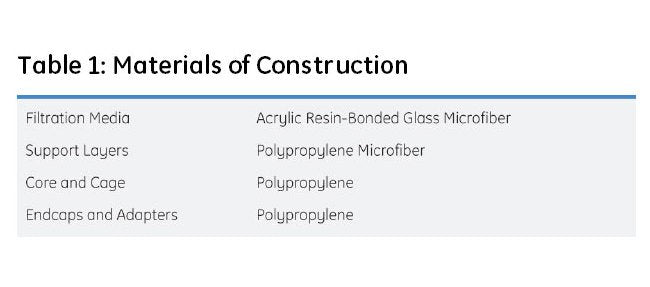

MATERIALS OF CONSTRUCTION CORE AND CAGE
Polypropylene
Materials Of Construction Endcaps And Adapters
Polypropylene
Materials Of Construction Filtration Media
Acrylic Resin-Bonded Glass Microfiber
Materials Of Construction Support Layers
Polypropylene Microfiber
Operational Limits Maximum Forward Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 10 Psid 069
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure 70f 21c
30 psi | 2.1 bar
Specifications Absolute Micron Rating
0.45 µm
Specifications Elastomer Material
Buna-N | EPDM | PTFE Encapsulated Viton | Silicone | Viton
Specifications End 1 Adapter
222 O-Ring
Specifications End 2 Adapter
Closed End Cap
Specifications Nominal Cartridge Length
40 in | 102 cm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries
Specifications Type
FGF
