GE Flotrex HR Pleated Filters with Halar Microfiber
GE Flotrex HR Pleated Filters with Halar Microfiber
SKU:PLE-d36272
High-performance GE Flotrex HR Pleated Filters with Halar Microfiber for demanding filtration applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
GE Flotrex HR Pleated Filters with Halar Microfiber
$49.99
Quantity: 1
Claim Your Seller Account
GE Flotrex HR Pleated Filters with Halar Microfiber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

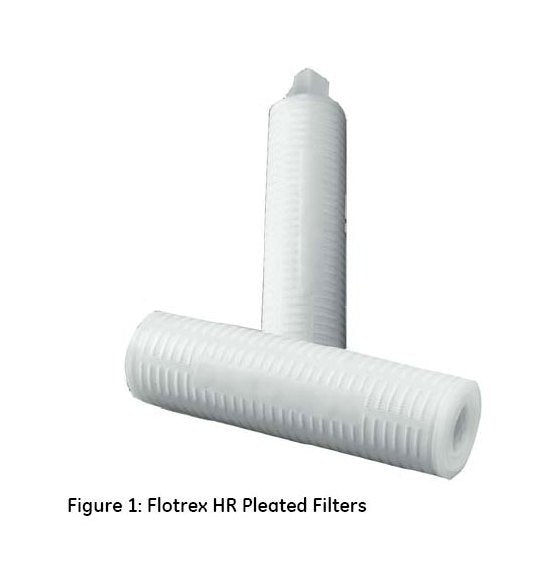

The GE Flotrex HR Pleated Filters with Halar Microfiber are meticulously designed for exceptional solvent resistance and chemical compatibility, ensuring reliable performance in the most demanding filtration applications. With absolute rated efficiencies and retention capabilities that surpass polypropylene filters, these filters offer high flow rates and superior purity results. Engineered with all-Halar construction, including the media material, support layers, core, and cage, these filters are ozone-tolerant and can withstand harsh chemical environments. Ideal for applications such as filtration of aggressive chemicals and ozonated water, these filters are manufactured in a cleanroom for ensured cleanliness.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Flotrex-HR filters may be sanitized with compatible chemical agents such as ozonated water. The filters must not be autoclaved or steam sterilized.Flotrex-HR filters meet the test criteria for USP24 class VI-121ºC plastics and pass the MEM Elution Cytotoxicity Test.Aqueous extracts from Flotrex-HR filters contains less than 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues. FHR filters are ozone tolerant for 9,000 ppm/hr with no extractables.
Dimensions Effective Filtration Area
8 ft² | 1 m²
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0

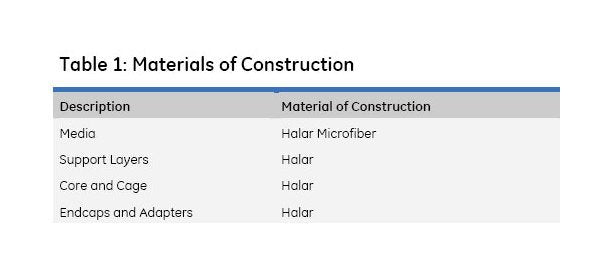

Flotrex-HR filters are available the following absolute pore size micron ratings: 3, 10 and 25 µm. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, operational limits and flow performance.
MATERIALS OF CONSTRUCTION CORE AND CAGE
Halar
Materials Of Construction Endcaps And Adapters
Halar
Materials Of Construction Media Material
Halar Microfiber
Materials Of Construction Support Layers
Halar
Operational Limits Maximum Forward Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 10 Psid 069
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure 70f 21c
30 psi | 2.1 bar
Specifications Absolute Micron Rating
10 µm
Specifications Elastomer Material
Viton
Specifications End 1 Adapter
222 O-Ring
Specifications End 2 Adapter
Open End Gasket
Specifications Nominal Cartridge Length
30 in | 76 cm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries
Specifications Type
FHR
Applications 0
FHR all-Halar, melt-blown fiber filters offer outstanding performance in extremely harsh chemical environments. These FHR filters also provide cost-effective, absolute filtration at high flow rates. Available in a range of 3, 10 and 25 µm, FHR filters are manufactured and packaged in a cleanroom environment for assured cleanliness. FHR filters are designed for both pre- and final filtration. Typical applications include:Filtration of aggressive chemicals including Toluene and XyleneFiltration of Ozonated WaterBeverage
