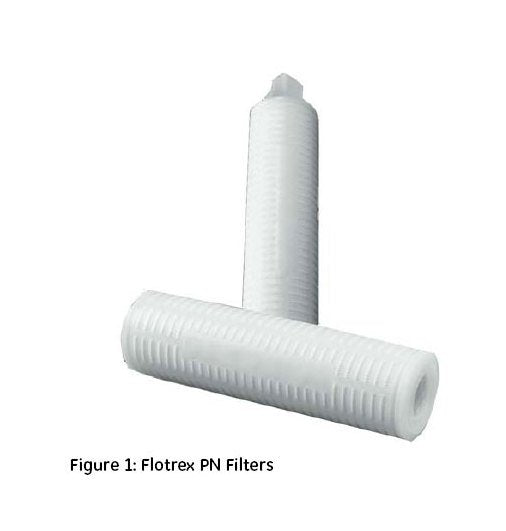

The GE Flotrex PN Pleated Filters with Polypropylene Microfiber Media offer superior chemical compatibility and reliable filtration performance. These filters feature an all polypropylene construction, gradient density media, and excellent dirt holding capacities. With an economical solution for a broad range of applications, these filters are a cost-effective alternative to membrane filters, suitable for liquid polymers, bulk chemicals, coatings, inks, and more. GE certifies compliance with U.S. FDA regulations for food contact, USP class VI standards, and low extractable levels. Ensure quality filtration with GE Flotrex PN Pleated Filters.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Flotrex PN filters may be autoclaved or in situ steam sterilized (up to 257ºF [125ºC], 30-minute cycles) for a maximum accumulated exposure of 10 hours. Alternately, the filters may be sanitized with compatible chemical agents.GE certifies that the material contained in its Flotrex PN pleated filters meet U.S. FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact GE technical services. Flotrex PN filters meet the test criteria for USP class VI- 121ºC Plastics.Aqueous extracts from Flotrex PN filters contain less that 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues.GE filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.
Dimensions Effective Filtration Area
6 ft² | 1 m²
Dimensions Filter Model
FPN94
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0

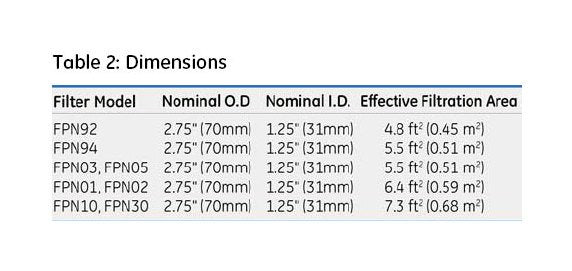

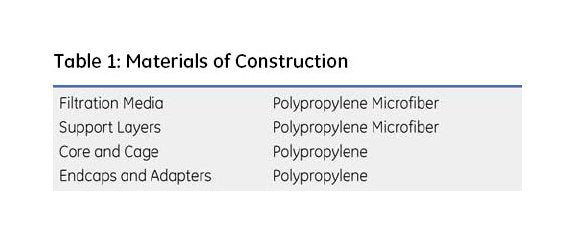

Flotrex PN filters are available in the following nominal pore size micron rating: 0.2, 0.45, 1, 2, 3, 5, 10 and 30 µm. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, operational limits and flow performance.
MATERIALS OF CONSTRUCTION CORE AND CAGE
Polypropylene
Materials Of Construction Endcaps And Adapters
Polypropylene
Materials Of Construction Filtration Media
Polypropylene Microfiber
Materials Of Construction Support Layers
Polypropylene Microfiber
Operational Limits Maximum Forward Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 10 Psid 069
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure 70f 21c
30 psi | 2.1 bar
Specifications Elastomer Material
Buna-N | EPDM | PTFE | Silicone | Viton
Specifications End 1 Adapter
226 O-Ring
Specifications End 2 Adapter
120 O-Ring | 213 O-Ring | Closed End Cap | Fin Adapter | Open End Gasket
Specifications Nominal Cartridge Length
40 in | 102 cm
Specifications Nominal Micron Rating
0.45 µm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries
Specifications Type
FPN
Applications 0
FPN filters are an economical alternative to membrane filters in a broad range of applications, Including:Filtration of liquid polymers, coatings, and inksFiltration of bulk chemicalsBeer trap filtrationPost Carbon bed and DI bed filtrationPre-filtration to protect expensive final filters
