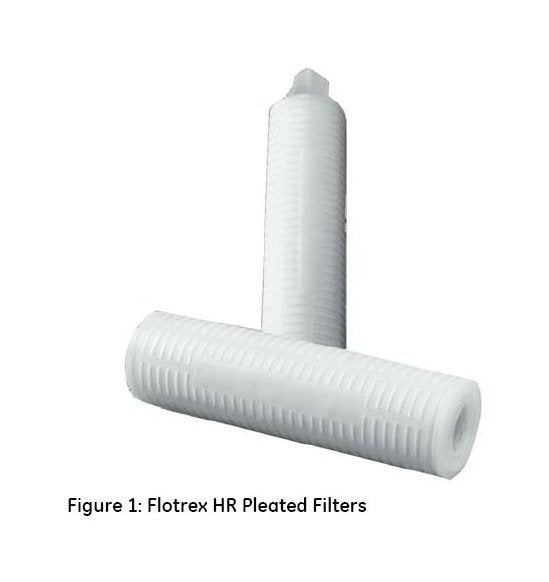

GE Flotrex™ HR Pleated Filters with Halar Microfiber

GE Flotrex™ HR Pleated Filters with Halar Microfiber

PLE-c29d03

GE Flotrex™ HR Pleated Filters with Halar Microfiber deliver superior solvent resistance and 99.9% filtration efficiency for high-purity results in demanding applications.

$49.99
$49.99
Sale

Initiate Order

GE Flotrex™ HR Pleated Filters with Halar Microfiber

GE Flotrex™ HR Pleated Filters with Halar Microfiber

$49.99

Quantity: 1

Claim Your Seller Account

GE Flotrex™ HR Pleated Filters with Halar Microfiber

GE Flotrex™ HR Pleated Filters with Halar Microfiber

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your filtration processes with GE Flotrex™ HR Pleated Filters made from Halar microfiber, providing unmatched solvent resistance and durability. With absolute 99.9% filtration efficiency, these filters deliver high flow rates, chemical compatibility, and retention characteristics ideal for demanding applications. GE Water & Process Technologies offers a complete range of filters for diverse processing needs, ensuring consistent and high-purity results.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information 0
Flotrex-HR filters may be sanitized with compatible chemical agents such as ozonated water. The filters must not be autoclaved or steam sterilized.Flotrex-HR filters meet the test criteria for USP24 class VI-121ºC plastics and pass the MEM Elution Cytotoxicity Test.Aqueous extracts from Flotrex-HR filters contains less than 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues. FHR filters are ozone tolerant for 9,000 ppm/hr with no extractables.
Dimensions Effective Filtration Area
8 ft² | 1 m²
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0
Flotrex-HR filters are available the following absolute pore size micron ratings: 3, 10 and 25 µm. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, operational limits and flow performance.

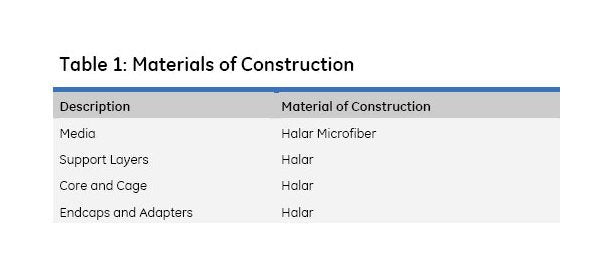

MATERIALS OF CONSTRUCTION CORE AND CAGE
Halar
Materials Of Construction Endcaps And Adapters
Halar
Materials Of Construction Media Material
Halar Microfiber
Materials Of Construction Support Layers
Halar
Operational Limits Maximum Forward Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 10 Psid 069
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure 70f 21c
30 psi | 2.1 bar
Specifications Absolute Micron Rating
25 µm
Specifications Elastomer Material
Viton
Specifications End 1 Adapter
Open End Gasket
Specifications End 2 Adapter
Fin Adapter
Specifications Nominal Cartridge Length
10 in | 25 cm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries
Specifications Type
FHR
Applications 0
FHR all-Halar, melt-blown fiber filters offer outstanding performance in extremely harsh chemical environments. These FHR filters also provide cost-effective, absolute filtration at high flow rates. Available in a range of 3, 10 and 25 µm, FHR filters are manufactured and packaged in a cleanroom environment for assured cleanliness. FHR filters are designed for both pre- and final filtration. Typical applications include:Filtration of aggressive chemicals including Toluene and XyleneFiltration of Ozonated WaterBeverage
