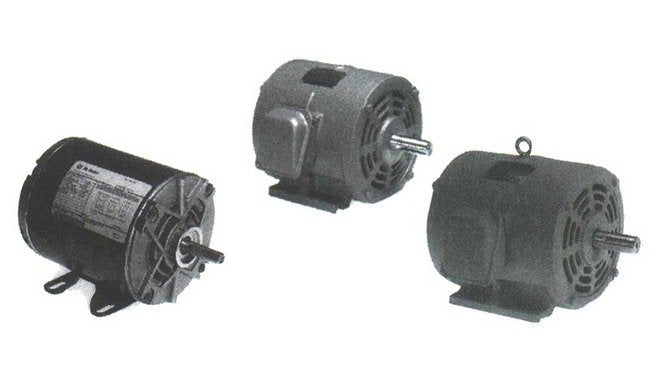

GE General Purpose AC Motor - High Efficiency

Name: GE General Purpose AC Motor - High Efficiency
Brand: Gainesville Industrial Electric Co.
SKU: ELE-92033b
Price: 1899.99 USD
Availability: OutOfStock

SKU:ELE-92033b

Discover the high-efficiency GE General Purpose AC Motor - ideal for diverse industrial applications.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GE General Purpose AC Motor is a top-tier solution for diverse applications, boasting exceptional efficiency and reliability. Compliant with MG1-31 standards at 460 volts, this motor features a sturdy cast iron construction in frames 182 through 449. With ball bearings and EPAct efficiency levels, it offers versatility with Open Dripproof (ODP) and Totally Enclosed Fan Cooled (TEFC) options. Designed for moderate to high starting torques, this motor is perfect for a wide range of industrial settings.

Product Specifications

Applications 0

Designed for general purpose applications with moderate to high starting torques. Moderate to high starting torques.

Specifications Base

Ftd

Specifications Category

EPACT/General Purpose

Specifications C Dimension

29.7

Specifications Full Load Ampere Fla Np

47.9 amps

Specifications Manufacturer

GE Motors and Controls

Specifications Motor Code

Specifications Motor Type

Base Mounted

Specifications Multiplier Symbol

G7-7DPE

Specifications Nema Frame

364T

Specifications Nominal Efficiency

Specifications Normally Stocked

Specifications Number Of Phase

Three Phase

Specifications Service Factor Sf

1.15

Specifications Style

Dripproof

Specifications Voltage

460 volts

Specifications Weight

950 lbs

GE General Purpose AC Motor - High Efficiency
