GE Selex Depth Cartridge Filters - 30 Micron, Polypropylene Construction
GE Selex Depth Cartridge Filters - 30 Micron, Polypropylene Construction
SKU:DEP-7f4d49
The GE Selex Depth Cartridge Filter: High Precision, 30µm Rating, Polypropylene Construction. Ideal for Diverse Industrial Applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
GE Selex Depth Cartridge Filters - 30 Micron, Polypropylene Construction
$49.99
Quantity: 1
Claim Your Seller Account
GE Selex Depth Cartridge Filters - 30 Micron, Polypropylene Construction
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

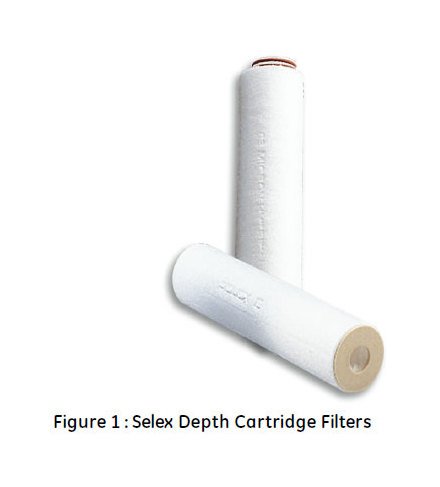

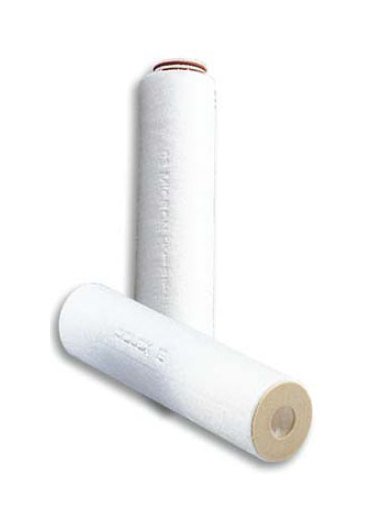

The GE Selex Depth Cartridge Filter combines high precision graded density with 100% pure polypropylene construction. With an absolute micron rating of 30µm, it delivers exceptional particle retention efficiency comparable to absolute rated filters. The patented manufacturing process ensures precise density and fiber size, guaranteeing superior performance and longevity. Ideal for applications in Magnetic Media, Photographic, Petrochemicals, Chemical Process Industry, Pure Water, Food and Beverage, Metal Finishing, Potable Water, Pharmaceuticals, and Oil and Gas industries. Certified by GE Water & Process Technologies to meet FDA regulations, these filters offer weld-free lengths up to 40 inches, Santoprene gaskets, and a range of O-Ring materials for chemical resistance and wide compatibility.
Product Specifications
Additional Information 0
Selex depth cartridge filters are made from thermally- bonded fibers of polypropylene. GE Water & Process Technologies certifies that it uses no resin binders, lubricants, antistatic or release agents or other additives in the manufacture of these cartridges, and that the resin used for manufacturing the filter media meets the food contact requirements of the U.S. FDA 21CFR regulations.When required, specify only FDA compliant sealing materials and end adapters.GE filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.
General Properties 0
Selex filters are available the following absolute pore size micron ratings: 1, 3, 5, 10, 20 and 30 microns. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, flow performance and performance specifications.

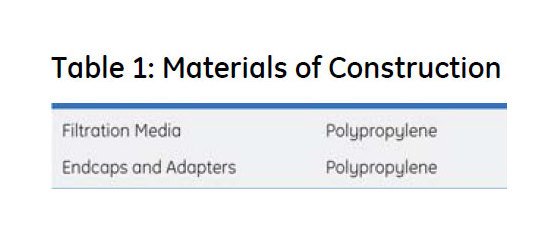

Materials Of Construction Endcaps And Adapters
Polypropylene
Materials Of Construction Filtration Media
Polypropylene
Note 0
Removal efficiencies are reported for a given particle size, i.e. an efficiency of 99% at 3 microns means that the filter removes 99% of the particles that are 3 microns in size.The Beta Ratio (β) is calculated as a measure of efficiency for all particles equal to or larger than the given micron size. A Beta Ratio (β) of 5000 represents the removal of 99.98% of all particles equal to or larger than the given micron size.Trademark of General Electric Company; may be registered in one or more countries.
Performance Specification For General Applications Removal Ratin
24.2
Performance Specification For General Applications Selex Grade
F
Specifications Absolute Micron Rating
30 µm
Specifications End 1 Adapter
1 inch (25.4 cm) Open End Gasket | 222 O-Ring | 226 O-Ring | Extended Care | Standard Plain End
Specifications End 2 Adapter
1 inch (25.4 cm) Open End Gasket | Fin | Self Seal Spring | Solid End
Specifications Gasket Material
Santoprene
Specifications Maximum Operating Temperature
140 ºF | 60 ºC
Specifications Nominal Cartridge Length
29 1/4 in | 74.3 cm

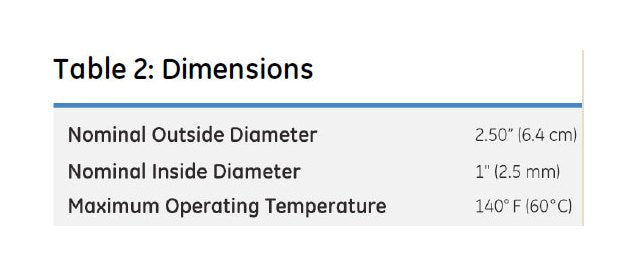

Specifications Nominal Inside Diameter
1 in | 2.5 mm
Specifications Nominal Outside Diameter
2.50 in | 6.4 cm
Specifications O Rings Material
Buna | EPDM | Silicone | Viton
Specifications Type
SXF
Applications 0
Magnetic Media (CMP) - solvents, slurry/dispersion, Pre-Filter and Final Filter at CoaterPhotographic - Incoming Water, Liquid Chemicals, Developer, Fixer, Stopper SolutionsPetrochemicals - Waterflood, Completion, Enhanced Oil Recovery, AminesChemical Process Industry - Reagent Grade Chemicals, Process WaterPure Water - Pre-RO, Post- DI Resin TrapFood and Beverage - Clarification, Process Water, Polishing FilterMetal Finishing - Electrodeposition Paint, Precision ElectroplatingPotable Water- Polishing Filter, Giardia RemovalPharmaceuticals - Clarify Production Broths, PrefiltrationOil and gas - well protection
