GE Selex Depth Cartridge Filters
GE Selex Depth Cartridge Filters
SKU:DEP-692b7c
High-precision GE Selex Depth Cartridge Filters for optimal particle retention and purity in various industries. Made of 100% polypropylene with FDA compliance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
GE Selex Depth Cartridge Filters
$49.99
Quantity: 1
Claim Your Seller Account
GE Selex Depth Cartridge Filters
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

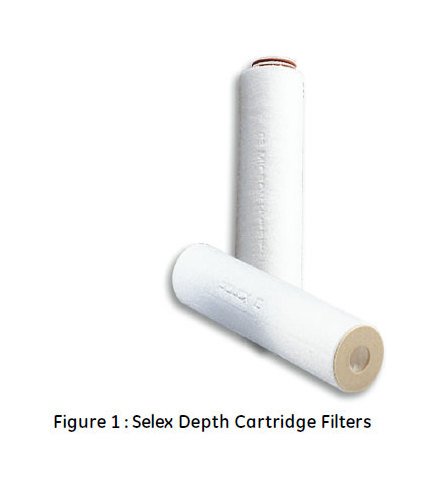

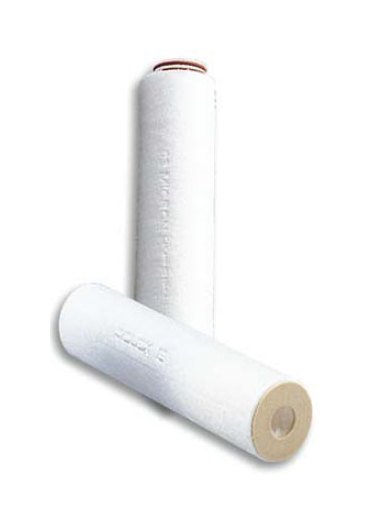

The GE Selex Depth Cartridge Filters are high precision graded density cartridges made of 100% pure polypropylene, offering exceptional particle retention efficiency comparable to absolute rated filters. These filters feature a patented manufacturing process ensuring precise density and fiber size, leading to optimal performance and extended lifespan. With a sharp efficiency cutoff, fast rinse-up for purity, and continuous lengths of up to 40 inches, these filters are ideal for applications in various industries such as magnetic media, pharmaceuticals, petrochemicals, and food and beverage. Notably, the filters are constructed without resin binders or additives, meeting FDA regulations for food contact requirements. GE Selex filters are compatible with a wide range of chemical solutions, emphasizing durability and reliability.
Product Specifications
Additional Information 0
Selex depth cartridge filters are made from thermally- bonded fibers of polypropylene. GE Water & Process Technologies certifies that it uses no resin binders, lubricants, antistatic or release agents or other additives in the manufacture of these cartridges, and that the resin used for manufacturing the filter media meets the food contact requirements of the U.S. FDA 21CFR regulations.When required, specify only FDA compliant sealing materials and end adapters.GE filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.
General Properties 0

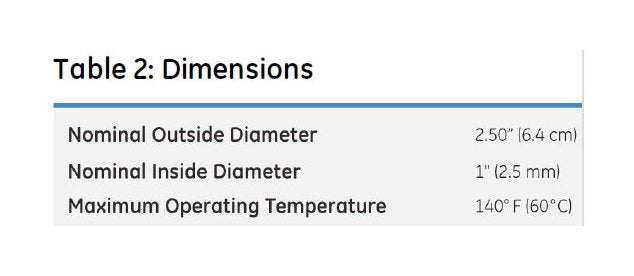

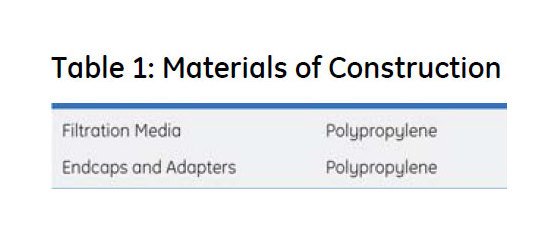

Selex filters are available the following absolute pore size micron ratings: 1, 3, 5, 10, 20 and 30 microns. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, flow performance and performance specifications.
Materials Of Construction Endcaps And Adapters
Polypropylene
Materials Of Construction Filtration Media
Polypropylene
Note 0
Removal efficiencies are reported for a given particle size, i.e. an efficiency of 99% at 3 microns means that the filter removes 99% of the particles that are 3 microns in size.The Beta Ratio (β) is calculated as a measure of efficiency for all particles equal to or larger than the given micron size. A Beta Ratio (β) of 5000 represents the removal of 99.98% of all particles equal to or larger than the given micron size.Trademark of General Electric Company; may be registered in one or more countries.
Performance Specification For Critical Applications Removal Rati
3.0
Performance Specification For General Applications Removal Ratin
2.0
Performance Specification For General Applications Selex Grade
G
Specifications Absolute Micron Rating
3.0 µm
Specifications End 1 Adapter
1 inch (25.4 cm) Open End Gasket | 222 O-Ring | 226 O-Ring | Extended Care | Standard Plain End
Specifications End 2 Adapter
1 inch (25.4 cm) Open End Gasket | Fin | Self Seal Spring | Solid End
Specifications Gasket Material
Santoprene
Specifications Maximum Operating Temperature
140 ºF | 60 ºC
Specifications Nominal Cartridge Length
20 in | 50.8 cm
Specifications Nominal Inside Diameter
1 in | 2.5 mm
Specifications Nominal Outside Diameter
2.50 in | 6.4 cm
Specifications O Rings Material
Buna | EPDM | Silicone | Viton
Specifications Type
SXG
Applications 0
Magnetic Media (CMP) - solvents, slurry/dispersion, Pre-Filter and Final Filter at CoaterPhotographic - Incoming Water, Liquid Chemicals, Developer, Fixer, Stopper SolutionsPetrochemicals - Waterflood, Completion, Enhanced Oil Recovery, AminesChemical Process Industry - Reagent Grade Chemicals, Process WaterPure Water - Pre-RO, Post- DI Resin TrapFood and Beverage - Clarification, Process Water, Polishing FilterMetal Finishing - Electrodeposition Paint, Precision ElectroplatingPotable Water- Polishing Filter, Giardia RemovalPharmaceuticals - Clarify Production Broths, PrefiltrationOil and gas - well protection
