GE Selex Depth Cartridge Filters SXE 1.0µm

Name: GE Selex Depth Cartridge Filters SXE 1.0µm
Brand: Pargreen Process Technologies
SKU: DEP-debce3
Price: 29.99 USD
Availability: OutOfStock

SKU:DEP-debce3

High precision GE Selex Depth Cartridge Filters SXE 1.0µm for absolute filtration efficiency in critical applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

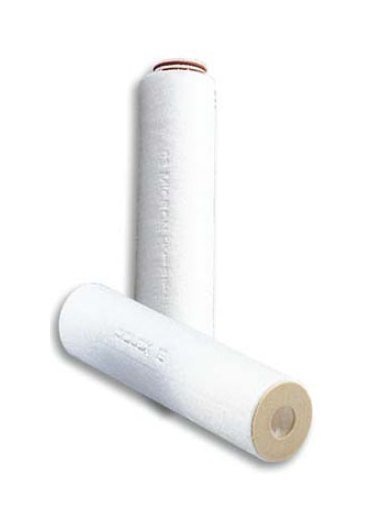

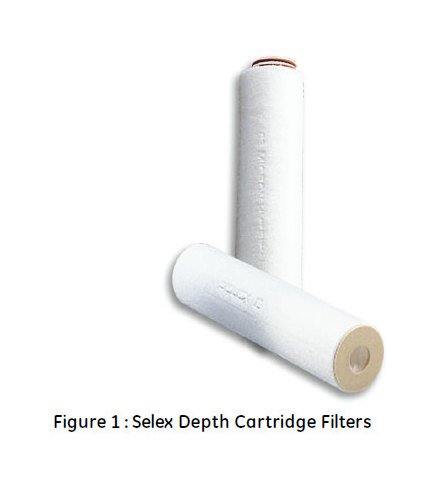

The GE Selex Depth Cartridge Filters SXE 1.0µm are precision graded density filters made of 100% pure polypropylene, delivering high particle retention efficiency equivalent to absolute rated filters. With a patented manufacturing process ensuring optimal density and fiber size control, these filters offer sharp efficiency cutoff, fast rinse up for superior purity, and seamless, weld-free lengths up to 40 inches. Ideal for critical applications, these filters meet strict performance specifications with removal ratings as low as 0.5µm at 90% efficiency, ensuring exceptional filtration in various industries from pharmaceuticals to petrochemicals.

Product Specifications

Additional Information 0

Selex depth cartridge filters are made from thermally- bonded fibers of polypropylene. GE Water & Process Technologies certifies that it uses no resin binders, lubricants, antistatic or release agents or other additives in the manufacture of these cartridges, and that the resin used for manufacturing the filter media meets the food contact requirements of the U.S. FDA 21CFR regulations.When required, specify only FDA compliant sealing materials and end adapters.GE filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.

General Properties 0

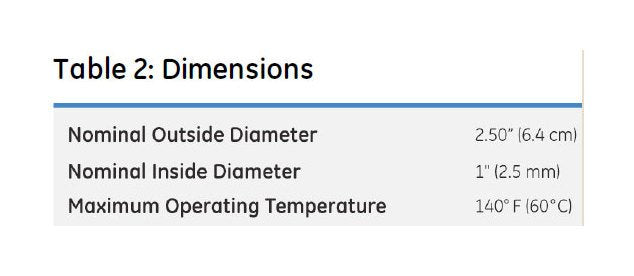

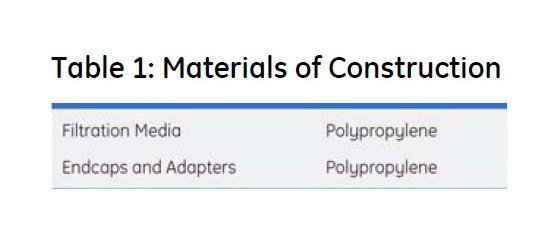

Selex filters are available the following absolute pore size micron ratings: 1, 3, 5, 10, 20 and 30 microns. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, flow performance and performance specifications.

Materials Of Construction Endcaps And Adapters

Polypropylene

Materials Of Construction Filtration Media

Polypropylene

Note 0

Removal efficiencies are reported for a given particle size, i.e. an efficiency of 99% at 3 microns means that the filter removes 99% of the particles that are 3 microns in size.The Beta Ratio (Î²) is calculated as a measure of efficiency for all particles equal to or larger than the given micron size. A Beta Ratio (Î²) of 5000 represents the removal of 99.98% of all particles equal to or larger than the given micron size.Trademark of General Electric Company; may be registered in one or more countries.

Performance Specification For Critical Applications Removal Rati

1.8

Performance Specification For General Applications Removal Ratin

1.0

Performance Specification For General Applications Selex Grade

Specifications Absolute Micron Rating

1.0 Âµm

Specifications End 1 Adapter

1 inch (25.4 cm) Open End Gasket | 222 O-Ring | 226 O-Ring | Extended Care | Standard Plain End

Specifications End 2 Adapter

1 inch (25.4 cm) Open End Gasket | Fin | Self Seal Spring | Solid End

Specifications Gasket Material

Santoprene

Specifications Maximum Operating Temperature

140 ÂºF | 60 ÂºC

Specifications Nominal Cartridge Length

19 1/2 in | 49.5 cm

Specifications Nominal Inside Diameter

1 in | 2.5 mm

Specifications Nominal Outside Diameter

2.50 in | 6.4 cm

Specifications O Rings Material

Buna | EPDM | Silicone | Viton

Specifications Type

SXE

Applications 0

Magnetic Media (CMP) - solvents, slurry/dispersion, Pre-Filter and Final Filter at CoaterPhotographic - Incoming Water, Liquid Chemicals, Developer, Fixer, Stopper SolutionsPetrochemicals - Waterflood, Completion, Enhanced Oil Recovery, AminesChemical Process Industry - Reagent Grade Chemicals, Process WaterPure Water - Pre-RO, Post- DI Resin TrapFood and Beverage - Clarification, Process Water, Polishing FilterMetal Finishing - Electrodeposition Paint, Precision ElectroplatingPotable Water- Polishing Filter, Giardia RemovalPharmaceuticals - Clarify Production Broths, PrefiltrationOil and gas - well protection

GE Selex Depth Cartridge Filters SXE 1.0µm
