GE Self Ventilated DC Motor - Shunt Wound Type C Power Supply

Name: GE Self Ventilated DC Motor - Shunt Wound Type C Power Supply
Brand: Gainesville Industrial Electric Co.
SKU: ELE-53970d
Price: 3999.99 USD
Availability: OutOfStock

SKU:ELE-53970d

Powerful GE Self Ventilated DC Motor designed for industrial use with continuous torque, low inertia armature, and CSA approval.

$3,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

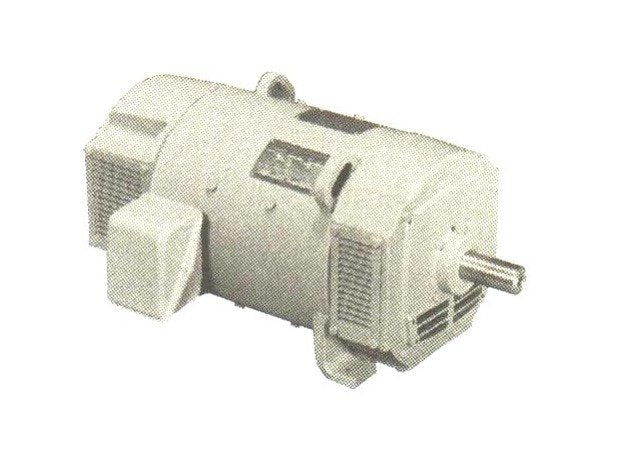

The GE Self Ventilated DC Motor, part of the GE Motors Type C Power Supply series, is a reliable and versatile motor designed for a wide range of industrial applications. With continuous rated torque to 60% of base speed, low inertia armature, and the capability to handle 150% of rated load for 60 seconds, this motor ensures optimal performance even in demanding conditions. Its self-ventilated and dripproof construction, along with CSA approval, makes it suitable for tropical climates and various industrial environments. The motor also features a normally-closed thermostat F-1 assembly, provisions for mounting tachometer kit, and constant brush pressure for reliable operation.

Product Specifications

Applications 0

ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling

Specifications Arm Current

99 amps

Specifications Arm Voltage

500 volts

Specifications Category

Specifications C Dimension

40.1

Specifications Field Current

1.3 amps | 3 amps

Specifications Field Voltage

150 volts | 300 volts

Specifications Manufacturer

GE Motors and Controls

Specifications Motor Type

Type C Power Supply

Specifications Multiplier Symbol

GO-2AS

Specifications Nema Frame

407AT

Specifications Normally Stocked

Yes

Specifications Style

Shunt Wound - Dripproof Fully Guarded - Self Ventilated

Specifications Weight

1300 lbs

GE Self Ventilated DC Motor - Shunt Wound Type C Power Supply
