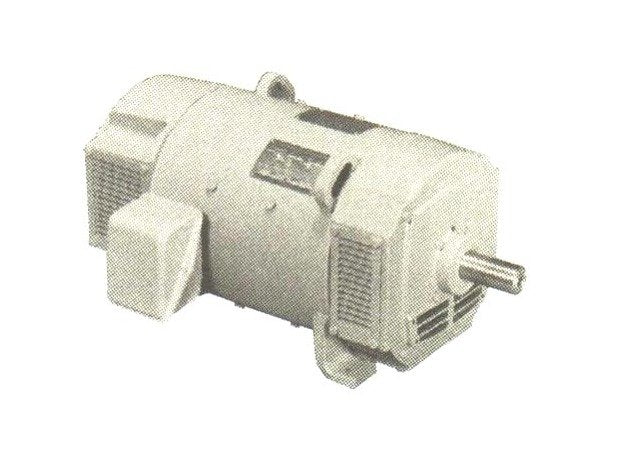

GE Self Ventilated DC Motor - Type C Power Supply
GE Self Ventilated DC Motor - Type C Power Supply
SKU:ELE-24b2bd
Reliable GE Self Ventilated DC Motor for industrial applications, CSA Approved, ideal for demanding operations.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
GE Self Ventilated DC Motor - Type C Power Supply
$5,999.99
Quantity: 1
Claim Your Seller Account
GE Self Ventilated DC Motor - Type C Power Supply
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GE Self Ventilated DC Motor, part of the GE Motors Type C Power Supply line, is a reliable and efficient motor designed for industrial applications. With continuous rated torque up to 60% base speed, constant brush pressure, and low inertia armature, this motor ensures smooth and consistent performance. Capable of handling 150% of rated load for 60 seconds, it is ideal for demanding operations. This motor is CSA Approved and features a normally-closed thermostat, F-1 assembly, and provisions for mounting a tachometer kit. Suitable for tropical climates, it meets stringent quality standards for reliable operation.
Product Specifications
Applications 0
ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling
Specifications Arm Current
319 amps
Specifications Arm Voltage
500 volts
Specifications Category
DC
Specifications C Dimension
45.7
Specifications Field Current
3.25 amps | 4.0 amps
Specifications Field Voltage
150 volts | 300 volts
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Type
Type C Power Supply
Specifications Multiplier Symbol
GO-2AS
Specifications Nema Frame
504AT
Specifications Normally Stocked
Yes
Specifications Style
Shunt Wound - Dripproof Fully Guarded - Self Ventilated
Specifications Weight
1900 lbs
