GE Self Ventilated DC Motor - Type C Power Supply
GE Self Ventilated DC Motor - Type C Power Supply
SKU:ELE-e4569f
Discover the power of GE Self Ventilated DC Motor for reliable performance and lasting durability. CSA Approved.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
GE Self Ventilated DC Motor - Type C Power Supply
$5,899.99
Quantity: 1
Claim Your Seller Account
GE Self Ventilated DC Motor - Type C Power Supply
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

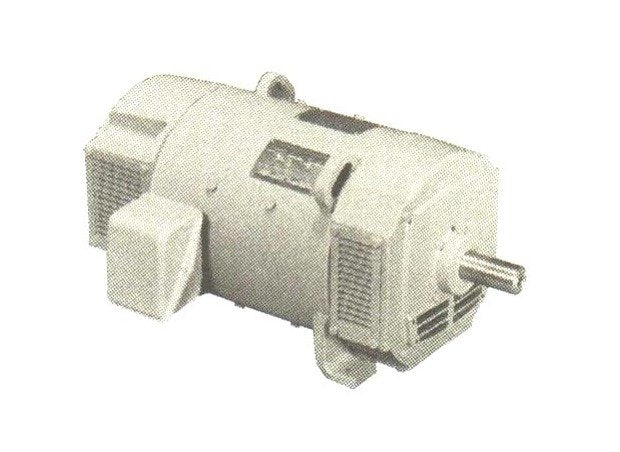

The GE Self Ventilated DC Motor, part of the GE Motors Type C Power Supply line, offers exceptional performance with continuous rated torque up to 60% base speed, low inertia armature, and the capability to handle 150% of rated load for 60 seconds. This motor ensures constant brush pressure and is suitable for tropical climates, featuring a normally-closed thermostat F-1 assembly and provisions for mounting a tachometer kit. CSA Approved for reliability and quality assurance.
Product Specifications
Applications 0
ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling
Specifications Arm Current
394 amps
Specifications Arm Voltage
500 volts
Specifications Category
DC
Specifications C Dimension
49.7
Specifications Field Current
6.68 amps | 8.0 amps
Specifications Field Voltage
150 volts | 300 volts
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Type
Type C Power Supply
Specifications Multiplier Symbol
GO-2AS
Specifications Nema Frame
506AT
Specifications Normally Stocked
Yes
Specifications Style
Shunt Wound - Dripproof Fully Guarded - Self Ventilated
Specifications Weight
2290 lbs
